AIR CONDITIONING SYSTEM AIR CONDITIONING CONTROL ASSEMBLY (For Manual Air Conditioning System): Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR VENT MODE CONTROL SWITCH
    1. Attach the 2 claws to install the mode control switch.
  2. INSTALL BLOWER CONTROL SWITCH
    1. Attach the 2 claws to install the blower control switch.
  3. INSTALL AIR MIX CONTROL SWITCH
    1. Attach the 2 claws to install the air mix control switch.
  4. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connectors.
    2. Attach the 3 clips to install the air conditioning control.
    3. Install the 2 screws.

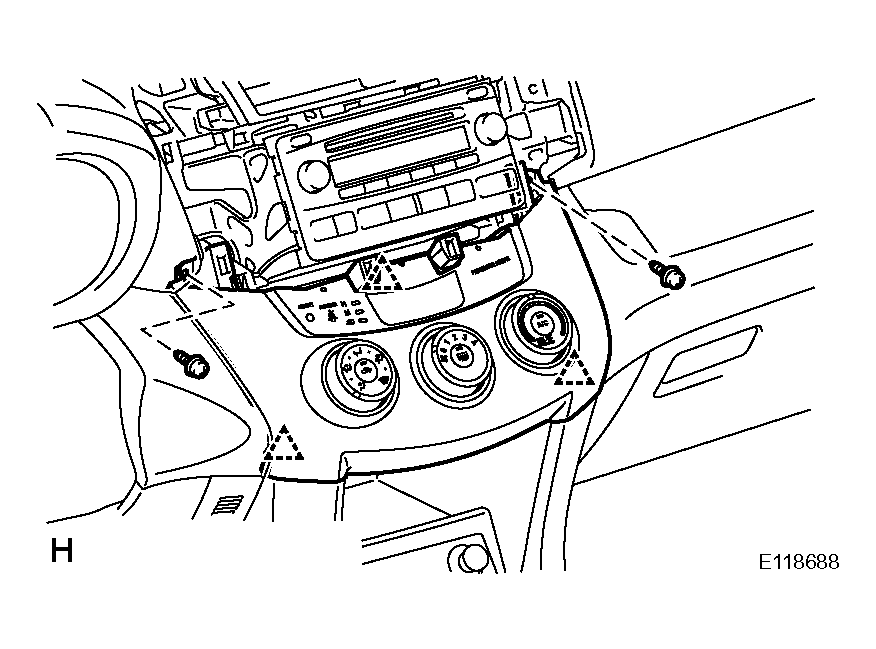

      Fig 1: Installing Air Conditioning Control Assembly (For Manual Air Conditioning System)
      G04490109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIO RECEIVER ASSEMBLY (w/Radio Receiver) (See  INSTALLATION  )
  6. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER (See  INSTALLATION  )
  7. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER (See  INSTALLATION  )
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  9. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
