AIR CONDITIONING CONTROL ASSEMBLY (For Automatic Air Conditioning System): Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connectors.
    2. Attach the 3 clips to install the air conditioning control.
    3. Install the 2 screws.
  2. INSTALL RADIO RECEIVER (See  INSTALLATION  )

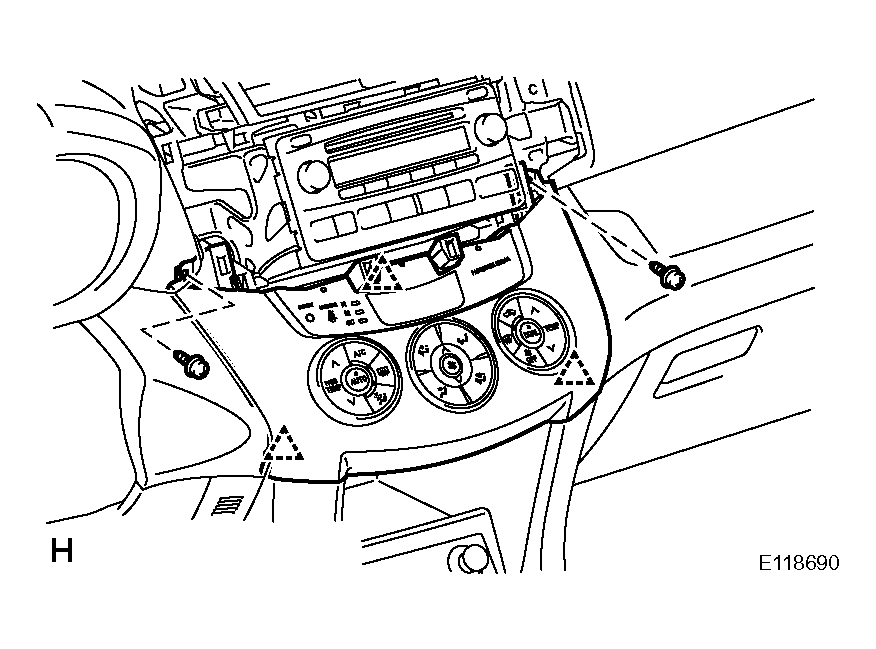

    Fig 1: Installing Air Conditioning Control Assembly
    G04490103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER (See  INSTALLATION  )
  4. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER (See  INSTALLATION  )
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
