Section 11 (Air Conditioning): Condenser: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

HINT:

At the time of installation, perform initialization (see INITIALIZATION ).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
DISCHARGE REFRIGERANT FROM REFRIGERANT SYSTEM (See REPLACEMENT )
REMOVE A/T OIL COOLER ASSEMBLY (See REMOVAL )
REMOVE ENGINE UNDER COVER (See REMOVAL )
REMOVE DISCHARGE TUBE
1. Remove the bolt and disconnect the discharge tube from condenser.
  Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)
2. Loosen the nut and remove the discharge tube.
  Torque: 22 N*m (225 kgf*cm, 16 ft.*lbf)

  NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

  HINT:

  At the time of installation, lubricate 2 new O-rings with compressor oil and install them on the discharge tube.

  Fig 1: Disconnecting Discharge Tube From Condenser
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

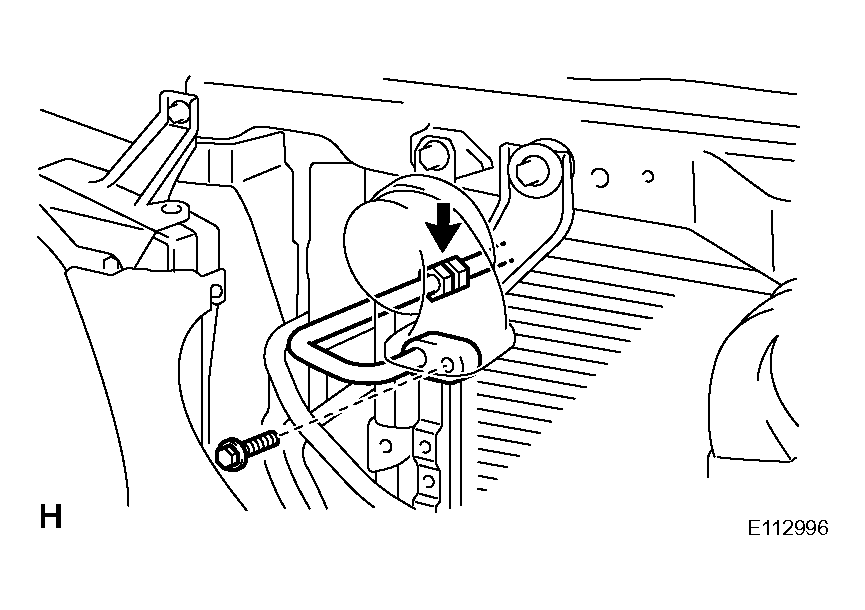

DISCONNECT LIQUID TUBE
1. Remove the bolt and disconnect the liquid tube.
  Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

  NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

  HINT:

  At the time of installation, lubricate a new O-ring with compressor oil and install them on the liquid tube.

  Fig 2: Disconnecting Liquid Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLER CONDENSER ASSEMBLY

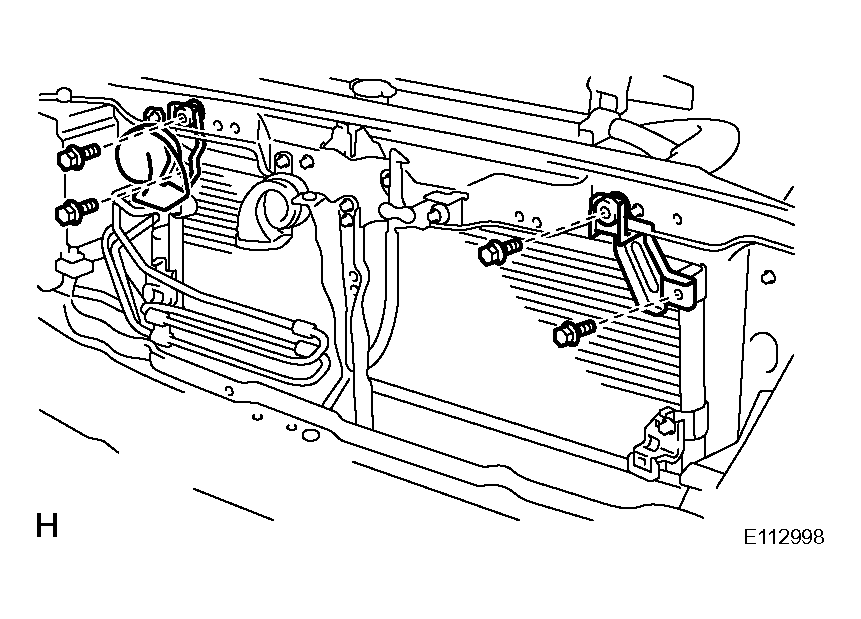

1. Remove the 4 bolts and 2 upper brackets.

  Fig 3: Removing Bolts & Upper Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

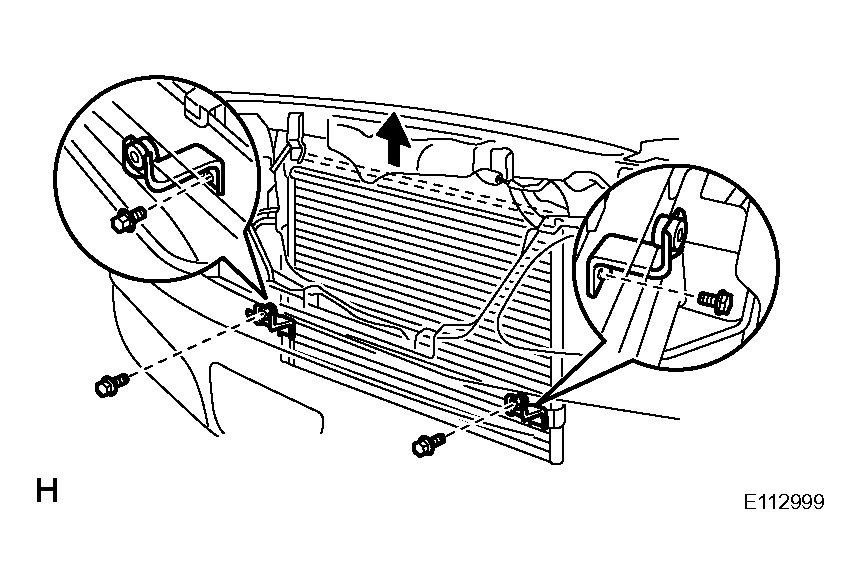

2. Lift up the condenser, then remove the 4 bolts and 2 lower brackets.

  Fig 4: Removing Bolts & Lower Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

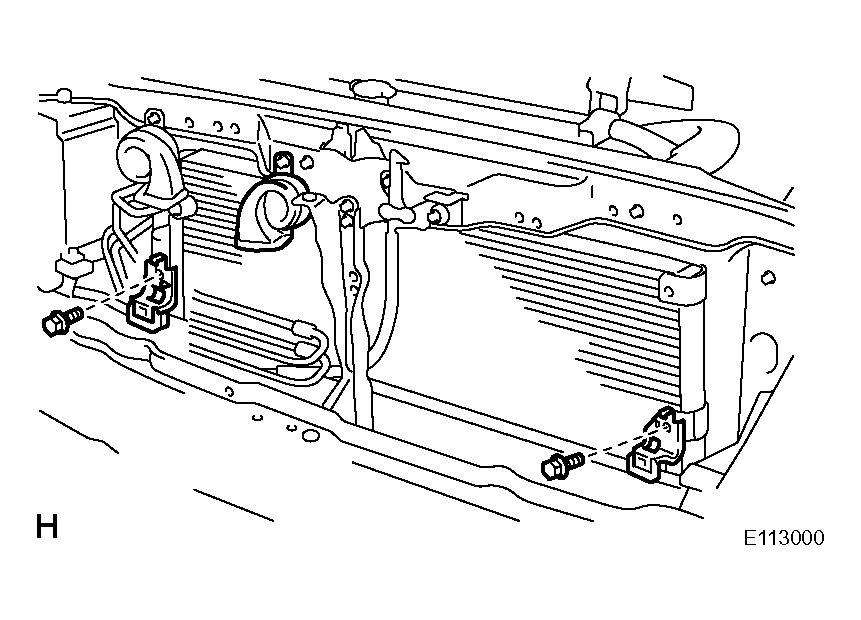

3. Remove the 2 bolts and 2 center brackets.
4. Remove the condenser.
  HINT:

  At the time of installation, please refer to the following item. If condenser is replaced, add compressor oil to condenser.

  Add oil amount: 40 cc (1.4 fl.oz.)

  Compressor oil: ND-OIL 8 or equivalent

  Fig 5: Removing Condenser
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
