Air Cooled Oil Cooler: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR GRILLE SUB-ASSEMBLY
1. Remove the 3 screws.
2. Release the 2 clips and remove the radiator grille.
DISCONNECT POWER STEERING OIL COOLER SUB-ASSEMBLY
1. Remove the 2 bolts and disconnect the power steering oil cooler.

  Fig 1: Disconnecting Power Steering Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER ASSEMBLY
1. Loosen the 2 clips and disconnect the 2 hoses.

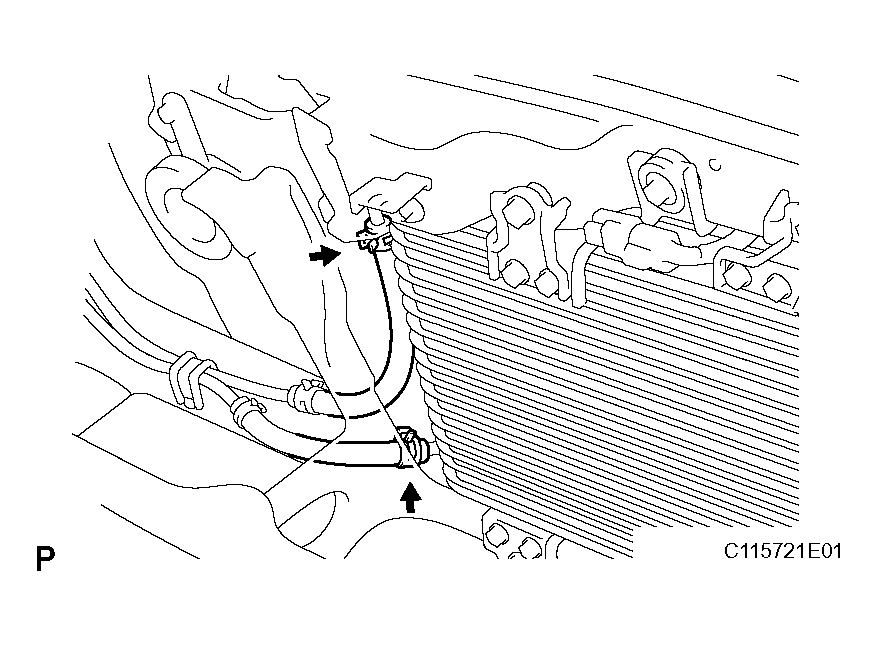

  Fig 2: Disconnecting Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and oil cooler.

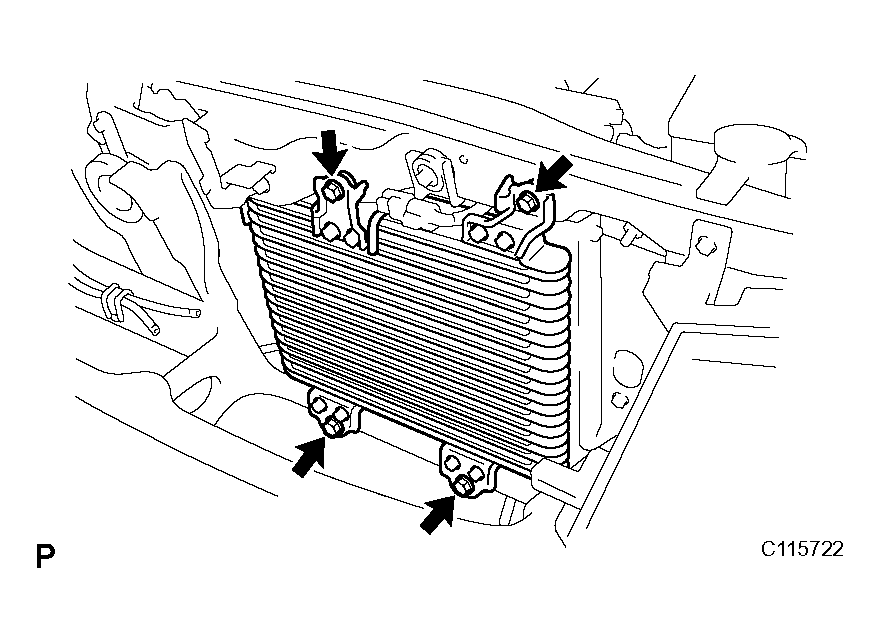

  Fig 3: Removing Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bolts, 2 oil cooler brackets and 2 stays.

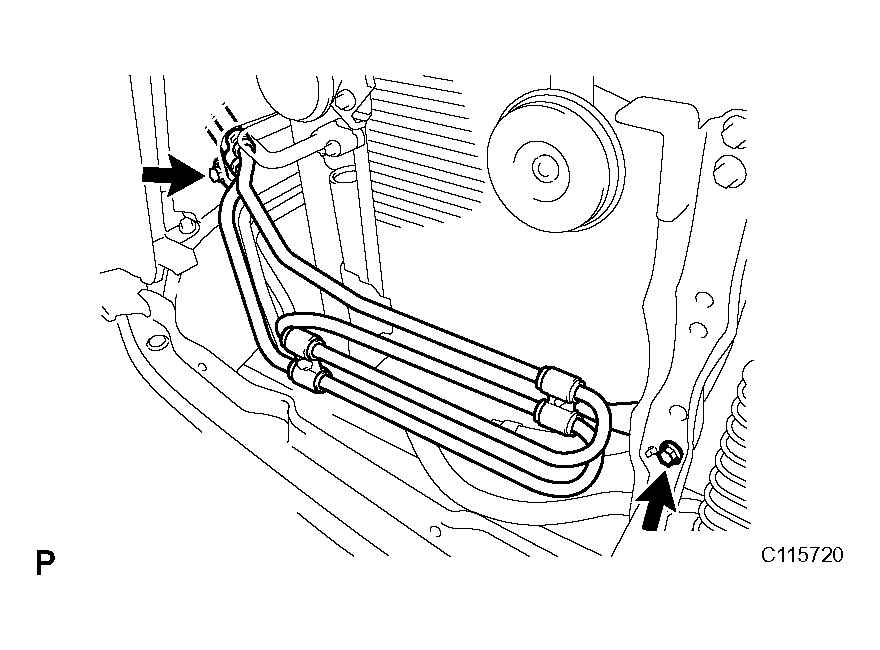

  Fig 4: Removing Oil Cooler Brackets & Stays
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER PIPE BRACKET
1. Move the 2 clips to disconnect 2 hoses.

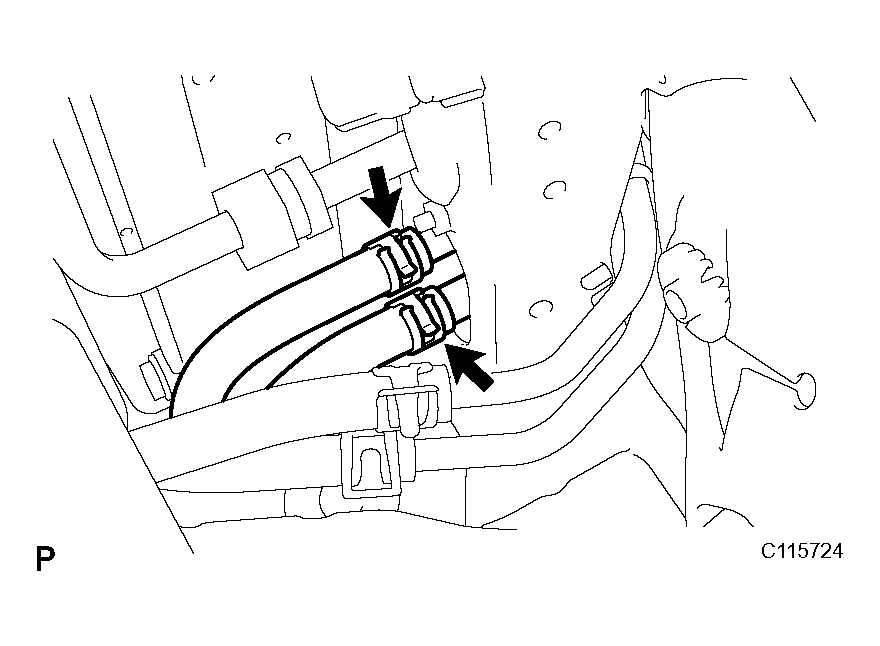

  Fig 5: Disconnecting Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and the oil cooler pipe bracket.
3. Move the 2 clips to disconnect the 2 hoses.

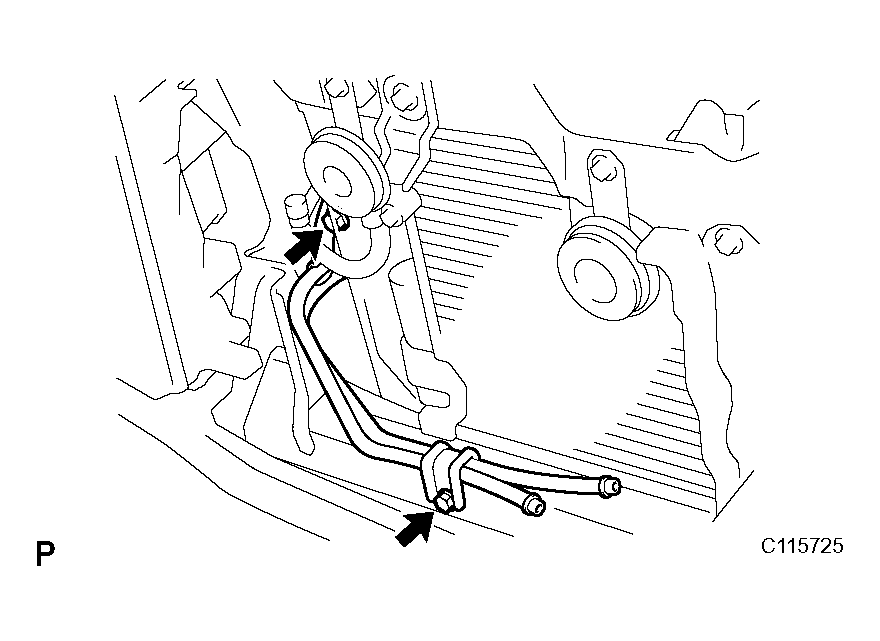

  Fig 6: Removing Oil Cooler Pipe Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
