Automatic Transaxle Assembly: Installation

1. Inspect the torque converter clutch (see TORQUE CONVERTER AND DRIVE PLATE  ).

1. Install the torque converter clutch to the automatic transaxle.

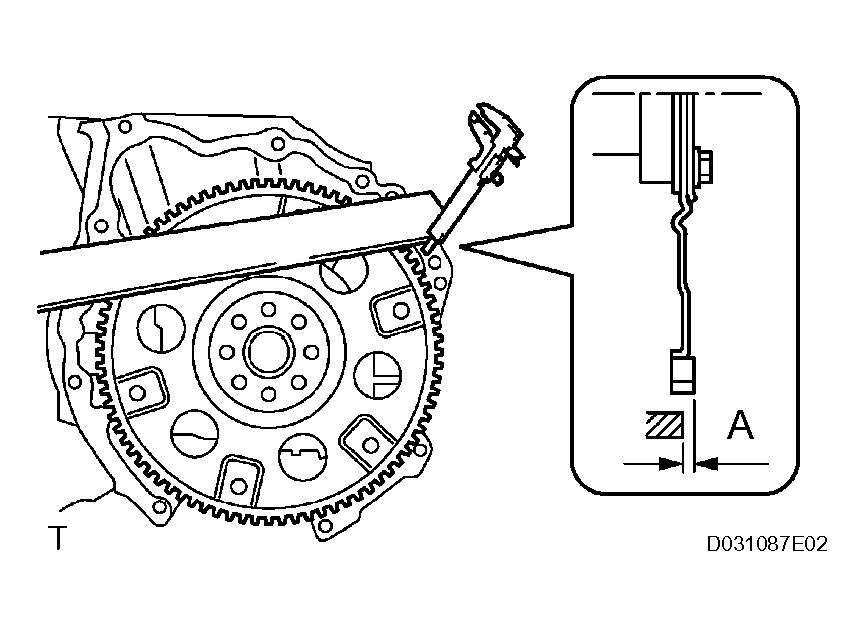

2. Using a vernier caliper, measure dimension A between the transaxle and end surface of the drive plate.
   Fig 1: Measuring Dimension A Between Transaxle And End Surface Of Drive Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

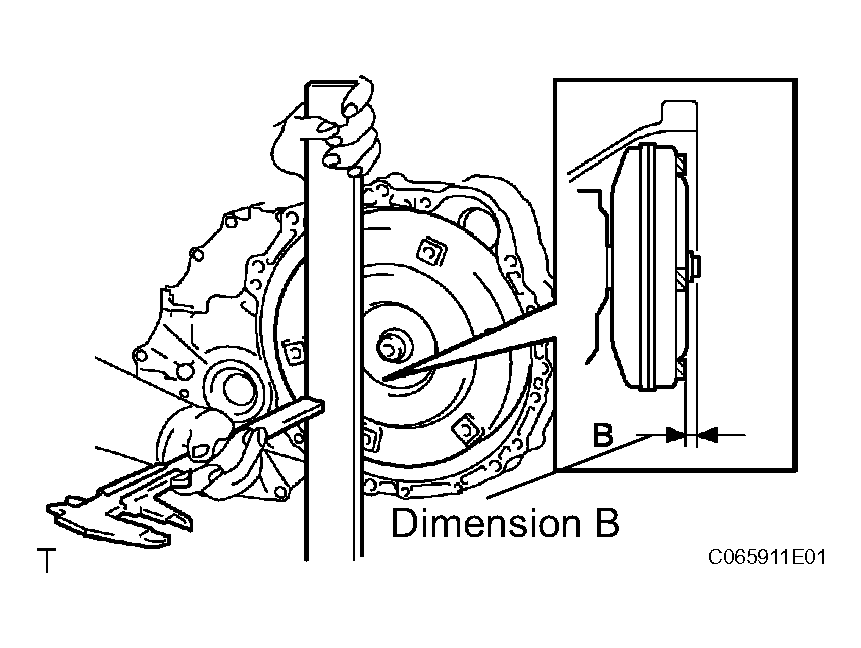

3. Using a vernier caliper and straightedge, measure dimension B shown in the illustration and check that B is greater than A.

   Standard dimension: A + 1.0 mm (0.039 in.) or more

1. Install the protector with the 2 bolts.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

   Fig 2: MeasuringTorque Converter Dimension "B"

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

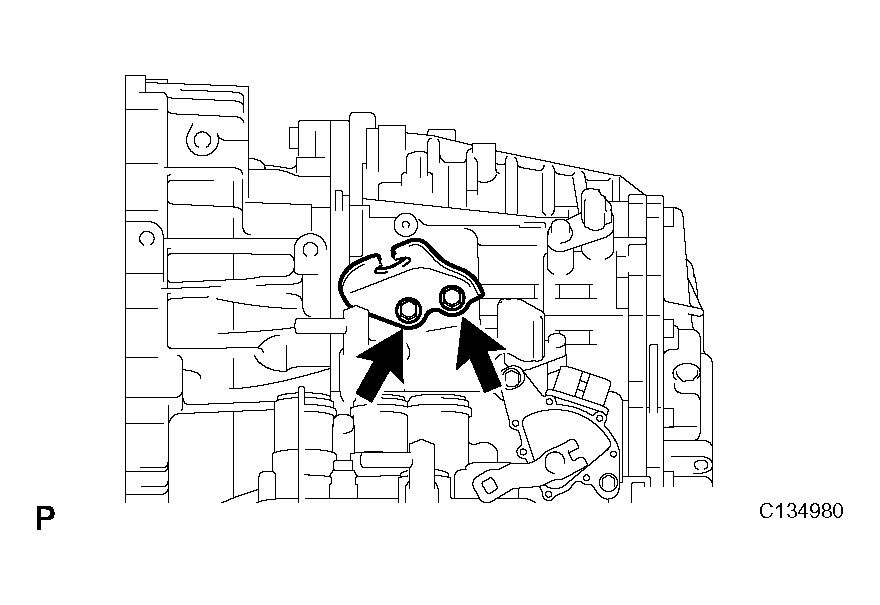

1. Install the cable bracket with the 2 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

   Fig 3: Installing Cable Bracket With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the filler tube with the bolt.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

2. Install the ATF dipstick.
   Fig 4: Installing Filler Tube With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

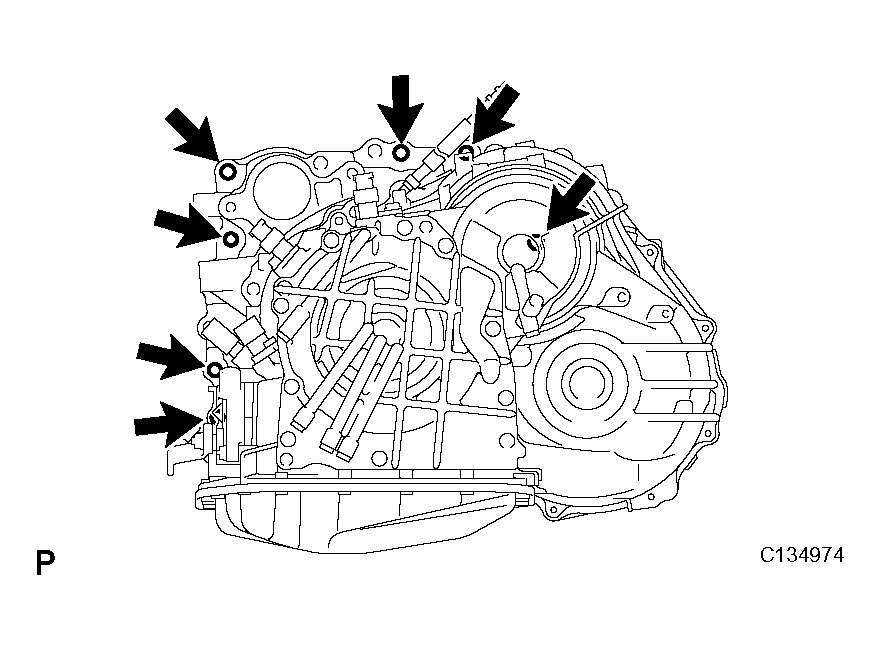

1. Install the automatic transaxle to the engine with the 7 upper side mounting bolts.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   Fig 5: Installing Automatic Transaxle To Engine With Upper Side Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

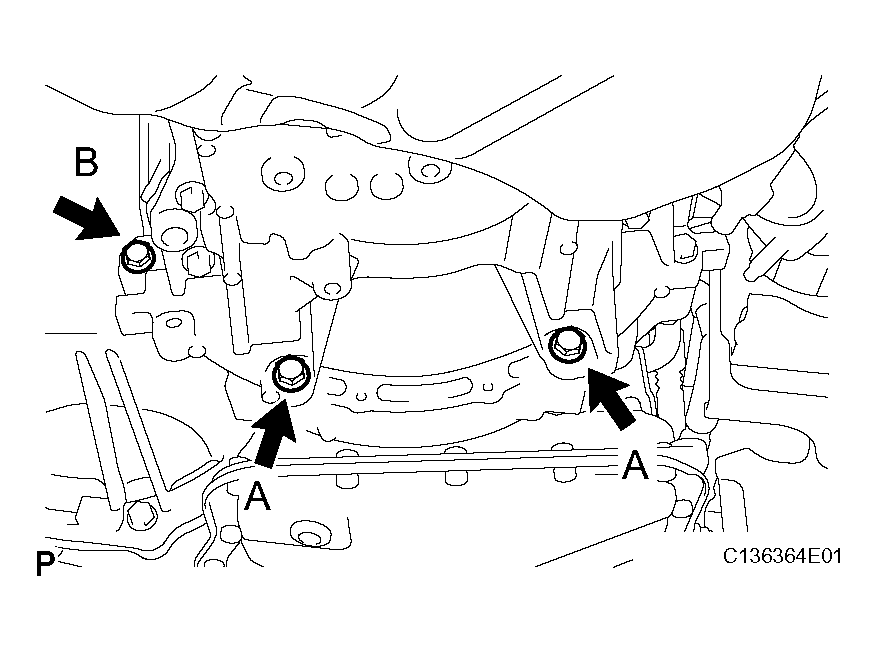

2. Install the 3 lower side mounting bolts.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf) for bolt A

   46 N*m (469 kgf*cm, 34 ft.*lbf) for bolt B

   Fig 6: Installing Lower Side Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

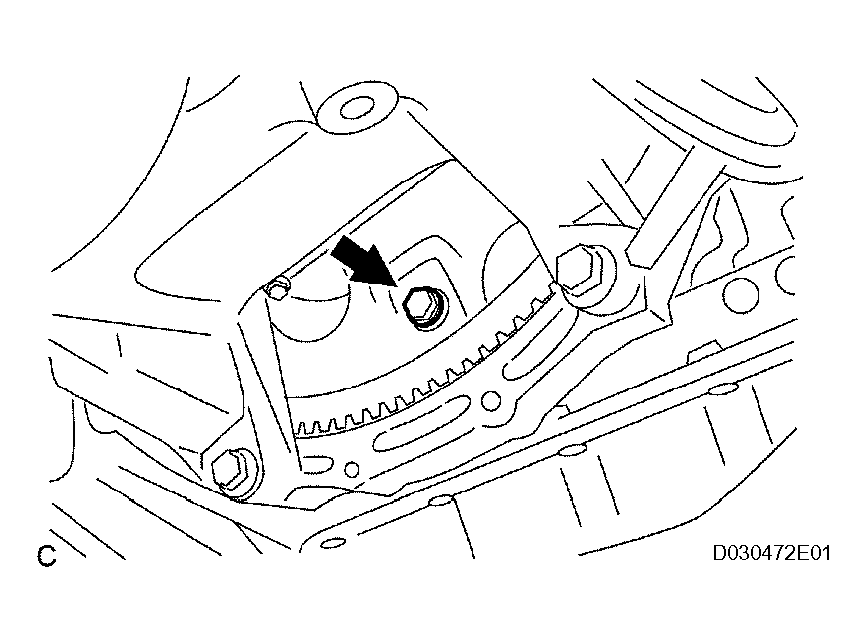

3. Install the 6 torque converter clutch mounting bolts.

   Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

   HINT:

   First install the green colored bolt and then the other 5 bolts.

   Fig 7: Installing Torque Converter Clutch Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

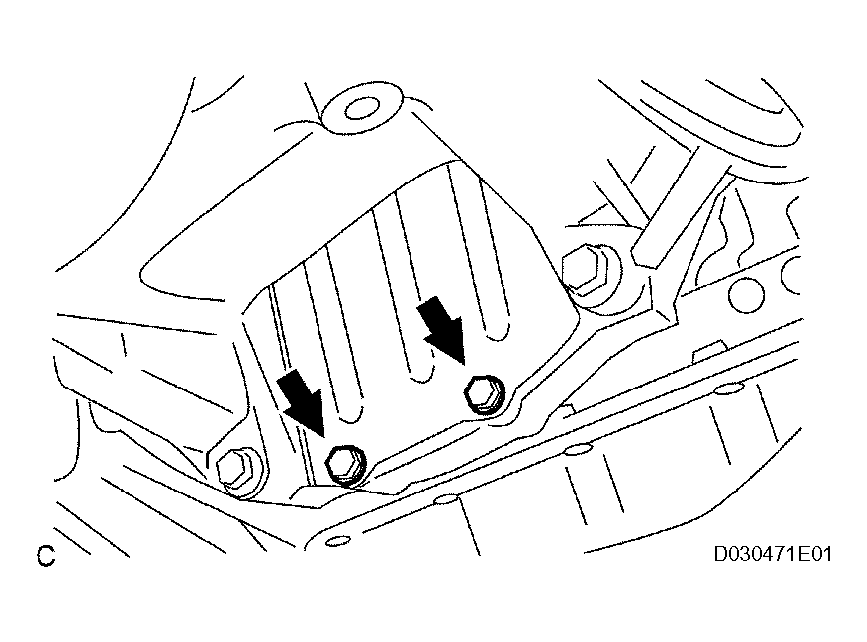

4. Install the flywheel housing under cover with the 2 bolts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

1. Install the transfer (see INSTALLATION ).
   Fig 8: Installing Flywheel Housing Under Cover With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

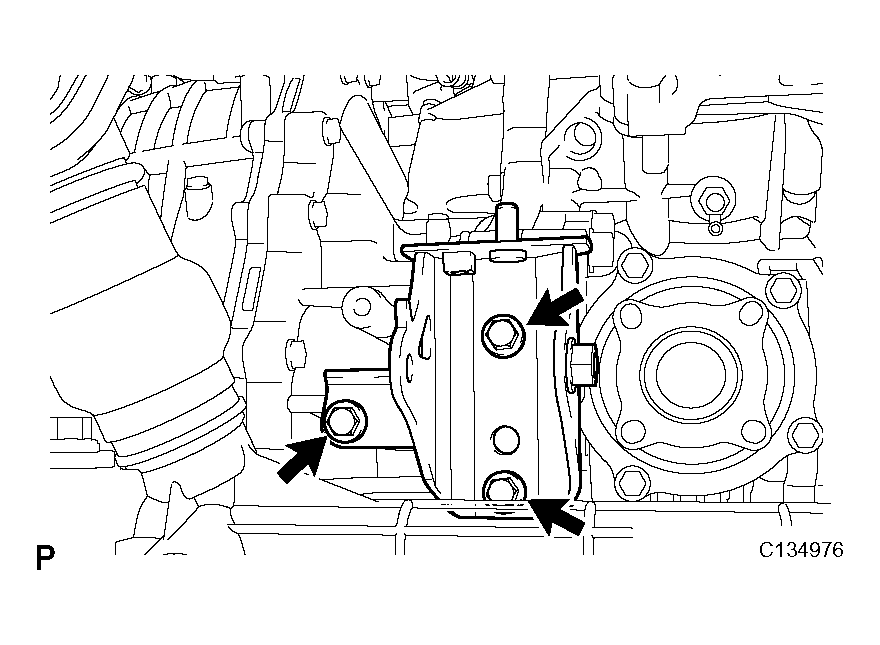

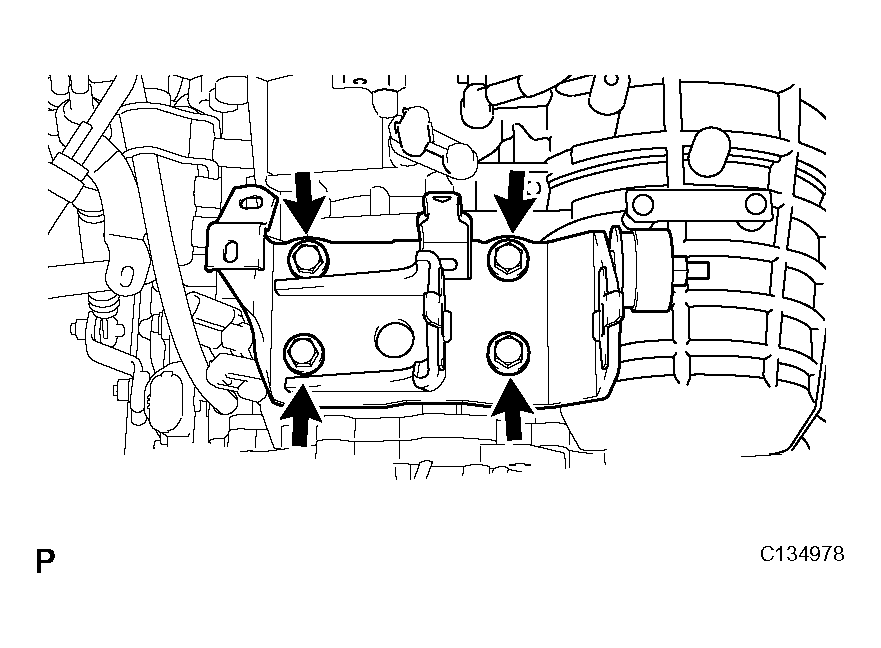

1. Install the mounting bracket with the 4 bolts.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   Fig 9: Installing Mounting Bracket With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

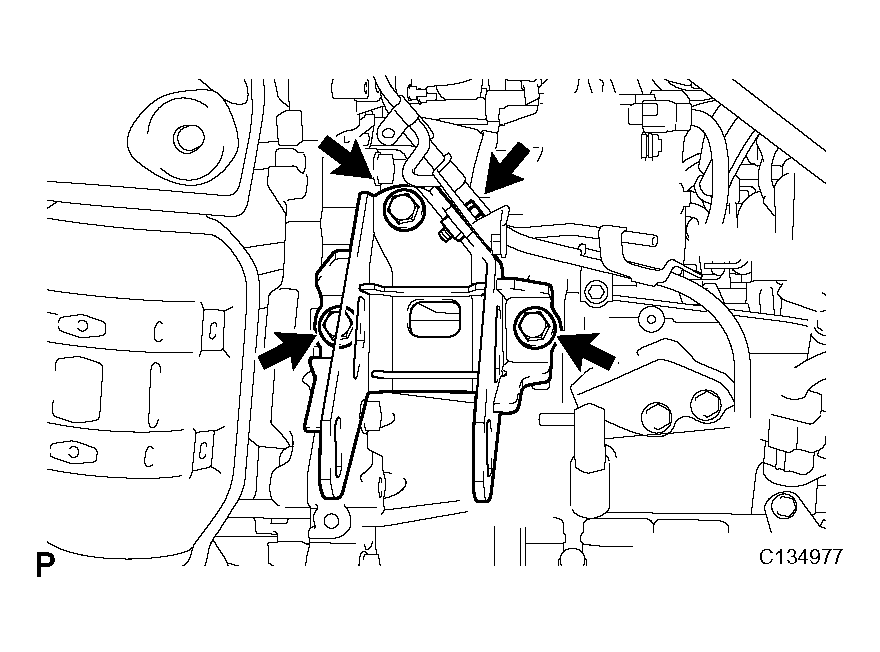

1. Install the mounting bracket with the 4 bolts.

   Torque: 64 N*m (657 kgf*cm, 47 ft.*lbf)

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf) for filler tube bolt

   Fig 10: Installing Mounting Bracket With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the mounting bracket with the 3 bolts.

   Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

1. Install the transmission oil cooler hoses and tube (see INSTALLATION  ).
   Fig 11: Installing Mounting Bracket With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

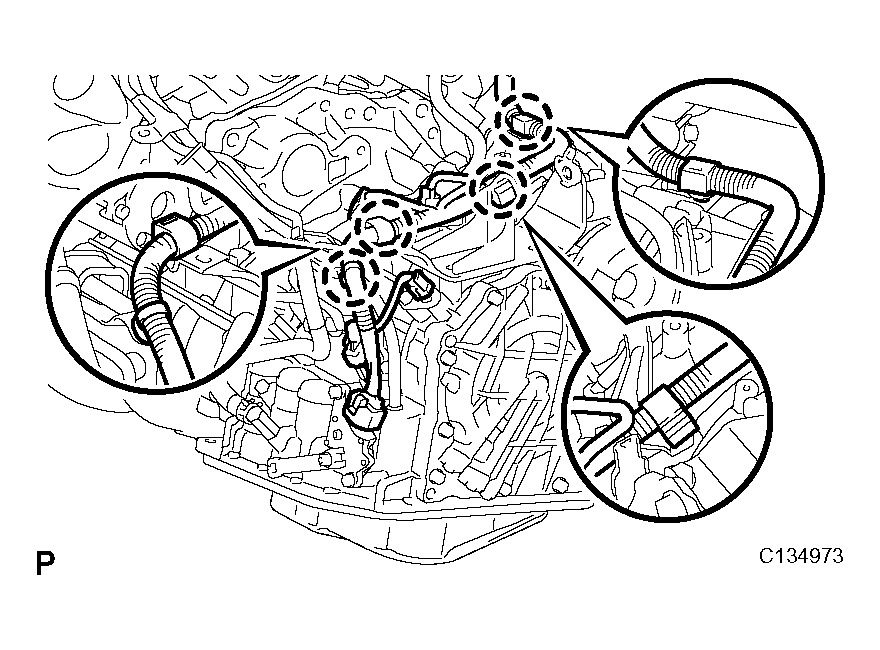

1. Connect the wire harness clamps.
2. Connect the 2 speed sensor connectors.
3. Connect the transaxle wire connector.
4. Connect the park/neutral position switch connector.
   Fig 12: Connecting Park/Neutral Position Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

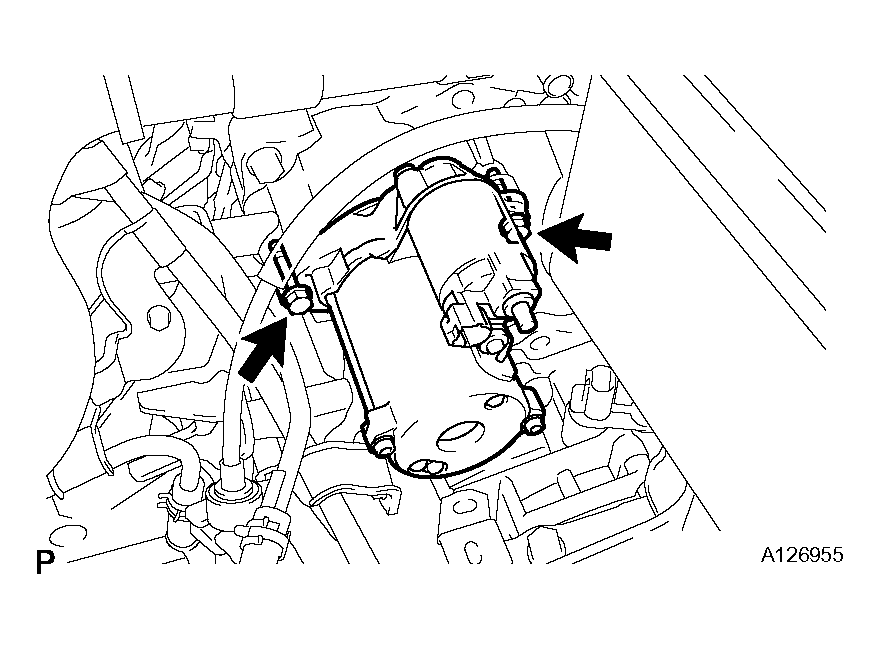

1. Install the starter with the 2 bolts.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

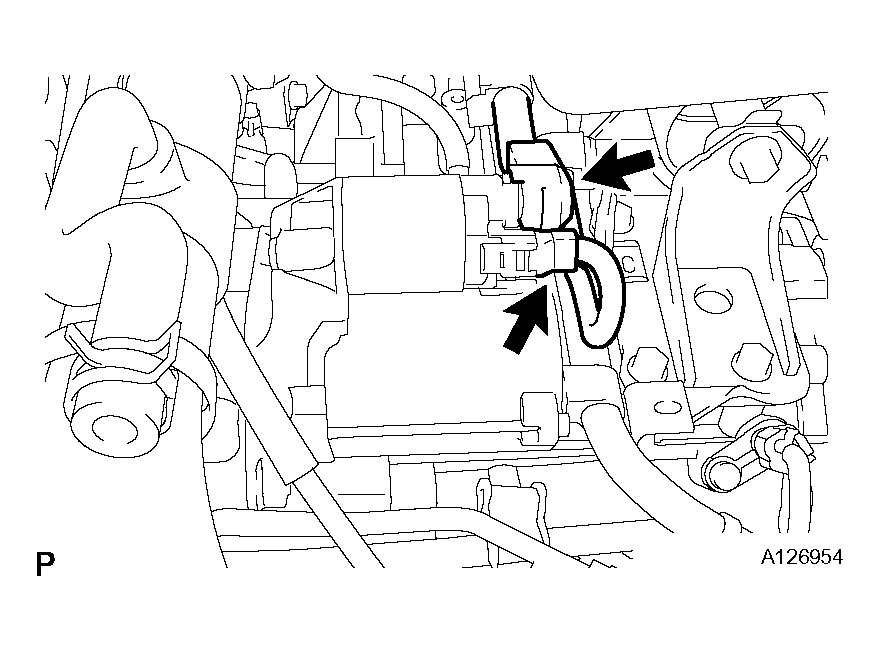

2. Connect the starter connector.
   Fig 13: Installing Starter With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the terminal nut and cover the nut with the cap.

   Torque: 9.8 N*m (100 kgf*cm, 88 in.*lbf)

1. Install the engine with transaxle (see REPLACEMENT ).

Fluid type: Toyota Genuine ATF WS

Fig 14: Connecting Starter Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect the automatic transaxle fluid (see INSPECTION PROCEDURE  ).

1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION  ).
