Transfer Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSFER ASSEMBLY
1. Install the transfer to the transaxle with the 6 nuts and 2 bolts.
  Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)

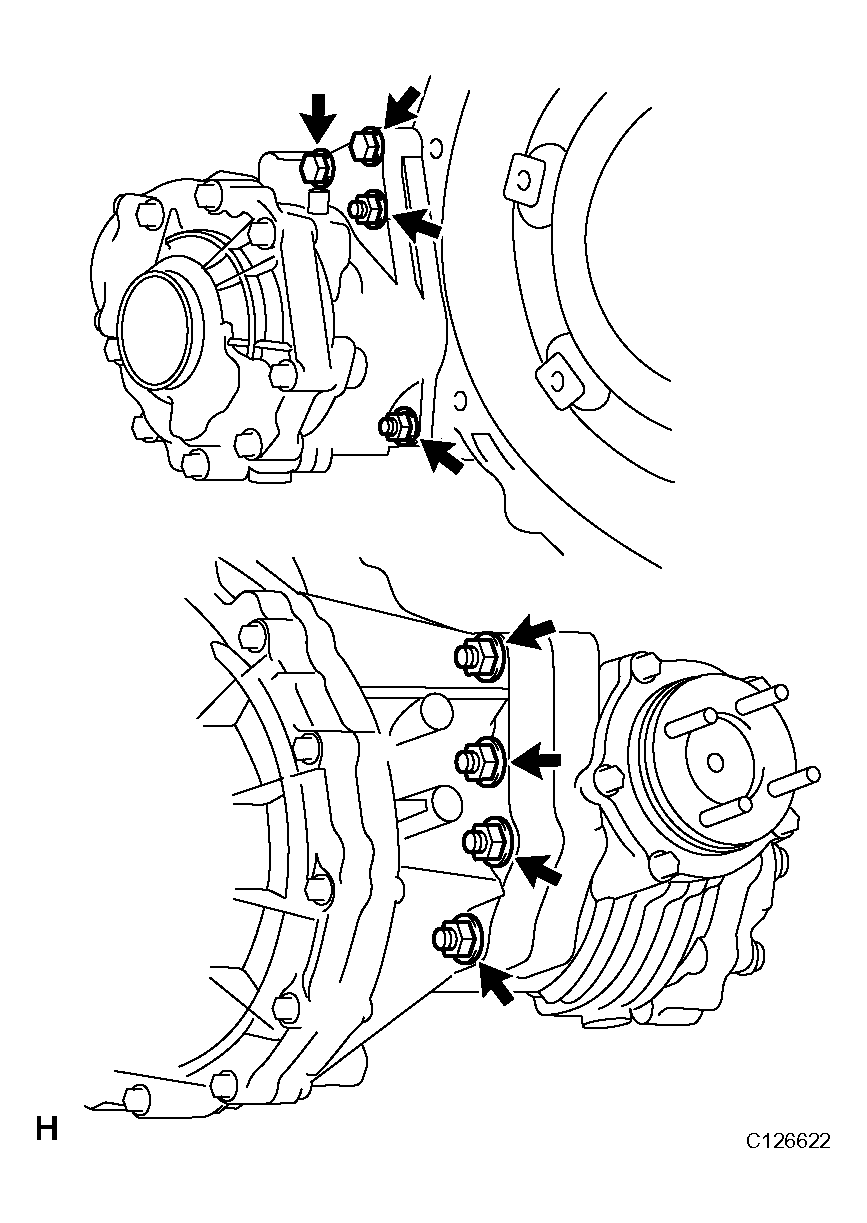

  Fig 1: Installing Transfer To Transaxle With 6 Nuts And 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR ENGINE MOUNTING BRACKET (For 2GR-FE) (see appropriate step(s) under REMOVAL )
INSTALL REAR ENGINE MOUNTING BRACKET (For 2AZ-FE) (see appropriate step(s) under INSTALLATION )
INSTALL ENGINE ASSEMBLY WITH AUTOMATIC TRANSAXLE
1. For 2GR-FE: Install the engine with automatic transaxle (see appropriate step(s) under INSTALLATION ).
2. For 2AZ-FE: Install the engine with automatic transaxle (see appropriate step(s) under INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
