Transmission Oil Cooler: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CONNECT OIL COOLER INLET HOSE
1. Connect the hose to the transaxle and transmission oil filler tube.

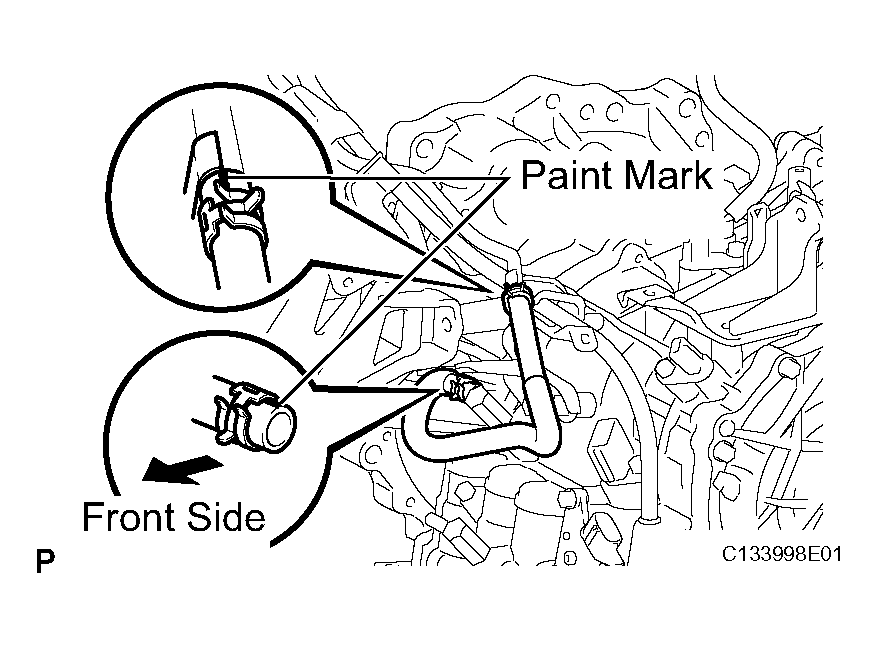

  Fig 1: Connecting Hose To Transaxle And Transmission Oil Filler Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL COOLER TUBE SUB-ASSEMBLY
1. Install the tube with the bolt.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  NOTE: Make sure the rotation stopper of the tube contacts the top part of the front engine mounting bracket.

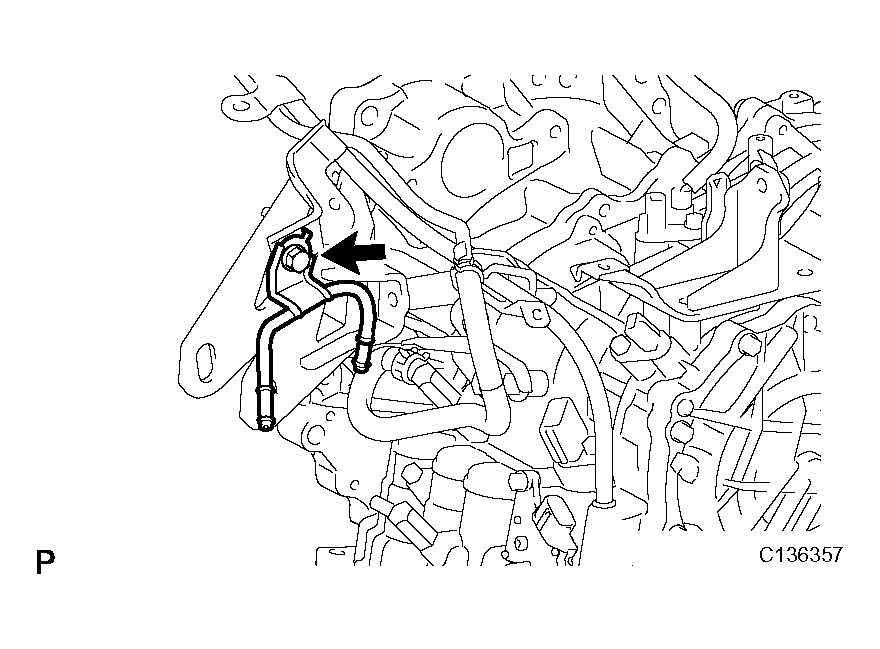

  Fig 2: Installing Oil Cooler Tube Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT OIL COOLER OUTLET HOSE
1. Connect the hose to the transaxle and oil cooler tube.

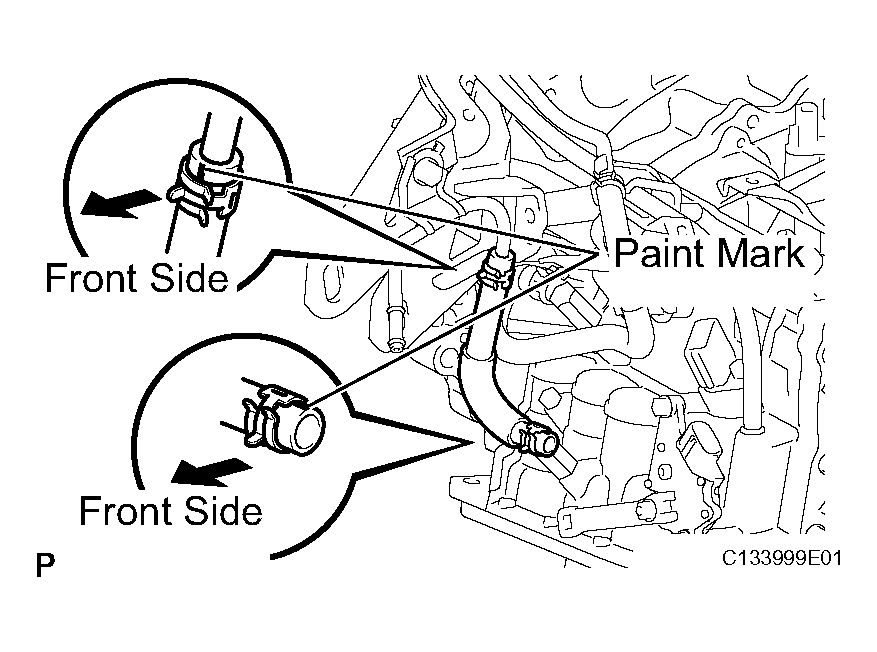

  Fig 3: Connecting Hose To Transaxle And Oil Cooler Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 1 AND NO. 2 TRANSMISSION OIL COOLER HOSES
1. Connect the 2 hoses to the transmission oil filler tube and oil cooler tube.
2. Install the 2 automatic transmission oil cooler tube clamps to the radiator.

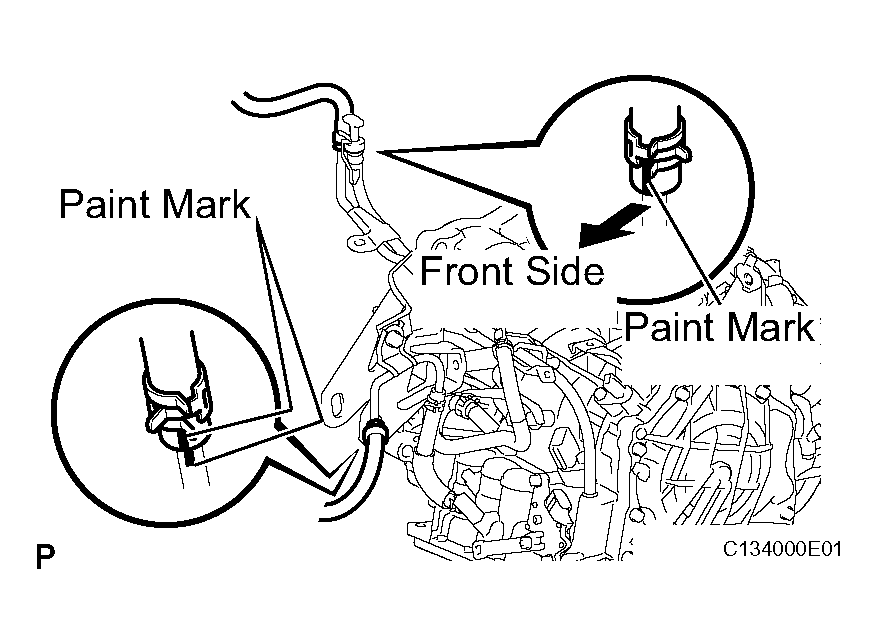

  Fig 4: Connecting Hoses To Transmission Oil Filler Tube And Oil Cooler Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

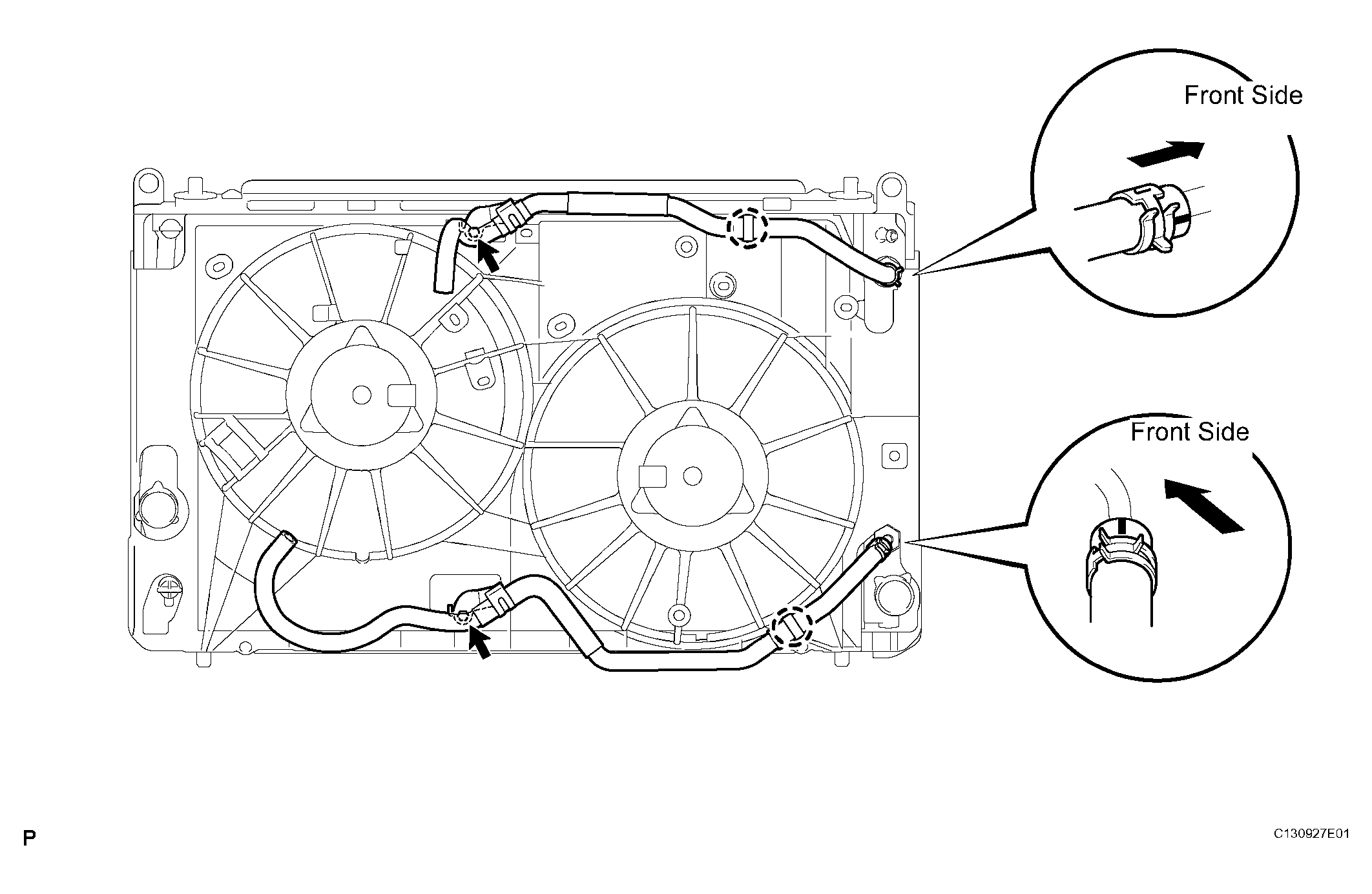

  Fig 5: Installing Automatic Transmission Oil Cooler Tube Clamps To Radiator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 No. 1 flexible hose clamps to the radiator with the 2 bolts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
4. Connect the 2 hoses to the radiator.
5. Pass the 2 hoses through the 2 automatic transmission oil cooler tube clamps.
6. Connect the 2 hoses to the 2 No. 1 flexible hose clamps, and close the 2 clamps.
ADD AUTOMATIC TRANSAXLE FLUID
INSPECT AUTOMATIC TRANSAXLE FLUID
1. Inspect the automatic transaxle fluid (see INSPECTION PROCEDURE ).
