Hydraulic Brake Booster: Installation
- INSTALL HYDRAULIC BRAKE BOOSTER
- Install a new gasket onto the hydraulic brake booster.
- Install the hydraulic brake booster with the 4 nuts.
Torque: 14 N*m (145 kgf*cm, 10 ft.*lbf)
- Temporarily install each brake tube to the correct positions of the brake actuator as shown in the illustration.
- Using a union nut wrench, connect the 4 brake tubes onto the hydraulic brake booster.
Torque: without union nut wrench
15 N*m (155 kgf*cm, 11 ft.*lbf)
with union nut wrench
14 N*m (144 kgf*cm, 10 ft *lbf)
NOTE:- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) (See REPAIR INSTRUCTION ).
- This torque value is effective when the union nut wrench is parallel to a torque wrench.

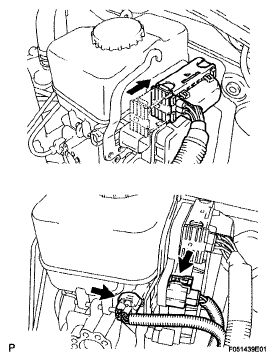

- Connect the 3 connectors.
- Install master cylinder push rod clevis (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
- FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING )
- BLEED BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY (See BLEEDING )
- BLEED BRAKE LINE (See BLEEDING )
- BLEED MASTER CYLINDER SOLENOID (See BLEEDING )
- CHECK FLUID LEVEL IN RESERVOIR (See BLEEDING )
- CHECK FOR BRAKE FLUID LEAKAGE
- INSPECT AND ADJUST BRAKE PEDAL (See ON-VEHICLE INSPECTION )
- INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY (See INSTALLATION )
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD (See INSTALLATION )
- INSTALL FOOTREST CLIP (See INSTALLATION )
- INSTALL FRONT FLOOR FOOTREST (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE (See INSTALLATION )
- INSPECT BRAKE MASTER CYLINDER OPERATION (See ON-VEHICLE INSPECTION )
