Exhaust Pipe And Catalytic Converter: Removal

  1. REMOVE TAIL PIPE ASSEMBLY
    1. Remove the 2 nuts and tail pipe assembly
    2. Remove the gasket from the center exhaust pipe.
      Fig 1: Identifying Tail Pipe Assembly Nuts
      G04975214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and center exhaust pipe assembly.
    2. Remove the gasket from the front exhaust pipe.
    Fig 2: Identifying Center Exhaust Pipe Assembly Bolts And Nuts
    G04975215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 2 nuts.

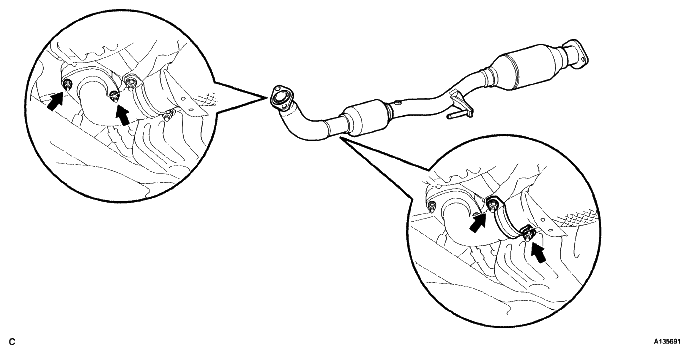

      Fig 3: Identifying Front Exhaust Pipe Assembly Nuts
      G04975216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts, front exhaust pipe No. 1 support bracket and front exhaust pipe assembly.
    3. Remove the gasket from the exhaust manifold.
  4. REMOVE HEATED OXYGEN SENSOR  (See REMOVAL )
  5. REMOVE REAR EXHAUST PIPE NO. 1 SUPPORT BRACKET
    1. Remove the 2 bolts and rear support bracket.
      Fig 4: Identifying Rear Exhaust Pipe No. 1 Support Bracket Bolts
      G04975217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
