Roof Headlining: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat) CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See PRECAUTION ).
- REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
- REMOVE SEAT TRACK COVER LH (for Manual Seat) (See REMOVAL )
- REMOVE INNER SEAT TRACK BRACKET COVER LH (for Manual Seat) (See REMOVAL )
- REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat) (See REMOVAL )
- REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
- REMOVE SEAT TRACK COVER LH (for Power Seat) (See REMOVAL )
- REMOVE INNER SEAT TRACK BRACKET COVER RH (for Power Seat) (See REMOVAL )
- REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat) (See REMOVAL )
- REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
- REMOVE SEAT TRACK COVER RH (for Manual Seat)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
- REMOVE SEAT TRACK COVER RH (for Power Seat)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE REAR SEAT CUSHION ASSEMBLY (See REMOVAL )
- REMOVE REAR SEAT HEADREST ASSEMBLY
- REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
- REMOVE REAR SEAT BACK ASSEMBLY (for Fixed Seat Type) (See REMOVAL )
- REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) (See REMOVAL )
- REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) (See REMOVAL )
- REMOVE REAR SIDE SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) (See DISASSEMBLY )
- REMOVE REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) (See DISASSEMBLY )
- REMOVE REAR SEAT BACK COVER (for Reclining Seat Type) (See REMOVAL )
- REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Reclining Seat Type) (See REMOVAL )
- REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type) (See REMOVAL )
- REMOVE CENTER SEAT BACK ASSEMBLY (for Reclining Seat Type) (See REMOVAL )
- REMOVE REAR DOOR SCUFF PLATE LH
- Disengage the 5 claws and 2 clips, and remove the rear door scuff plate LH.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
- REMOVE REAR DOOR SCUFF PLATE RH
HINT
Use the same procedure for the RH side and the LH side.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
- REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (for Reclining Seat Type) (See REASSEMBLY )
- REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH (for Reclining Seat Type)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH (See DISASSEMBLY )
- REMOVE DOOR ASSIST GRIP COVER LH (See DISASSEMBLY )
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (See DISASSEMBLY )
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH (See DISASSEMBLY )
- REMOVE FRONT DOOR SCUFF PLATE LH
- Disengage the 7 claws and 3 clips, and remove the front door scuff plate LH.
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
- Remove the cowl side trim clip.
- Disengage the 2 clips and remove the cowl side trim sub-assembly LH.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)
- Disengage the 3 claws and remove the lap belt outer anchor cover.
- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
- Remove the bolt and disconnect the floor end of the front seat outer belt assembly LH.
- REMOVE LOWER CENTER PILLAR GARNISH LH
- Disengage the 2 claws and 2 clips, and remove the lower center pillar garnish LH.
- REMOVE UPPER CENTER PILLAR GARNISH LH
- Remove the bolt.
- Disengage the clip and remove the upper center pillar garnish LH.
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)
HINT:
Use the same procedure for the RH side and the LH side.
- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE LOWER CENTER PILLAR GARNISH RH
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE UPPER CENTER PILLAR GARNISH RH
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE ROOF SIDE INNER GARNISH LH
- Disengage the 5 clips and 2 claws, and remove the roof side inner garnish LH.
- REMOVE ROOF SIDE INNER GARNISH RH
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FRONT PILLAR GARNISH LH
- Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
- Cut off the clip <A>.
- Disengage the 2 claws and remove the front pillar garnish LH.
- Remove the clip <A> from the vehicle body.
- Protect the curtain shield airbag assembly.
- Cover the airbag with a 700 mm (27.56 in.) x 120 mm (4.72 in.) cloth or piece of nylon and fix the ends of the cover with tape, as shown in the illustration.NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
- Cover the airbag with a 700 mm (27.56 in.) x 120 mm (4.72 in.) cloth or piece of nylon and fix the ends of the cover with tape, as shown in the illustration.
- REMOVE FRONT PILLAR GARNISH RH
- Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
- Cut off the clip <A>.
- Disengage the 2 claws and remove the front pillar garnish RH.
- Remove the clip <A> from the vehicle body.
- Protect the curtain shield airbag assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Cover the airbag with a 700 mm (27.56 in.) x 120 mm (4.72 in.) cloth or piece of nylon and fix the ends of the cover with tape, as shown in the illustration.NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
- Cover the airbag with a 700 mm (27.56 in.) x 120 mm (4.72 in.) cloth or piece of nylon and fix the ends of the cover with tape, as shown in the illustration.
- REMOVE ROOF CONSOLE BOX ASSEMBLY
- Using a moulding remover, disengage the 2 clips and 2 claws.
- Disconnect the connectors and remove the roof console box assembly.
- REMOVE VISOR ASSEMBLY LH
- Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.
- Disengage the 2 clips and remove the visor assembly LH.
- REMOVE VISOR ASSEMBLY RH
HINT:
Use the same procedures for the RH side and the LH side.
- REMOVE VISOR HOLDER
- Turn the visor holder approximately 45° and pull it out as shown in the illustration.
- Disengage the 2 claws and remove the visor holder.
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY
- Using a screwdriver, disengage the 6 claws and remove the 2 assist grip covers.
HINT:
Tape the screwdriver tip before use.
- Disengage the 2 clips and remove the front assist grip sub-assembly.
HINT:
Use the same procedure for the RH side and the LH side.
- Using a screwdriver, disengage the 6 claws and remove the 2 assist grip covers.
- REMOVE REAR ASSIST GRIP SUB-ASSEMBLY
HINT:
Use the same procedure for the rear side and the front side.
- REMOVE NO. 1 ROOM LIGHT ASSEMBLY (w/o Sliding Roof)
- Using a screwdriver, disengage the 4 claws and remove the lens cover.
HINT:
Tape the screwdriver tip before use.

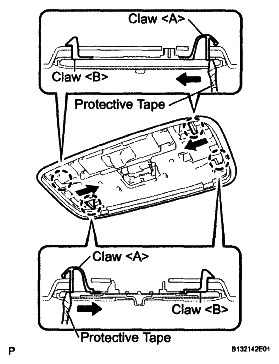

- Using a screwdriver, disengage the 2 claws <A> as shown in the illustration.
HINT:
Tape the screwdriver tip before use.
- Disengage the 2 claws <B> and remove the No. 1 room light assembly.
- Disconnect the room light connector.
- Using a screwdriver, disengage the 4 claws and remove the lens cover.
- REMOVE SPOT LIGHT ASSEMBLY (w/ Sliding Roof)
- Using a screwdriver, disengage the 2 claws labeled A and 2 claws labeled B from the vehicle body.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, disengage the 2 claws labeled C and remove the spot light assembly from the headlining.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, disengage the 4 claws.
HINT:
Tape the screwdriver tip before use.
- Pull the light bulb holder in the direction indicated by the arrow in the illustration to detach the claw. Then remove the spot light assembly from the light bulb holder.
- Using a screwdriver, disengage the 2 claws labeled A and 2 claws labeled B from the vehicle body.
- REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
- Remove the sun roof opening trim moulding.
- REMOVE SUNSHADE TRIM HOLDER (w/ Rear Sunshade)
- Using a screwdriver, turn the pin of each sunshade trim holder 90°.
- Disengage the 2 claws and remove the sunshade trim holder.
- REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
- Disconnect the No. 1 roof wire connector and disengage each clamp from the front pillar LH.
- Remove the bolt and disconnect the radio setting condenser from the front pillar RH.
- Disconnect the antenna cord sub-assembly connector and disengage each clamp from the front pillar RH.
- Disconnect the antenna cord sub-assembly connector and disengage the clamp from the rear pillar RH.
- Disengage the 4 clips.
- Remove the roof headlining assembly from the vehicle through the rear left door.
- REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
- Disconnect the No. 1 roof wire connector and disengage each clamp from the front pillar LH.
- Remove the bolt and disconnect the radio setting condenser from the front pillar RH.
- Disconnect the antenna cord sub-assembly connector and disengage each clamp from the front pillar RH.
- Disconnect the antenna cord sub-assembly connector and disengage the clamp from the rear pillar RH.
- Disconnect the sliding roof drive gear connector.
- Disengage the hook, 4 clips, and 2 fasteners.
- Remove the roof headlining assembly from the vehicle through the rear left door.
- REMOVE NO. 2 REAR SIDE RAIL SPACER LH (w/o Sliding Roof)
- Remove the No. 2 rear side rail spacer LH.
- REMOVE NO. 2 REAR SIDE RAIL SPACER RH (w/o Sliding Roof)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE NO. 3 REAR SIDE RAIL SPACER LH (w/o Sliding Roof)
- Remove the No. 3 rear side rail spacer LH.
- REMOVE NO. 3 REAR SIDE RAIL SPACER RH (w/o Sliding Roof)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE ROOF SIDE RAIL SILENCER PAD LH (w/o Sliding Roof)
- Remove the roof side rail silencer pad LH.
- REMOVE ROOF SIDE RAIL SILENCER PAD RH (w/o Sliding Roof)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
- Remove the No. 2 roof silencer pad.
- REMOVE NO. 4 ROOF SILENCER PAD (w/o Sliding Roof)
- Remove the 5 No. 4 roof silencer pads.
- REMOVE NO. 2 REAR SIDE RAIL SPACER LH (w/ Sliding Roof)
- Remove the No. 2 rear side rail spacer LH.
- REMOVE NO. 2 REAR SIDE RAIL SPACER RH (w/ Sliding Roof)
HINT:
Use the same procedure for the RH side and the LH side.
- REMOVE FASTENER HOOK (w/ Sliding Roof)
- REMOVE ANTENNA CORD SUB-ASSEMBLY (See REMOVAL )
- REMOVE VANITY LIGHT ASSEMBLY (w/ Sliding Roof)
- Disengage the 2 claws <A> and separate the bulb holder from the vanity light assembly as shown in the illustration.
- Disengage the claw <B> and remove the vanity light assembly.
HINT:
Use the same procedure to remove the light on the other side.

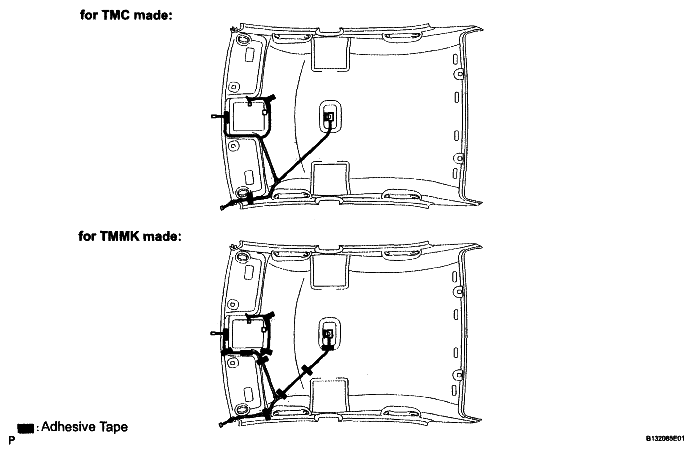

- REMOVE NO. 1 ROOF WIRE (w/o Sliding Roof)
- Remove the adhesive tape from the roof headlining assembly.
- Remove the No. 1 roof wire from the roof headlining assembly.
- Remove the double-sided tape from the roof headlining assembly.

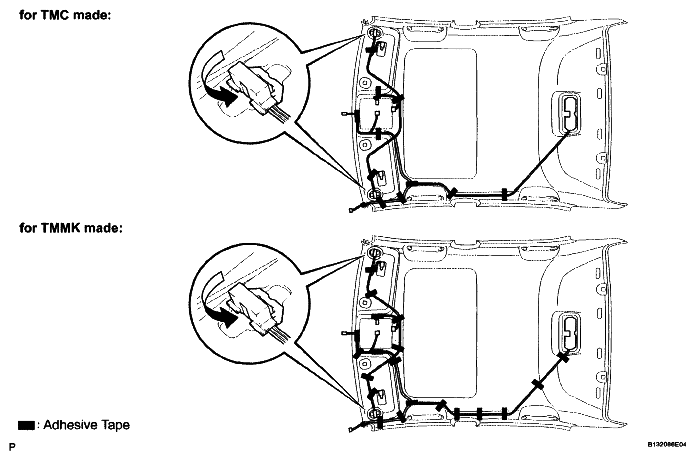

- REMOVE NO. 1 ROOF WIRE (w/ Sliding Roof)
- Turn the visor connectors clockwise approximately 90° and separate the connectors from the roof headlining assembly.
- Remove the adhesive tape from the roof headlining assembly.
- Remove the No. 1 roof wire from the roof headlining assembly.
- Remove the double-sided tape from the roof headlining assembly.
