Passenger Side Junction Block - Right Side of Glove Box

WARNING: This page is about a different variant/trim than selected.

Refer to Instrument Panel .

Fig 1: Passenger Side J/B Connector Locations (1 Of 2)

G08860865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(Inner Circuit: See PASSENGER SIDE J/B INNER CIRCUIT )

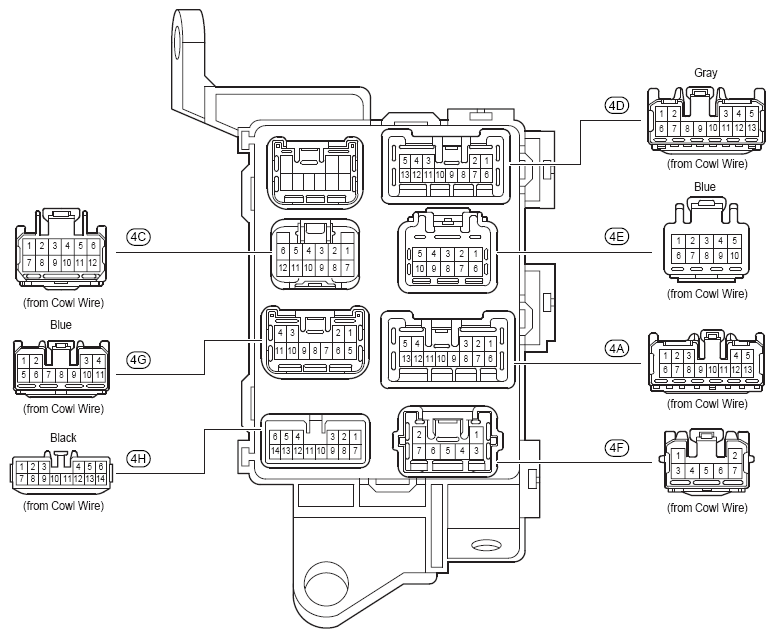

Fig 2: Passenger Side J/B Connector Locations (2 Of 2)

G08860866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
