Instrument Panel

WARNING: This page is about a different variant/trim than selected.

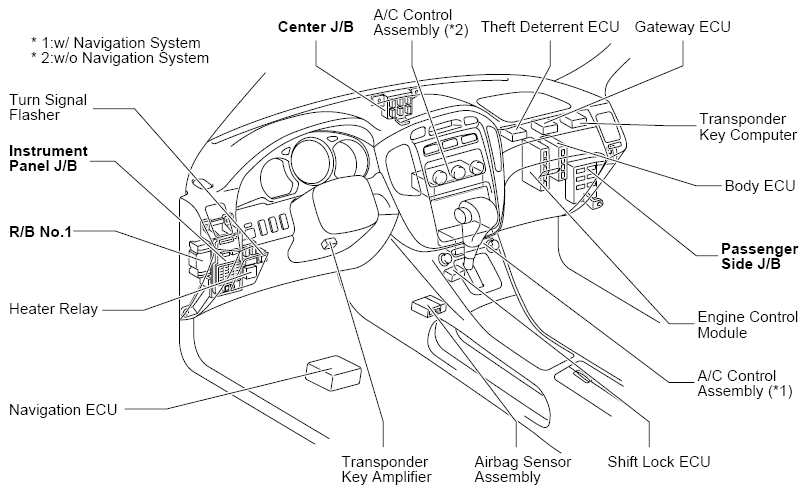

Fig 1: Instrument Panel Component And Relay Locations
G08860851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Heater Relay
