Instrument Panel Junction Block - Lower Finish Panel
WARNING: This page is about a different variant/trim than selected.
Refer to Instrument Panel .

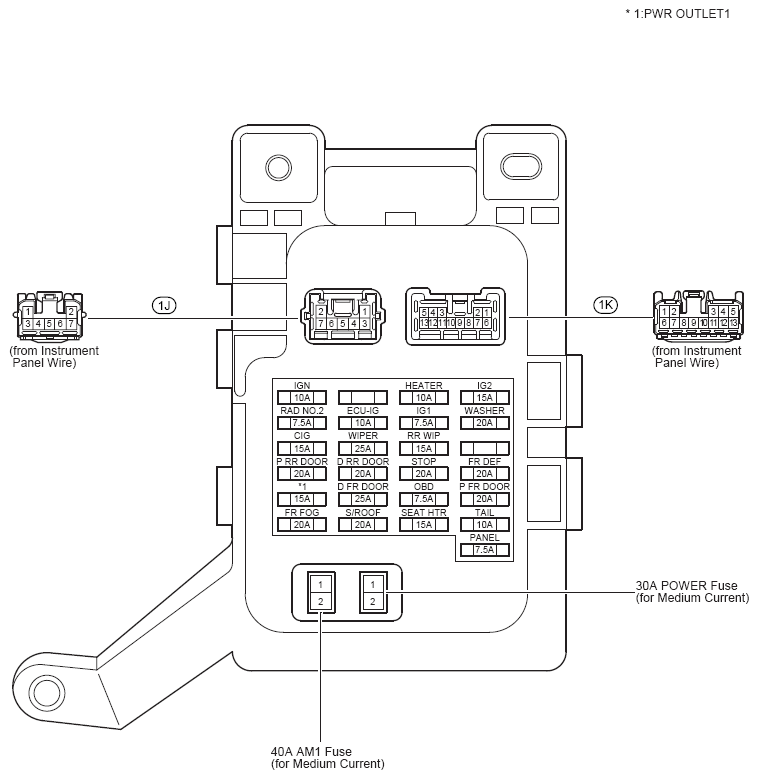

Instrument Panel J/B Fuse & Connector Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | IG1 | Automatic Glare-Resistant EC Mirror |
| Automatic Light Control | ||
| Back-Up Light | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (3MZ-FE) | ||
| Door Lock Control | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Front Fog Light | ||
| Headlight (w/ Daytime Running Light) | ||
| Headlight (w/o Daytime Running Light) | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Light Auto Turn Off System | ||
| Mirror Heater and Front Deicer | ||
| Moon Roof | ||
| Navigation System | ||
| Power Outlet | ||
| Power Window | ||
| Seat Heater | ||
| SRS | ||
| Theft Deterrent System | ||
| Trailer Towing | ||
| Turn Signal and Hazard Warning Light | ||
| Wireless Door Lock Control | ||
| 7.5A | OBD | Engine Control (2AZ-FE) |
| Engine Control (3MZ-FE) | ||
| 7.5A | PANEL | Illumination |
| 7.5A | RAD NO.2 | Air Conditioning (Automatic A/C) |
| Air Conditioning (Manual A/C) | ||
| Audio System (6 Speaker) | ||
| Audio System (8 Speaker) | ||
| Automatic Light Control | ||
| Door Lock Control | ||
| Headlight (w/ Daytime Running Light) | ||
| Headlight (w/o Daytime Running Light) | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Navigation System | ||
| Power Window | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Theft Deterrent System | ||
| Wireless Door Lock Control | ||
| 10A | ECU-IG | ABS, TRAC, VSC and Tire Pressure Warning System |
| Charging | ||
| Navigation System | ||
| Shift Lock | ||
| Theft Deterrent System | ||
| 10A | HEATER | ABS, TRAC, VSC and Tire Pressure Warning System |
| Air Conditioning (Automatic A/C) | ||
| Air Conditioning (Manual A/C) | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (3MZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (3MZ-FE) | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Mirror Heater and Front Deicer | ||
| Navigation System | ||
| Radiator Fan and Condenser Fan (2AZ-FE) | ||
| Radiator Fan and Condenser Fan (3MZ-FE) | ||
| Rear Heater | ||
| Rear Window Defogger | ||
| SRS | ||
| 10A | IGN | ABS, TRAC, VSC and Tire Pressure Warning System |
| Combination Meter | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (3MZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (3MZ-FE) | ||
| Engine Immobilizer System | ||
| SRS | ||
| 10A | TAIL | Front Fog Light |
| Taillight | ||
| Trailer Towing | ||
| 15A | CIG | Cigarette Lighter |
| 15A | IG2 | Engine Control (2AZ-FE) |
| Engine Control (3MZ-FE) | ||
| Starting and Ignition | ||
| 15A | PWR OUTLET1 | Power Outlet |
| 15A | RR WIP | Rear Wiper and Washer |
| 15A | SEAT HTR | Seat Heater |
| 20A | D RR DOOR | Power Window |
| 20A | FR DEF | Mirror Heater and Front Deicer |
| 20A | FR FOG | Front Fog Light |
| 20A | P FR DOOR | Door Lock Control |
| Interior Light | ||
| Power Window | ||
| Theft Deterrent System | ||
| Wireless Door Lock Control | ||
| 20A | P RR DOOR | Power Window |
| 20A | S/ROOF | Moon Roof |
| 20A | STOP | ABS, TRAC, VSC and Tire Pressure Warning System |
| Cruise Control (2AZ-FE) | ||
| Cruise Control (3MZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (3MZ-FE) | ||
| Shift Lock | ||
| Stop Light | ||
| Trailer Towing | ||
| 20A | WASHER | Front Wiper and Washer |
| Rear Wiper and Washer | ||
| 25A | D FR DOOR | Interior Light |
| Power Window | ||
| 25A | WIPER | Front Wiper and Washer |
| 30A | POWER | Power Seat (Driver's Seat) |
| Power Seat (Front Passenger's Seat) | ||
| 40A | AM1 | Power Outlet |
| Starting and Ignition | ||
(Inner Circuit: See INSTRUMENT PANEL J/B INNER CIRCUIT )

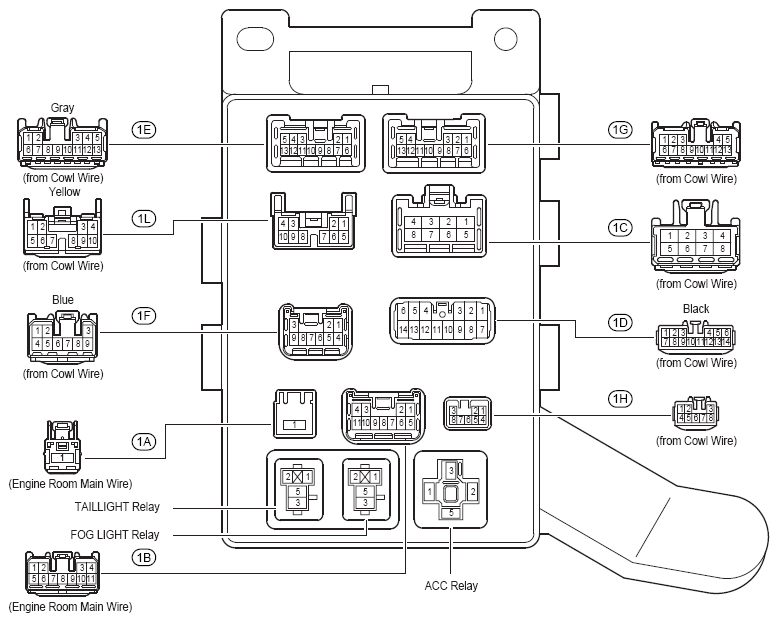

INSTRUMENT PANEL J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Fog LIGHT Relay |
| Taillight Relay |
| ACC Relay |
