Center Junction Block - Behind the Instrument Panel Center

WARNING: This page is about a different variant/trim than selected.

Refer to Instrument Panel .

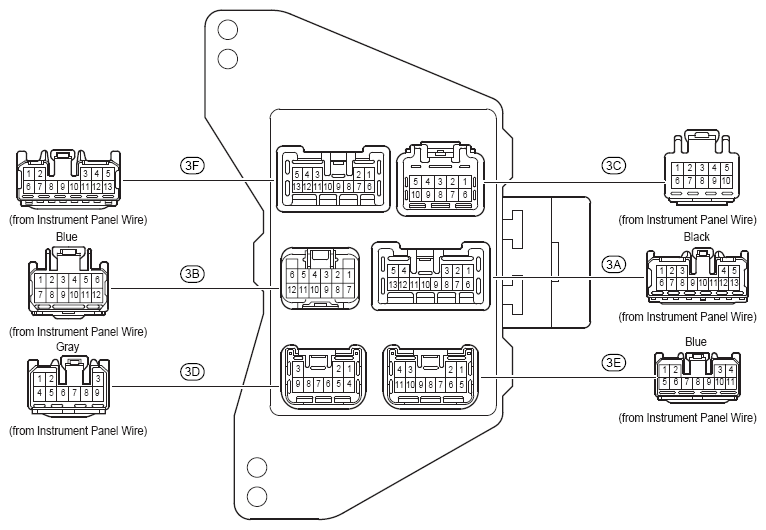

Fig 1: Center J/B Connector Locations (1 Of 2)
G08860863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(Inner Circuit: See  CENTER J/B INNER CIRCUIT  )

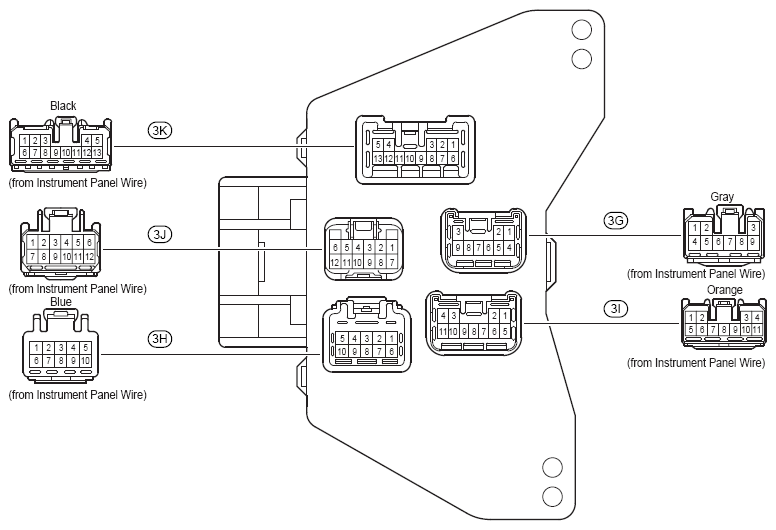

Fig 2: Center J/B Connector Locations (2 Of 2)
G08860864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
