Exhaust Pipe And Catalytic Converter: Removal

  1. REMOVE ENGINE UNDER COVER NO.1
  2. REMOVE ENGINE UNDER COVER NO.2
  3. REMOVE OXYGEN SENSOR (for Bank 1)  (See REMOVAL )
  4. REMOVE OXYGEN SENSOR (for Bank 2)  (See REMOVAL )
  5. REMOVE EXHAUST PIPE ASSEMBLY TAIL
    1. Remove the 2 bolts and 2 compression springs.
    2. Remove the exhaust pipe tail from the exhaust pipe support.
    3. Remove the gasket from the exhaust pipe center.

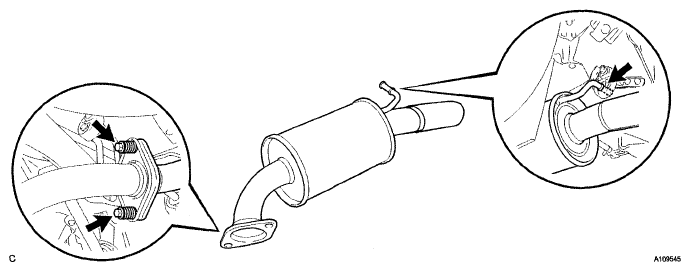

      Fig 1: Locating Exhaust Pipe Tail To Exhaust Pipe Supports With Bolts
      G05201009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE EXHAUST PIPE ASSEMBLY CENTER
    1. Remove the 2 bolts and 2 compression springs.
    2. Remove the exhaust pipe center from the 3 exhaust pipe supports.
    3. Remove the gasket from the exhaust pipe front No. 3.
    4. Remove the 2 bolts and exhaust pip damper.

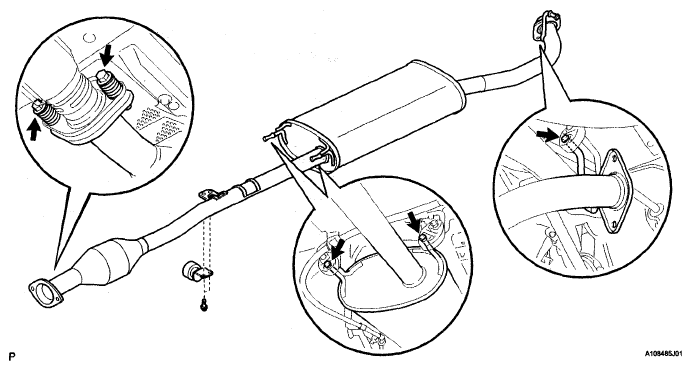

      Fig 2: Locating Exhaust Pipe Damper Bolts
      G05201010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE EXHAUST PIPE SUB-ASSEMBLY FRONT NO.3
    1. Remove the 2 bolts and 2 nuts, exhaust pipe front No. 3 and the 2 gaskets.

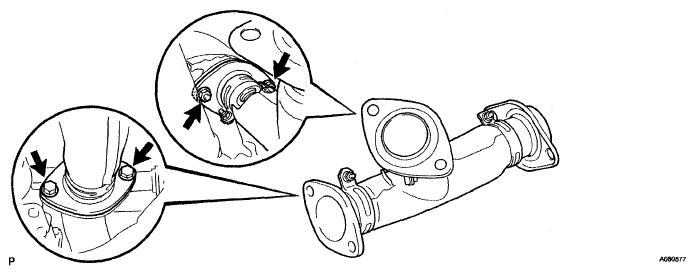

      Fig 3: Locating Exhaust Pipe Sub-Assembly Front With Gaskets
      G05201011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE EXHAUST PIPE ASSEMBLY FRONT
    1. Remove the 2 nuts, exhaust pipe assembly front, and gasket.
      Fig 4: Locating Exhaust Pipe Assembly Front
      G05201012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
