Parking Brake Cable: Installation

INSTALL PARKING BRAKE NO.3 CABLE ASSEMBLY
1. Install the parking brake cable support No.1 bracket to the parking brake No.3 cable assembly.
2. Install the parking brake No.3 cable assembly with the bolt (A) and 4 nuts.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
3. Connect the parking brake No.2 and No.3 cable assemblies to the parking brake equalizer with 2 bolts (B).
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

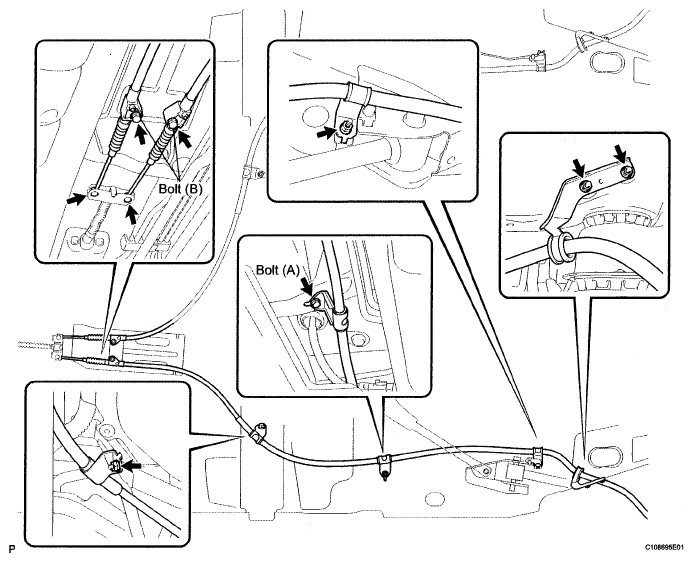

  Fig 1: Connecting Parking Brake No 2 And No 3 Cable Assemblies To Parking Brake Equalizer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK PROTECTOR SUB-ASSEMBLY NO.1 (See INSTALLATION )
CONNECT PARKING BRAKE NO.3 CABLE ASSEMBLY
1. Connect the parking brake No.3 cable assembly to the backing plate with the 2 bolts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Fig 2: Locating Parking Brake No.3 Cable Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
APPLY HIGH TEMPERATURE GREASE (See REASSEMBLY )
INSTALL PARKING BRAKE NO.2 SHOE ASSEMBLY (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See REASSEMBLY )
INSTALL PARKING BRAKE NO.1 SHOE ASSEMBLY (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE STRUT (See REASSEMBLY )
CHECK PARKING BRAKE INSTALLATION (See REASSEMBLY )
INSTALL REAR DISC (See REASSEMBLY )
ADJUST PARKING BRAKE SHOE CLEARANCE (See ADJUSTMENT )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See REASSEMBLY )
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
ADJUST PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
