REAR NO. 1 SEAT ASSEMBLY (w/ Rear No. 2 Seat for LH Side): Disassembly

1. Remove the 2 screws and 2 tonneau cover hook holders.

1. Using a molding remover, disengage the 8 claws and remove the 2 rear seatback covers.
   Fig 1: Identifying Claws Of Rear Seatback Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Release the 4 rubber bands on the backside of the rear seatback board carpet assembly.
2. Disengage the 11 clips and remove the rear seatback board carpet assembly.
   Fig 2: Identifying Clips Of Rear Seatback Board Carpet Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a clip remover, remove the clip.
2. Remove the screw.
3. Remove the reclining cover protector RH as shown in the illustration.
   Fig 3: Locating Reclining Cover Protector RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw.
2. Disengage the claw and remove the center seat hinge cover upper RH as shown in the illustration.
   Fig 4: Locating Center Seat Hinge Cover Upper RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.
2. Using a screwdriver, disengage the claw and remove the seat track upper rail cover LH.
   Fig 5: Identifying Screws And Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.

1. Remove the screw.
2. Using a "Torx" socket wrench (T45), remove the "Torx" bolt.
3. Remove the 3 bolts and center seatback assembly.
   Fig 6: Identifying Bolts Of Center Seatback Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a clip remover, remove the clip.
2. Remove the screw and reclining cover protector LH.

1. Using a "Torx" socket wrench (T45), remove the "Torx" bolts and rear seatback hinge sub-assembly center.
2. Remove the 3 screws and rear seatback molding LH.

1. Using a "Torx" socket wrench (T45), remove the 2 "Torx" bolts and rear seatback hinge sub-assembly center.
2. Remove the 3 screws and rear seatback molding RH.

1. Using a "Torx" socket wrench (T45), remove the 2 "Torx" bolts.
2. Remove the nut, rear seat center armrest support and rear seat armrest assembly center.

1. Disengage the 2 claws and remove the rear seat headrest support (LH side).
Fig 7: Locating Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Remove the 2 screws.
2. Using a molding remover, disengage the 2 claws and remove the No.1 seatback cover.

1. Remove the 2 screws and No.2 center seatback cover.

1. Remove the 3 screws.
2. Disengage the 4 claws and remove the rear seat cushion molding LH as shown in the illustration.
   Fig 8: Locating Claws And Rear Seat Cushion Molding LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw.
2. Disengage the 2 claws and remove the vertical adjuster bracket cover LH as shown in the illustration.
   Fig 9: Locating Claws And Vertical Adjuster Bracket Cover LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 claws and remove the vertical adjuster bracket cover LH as shown in the illustration.
   Fig 10: Locating Claws And Vertical Adjuster Bracket Cover LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.
2. Disengage the 3 claws and remove the rear seat cushion molding rear LH.
   Fig 11: Identifying Claws, Screws And Rear Seat Cushion Molding Rear LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a "Torx" socket wrench (T45), remove the 2 "Torx" bolts.
2. Remove the hog rings.
3. Remove the 2 bolts and separate type rear seat cushion assembly.

1. Disengage the hooks and remove the hog rings and rear seat cushion frame sub-assembly.

1. Remove the hog rings and separate type rear seat cushion cover.

1. Using a screwdriver, disengage the 2 claws and remove the rear seatback lock striker cover.

   HINT:

   Tape the screwdriver tip before use.

1. Remove the 2 screws.
   Fig 12: Locating Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the rear seat reclining control cable and remove the rear seat lock control lever sub-assembly.

1. Disengage the 2 claws and remove the rear seat headrest support (LH side).
Fig 13: Locating Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Using a screwdriver, disengage the 4 claws and remove the rear seatback lock bezel upper.
   Fig 14: Locating Claws And Rear Seatback Lock Bezel Upper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.

1. Remove the bolt and disconnect the floor anchor side of the rear center seat outer belt assembly.
   Fig 15: Identifying Floor Anchor Side Of Rear Seat Belt Assembly Outer Center Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clips.
3. Remove the bolt and rear seat belt hook.
4. Disengage the hooks and remove the hog rings and separate type rear seatback cover with pad.

1. Remove the hog rings and separate type rear seatback cover.

1. Disengage the 2 claws and remove the rear seat shoulder belt cover as shown in the illustration.
Fig 16: Locating Claws Of Rear Seat Shoulder Belt Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the reclining adjuster inside cover LH.

1. Remove the screw.
2. Disengage the claw and remove the rear seat reclining cover inner LH.
Fig 17: Locating Rear Seat Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw and rear seat cover No. 1.

1. Remove the screw and rear seat cover No.2.

1. Disconnect the 2 cables and remove the rear seat reclining control cable.

1. Using a "Torx" socket wrench (T45), remove the 2 "Torx" bolts.
2. Remove the 2 bolts and rear seatback frame sub-assembly.

1. Remove the 2 E-rings and 2 springs.
2. Remove the bolt, nut and reclining control link sub-assembly.

1. Using a "Torx" socket wrench (T45), remove the 3 "Torx" bolts.
2. Using a "Torx" socket wrench (T55), remove the 2 "Torx" bolts and rear seatback frame sub-assembly lower.

1. Remove the 4 nuts and 2 fold seat cushion frames No.1.

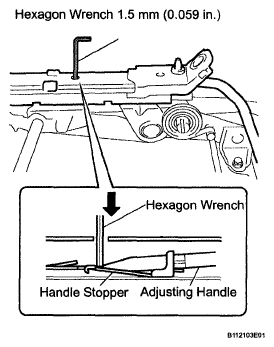

1. Move the rear seat track assembly outer and rear seat track assembly inner fully forward by operating the rear seat track adjusting handle.
2. Using a hexagon wrench 1.5 mm (0.059 in.), push down the 2 handle stoppers as shown in the illustration and remove the rear seat track adjusting handle.
Fig 18: Identifying Rear Seat Track Adjusting Handle
