Instrument Panel Safety Pad: Reassembly

  1. INSTALL INSTRUMENT PANEL WIRE
    1. Install the 8 clamps, 5 screws < H >, and the instrument panel wire.
      Fig 1: Identifying Clamps, Screws And Instrument Panel Wire
      G05205220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY  (See INSTALLATION )
  3. INSTALL ANTENNA NO. 2 CORD SUB-ASSEMBLY
    1. Install the 4 clamps and the antenna No. 2 cord sub-assembly.

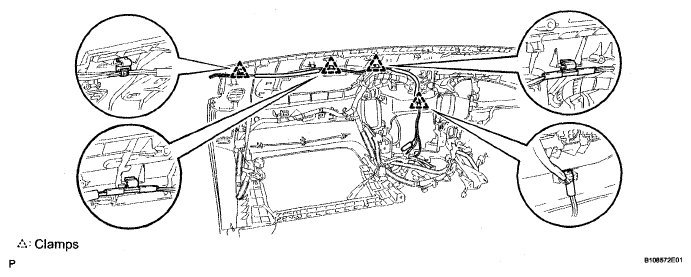

      Fig 2: Identifying Clamps And Antenna No. 2 Cord Sub-Assembly
      G05205222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NAVIGATION ANTENNA (w/ Navigation System)  (See INSTALLATION )
  5. INSTALL INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER
    1. Install the 3 screws < H > and the instrument panel bracket sub-assembly center.
      Fig 3: Locating Instrument Panel Bracket Sub-Assembly Center Screws
      G05205218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NETWORK GATEWAY ECU
    1. Install the network gateway ECU with the bolt.
    2. Connect the connector.
      Fig 4: Locating Network Gateway ECU Connector And Bolt
      G05205217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INSTRUMENT PANEL FINISH PANEL NO. 3 RETAINER LOWER
    1. Install the 2 screws < H > and the instrument panel finish panel No. 3 retainer lower.
      Fig 5: Locating Instrument Panel Finish Panel No. 3 Retainer Lower Screws
      G05205216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL INSTRUMENT FINISH PANEL NO. 2 RETAINER LOWER
    1. Install the nut < J > and the instrument finish panel No. 2 retainer lower.
      Fig 6: Locating Instrument Finish Panel No. 2 Retainer Lower Nut
      G05205215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL INSTRUMENT FINISH PANEL NO. 1 RETAINER LOWER
    1. Install the nut < J > and the instrument finish panel No. 1 retainer lower.
      Fig 7: Locating Instrument Finish Panel No. 1 Retainer Lower Nut
      G05205214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
    1. Install the 2 screws < H > and the instrument panel No. 1 register assembly.
      Fig 8: Locating Instrument Panel No. 1 Register Assembly Screws
      G05205228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY LOWER
    1. Install the 2 screws < H > and the instrument panel No. 1 register assembly lower.
      Fig 9: Locating Instrument Panel No. 1 Register Assembly Lower Screws
      G05205212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL HEATER TO REGISTER CENTER SUB DUCT
    1. Install the 4 screws < H > and the heater to register center sub duct.
      Fig 10: Locating Heater To Register Center Sub Duct Screws
      G05205211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL HEATER TO REGISTER NO. 1 DUCT
    1. Install the 3 screws < H >.
    2. Install the clip and the heater to register No. 4 duct.
      Fig 11: Locating Heater To Register No. 4 Duct Screws And Clip
      G05205210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL HEATER TO REGISTER NO. 4 DUCT

    HINT:

    Use the same procedures for the heater to register No. 4 duct and the heater to register No. 1 duct.

  15. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the 7 screws < H > and the defroster nozzle assembly.
      Fig 12: Locating Defroster Nozzle Assembly Screws
      G05205232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL SIDE DEFROSTER NO. 2 NOZZLE DUCT
    1. Install the screw < H > and the side defroster No. 2 nozzle duct.
      Fig 13: Locating Side Defroster No. 2 Nozzle Duct Screw
      G05205208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL SIDE DEFROSTER NO. 1 NOZZLE DUCT
    1. Install the screw < H > and the side defroster No. 1 nozzle duct.
      Fig 14: Locating Side Defroster No. 1 Nozzle Duct Screw
      G05205207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL INSTRUMENT PANEL NO. 1 PIN
    1. Install the 3 screws < H > and the 3 instrument panel No. 1 pins.
      Fig 15: Locating Instrument Panel No. 1 Pin Screws
      G05205206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL COOLER (SOLAR SENSOR) THERMISTOR
    1. Install the cooler (solar sensor) thermistor.
    2. Connect the connector.
  20. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
    1. Install the automatic light control sensor.
    2. Connect the connector.
  21. INSTALL INSTRUMENT PANEL NO. 2 FINISH PANEL GARNISH
    1. Engage the 4 clips and install the instrument panel No. 2 finish panel garnish.
      Fig 16: Identifying Instrument Panel No. 2 Finish Panel Garnish Clips
      G05205203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
