Instrument Panel Safety Pad: Disassembly

1. Disengage the 4 clips and remove the instrument cluster No. 2 finish panel garnish.
   Fig 1: Identifying Instrument Panel No. 2 Finish Panel Garnish Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Using a screwdriver, remove the automatic light control sensor.

   HINT:

   Tape the screwdriver tip before use.

   Fig 2: Removing Automatic Light Control Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the cooler (solar sensor) thermistor.
   NOTE: Do not pry the cooler (solar sensor) thermistor off from the upper position.
   Fig 3: Removing Cooler (Solar Sensor) Thermistor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 screws < H > and the 3 instrument panel No. 1 pins.

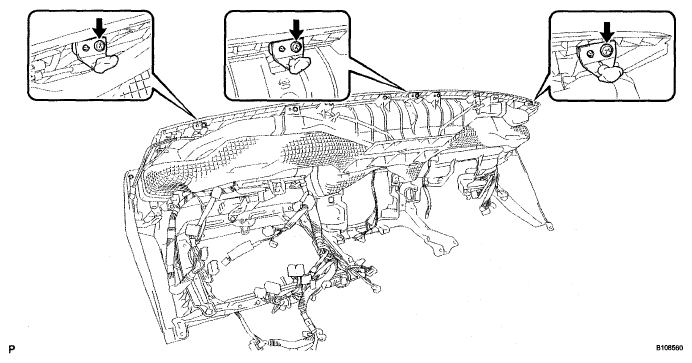

   Fig 4: Locating Instrument Panel No. 1 Pin Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw < H > and the side defroster No. 1 nozzle duct.
   Fig 5: Locating Side Defroster No. 1 Nozzle Duct Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw < H > and the side defroster No. 2 nozzle duct.
   Fig 6: Locating Side Defroster No. 2 Nozzle Duct Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 7 screws < H > and the defroster nozzle assembly.
   Fig 7: Locating Defroster Nozzle Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the clip.
2. Remove the 3 screws < H > and the heater to register No. 1 duct.
   Fig 8: Locating Heater To Register No. 4 Duct Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the heater to register No. 4 duct and the heater to register No. 1 duct.

1. Remove the 4 screws < H > and the heater to register center sub duct.
   Fig 9: Locating Heater To Register Center Sub Duct Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws < H > and the instrument panel No. 1 register assembly lower.
   Fig 10: Locating Instrument Panel No. 1 Register Assembly Lower Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws < H > and the instrument panel No. 1 register assembly.
   Fig 11: Locating Instrument Panel No. 1 Register Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut < J > and the instrument finish panel No. 1 retainer lower.
   Fig 12: Locating Instrument Finish Panel No. 1 Retainer Lower Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut < J > and the instrument finish panel No. 2 retainer lower.
   Fig 13: Locating Instrument Finish Panel No. 2 Retainer Lower Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws < H > and the instrument panel finish panel No. 3 retainer lower.
   Fig 14: Locating Instrument Panel Finish Panel No. 3 Retainer Lower Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the bolt and the network gateway ECU.
   Fig 15: Locating Network Gateway ECU Connector And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 screws < H > and the instrument panel bracket sub-assembly center.
   Fig 16: Locating Instrument Panel Bracket Sub-Assembly Center Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

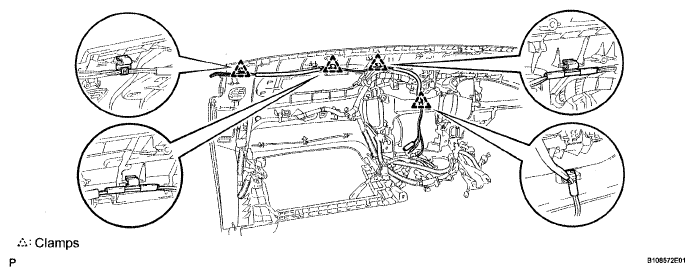

1. Remove the 4 clamps and the antenna No. 2 cord sub-assembly.
   Fig 17: Identifying Clamps And Antenna No. 2 Cord Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

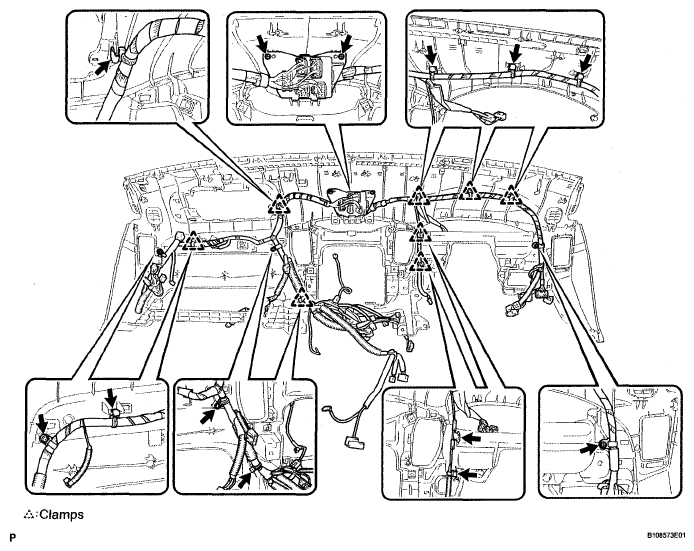

1. Remove the 8 clamps, 5 screws < H >, and the instrument panel wire.
   Fig 18: Identifying Clamps, Screws And Instrument Panel Wire
