Brake Booster: Installation

1. Install the grommet and check the valve assembly.
2. Install a new brake booster gasket to the brake booster assembly.
3. Install the push rod clevis and lock nut to the brake booster assembly.

   HINT:

   After adjusting the brake pedal height, torque the lock nut.

4. Install the brake booster assembly with the 4 nuts.

   Torque: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

   Fig 1: Locating Nuts And Push Rod Clevis

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

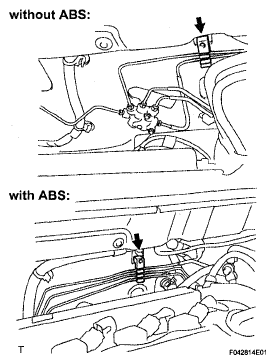

5. Install the 2 or 3 brake tubes to the clamp.
   Fig 2: Locating Brake Tubes To Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the vacuum hose to the brake booster assembly.
7. Using SST, connect the front brake tube No. 5.

   SST 09023-00101

   Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

   NOTE: Make sure that the grommet is installed correctly.
   Fig 3: Locating Front Brake Tube No. 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

1. Install the air cleaner case with 3 bolts, then install the air cleaner element to the air cleaner case sub-assembly.

1. Fill the reservoir with brake fluid (see BLEEDING ).

1. Bleed the master cylinder (see BLEEDING ).

SST 09023-00101

1. Bleed the brake line (see BLEEDING ).

1. Check and adjust the brake pedal height (see ADJUSTMENT ).

1. Check the pedal free play (see ADJUSTMENT ).

1. Check the pedal reserve distance (see ADJUSTMENT ).

1. Check the fluid level in reservoir (see BLEEDING  ).

1. Inspect the brake booster assembly (see ON-VEHICLE INSPECTION ).
