Timing Chain: Removal
- DISCONNECT BATTERY NEGATIVE TERMINAL
- REMOVE FRONT WHEEL RH
- REMOVE ENGINE UNDER COVER RH
- REMOVE CYLINDER HEAD COVER NO.2
- Remove the 2 nuts and 2 clips, then remove the cylinder head cover No. 2.
- DRAIN ENGINE COOLANT
- Drain the engine coolant (See ON-VEHICLE INSPECTION ).
- REMOVE FAN AND GENERATOR V BELT
- Remove the fan and generator V belt (See REMOVAL ).
- SEPARATE VANE PUMP ASSEMBLY
- Separate the vane pump assembly (See REMOVAL ).
- REMOVE GENERATOR ASSEMBLY
- Remove the generator assembly (See REMOVAL ).
- REMOVE ENGINE MOUNTING INSULATOR RH
- Remove the 2 bolts, then remove the oil reservoir bracket No. 1.
- Place a wooden block on a jack underneath the engine.
- Remove the 4 bolts and 2 nuts, then remove the engine mounting insulator RH.
- REMOVE IGNITION COIL ASSEMBLY
- Disconnect the 4 ignition coil connectors.
- Remove the 2 nuts, then separate the engine wire.
- Remove the 4 bolts, then remove the 4 ignition coils.
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
- Disconnect the ventilation hose from the cylinder head cover.
- Disconnect the ventilation hose No. 2 from the ventilation valve.
- Remove the 3 clamps of the engine wire from the clamp bracket.
- Remove the 9 bolts, 2 seal washers, 2 nuts and 3 clamp brackets, then remove the cylinder head cover.
- REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
- Remove the bolt and nut, then remove the V-ribbed belt tensioner.
HINT:
Jack the engine up and down to remove the bolt.
- REMOVE ENGINE MOUNTING BRACKET RH
- Remove the 3 bolts, then remove the engine mounting bracket RH.
- REMOVE WATER PUMP ASSEMBLY
- Remove the water pump assembly (See REMOVAL ).
- SEPARATE CRANKSHAFT POSITION SENSOR
- Remove the 2 bolts, then separate the crankshaft position sensor.

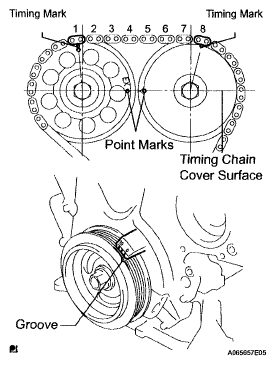

- SET NO. 1 CYLINDER TO TDC / COMPRESSION
- Turn the crankshaft pulley until its groove and timing mark "0" of the timing chain cover are aligned.
- Check that the point marks of the camshaft timing gears are in a straight line on the timing chain cover surface as shown in the illustration.
If not, turn the crankshaft 1 revolution (360°) to align the marks as above.
- REMOVE CRANKSHAFT PULLEY
- Using SST, remove the crankshaft pulley bolt.
SST 09960-10010 (09962-01000, 09963-01000)
- Remove the crankshaft pulley from the crankshaft.
- Using SST, remove the crankshaft pulley bolt.
- REMOVE CHAIN TENSIONER ASSEMBLY NO.1
- Remove the 2 nuts, then remove the chain tensioner.
NOTE: Do not turn the crankshaft without the chain tensioner. - REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
- Remove the 10 bolts and 2 nuts.
- Using a "TORX" wrench socket (E8), remove the stud bolt.
- Remove the timing chain cover by prying the portions between the timing chain cover, cylinder head and cylinder block with a screwdriver.
NOTE: Be careful not to damage the contact surfaces of the timing chain cover, cylinder head and cylinder block. - REMOVE TIMING CHAIN OR BELT COVER OIL SEAL
- Place the timing chain cover on wooden blocks.
- Using a screwdriver, remove the oil seal.
- REMOVE CRANKSHAFT POSITION SENSOR PLATE NO.1
- Remove the crankshaft position sensor plate from the crankshaft.
- REMOVE CHAIN TENSIONER SLIPPER
- Remove the bolt, then remove the chain tensioner slipper.
- REMOVE CHAIN SUB-ASSEMBLY
- Using 2 screwdrivers, pry out the chain with the crankshaft timing gear, as shown in the illustration.NOTE:
- Use a shop rag to protect the engine.
- If revolving the camshafts with the chain off the gears, turn the crankshaft 1/4 revolution to prevent the valves from coming into contact with the pistons.
- Using 2 screwdrivers, pry out the chain with the crankshaft timing gear, as shown in the illustration.
