Instrument Panel Safety Pad: Removal

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with an alphabetical code in the table below.

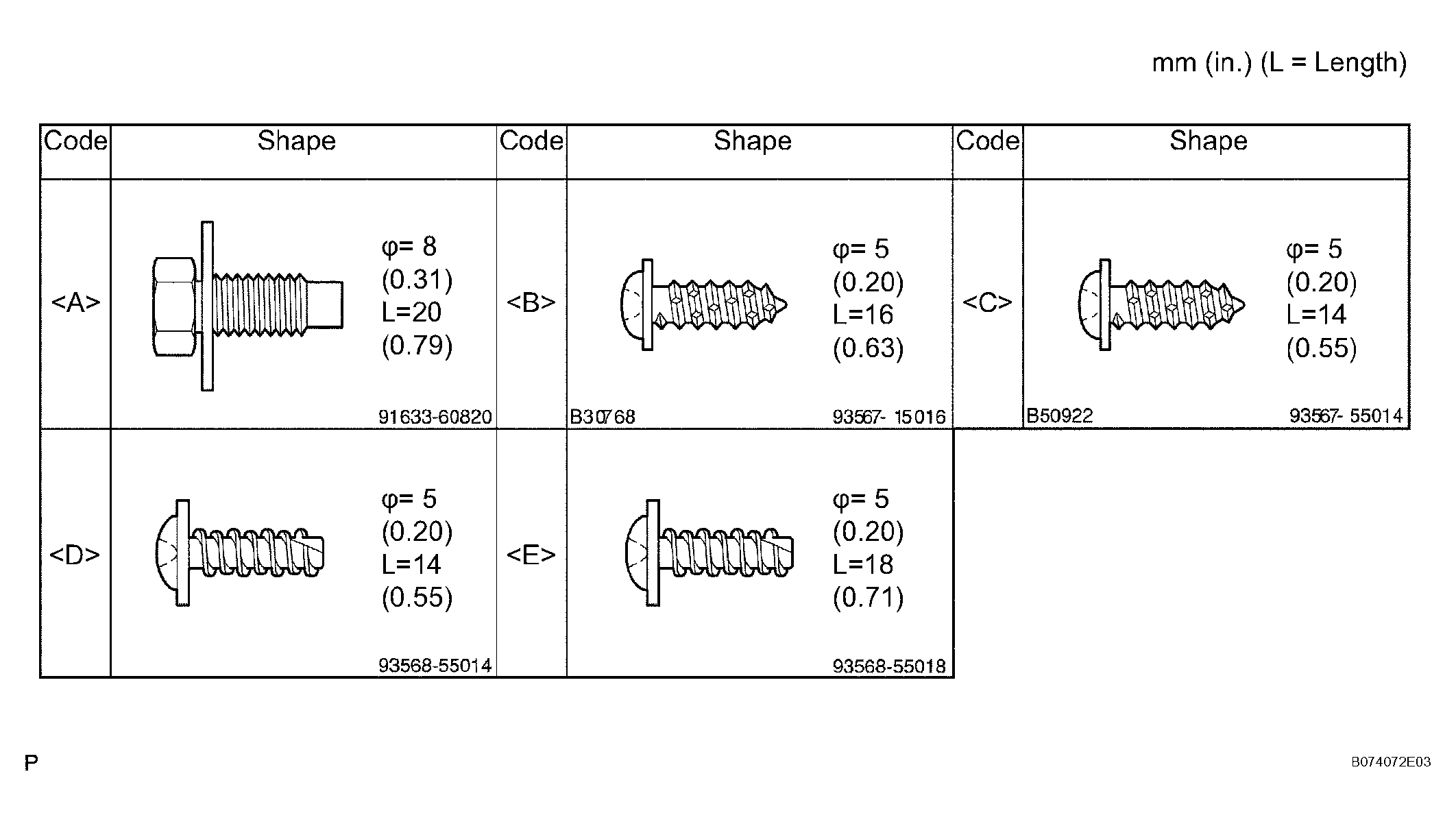

    Fig 1: Identifying Bolts, Nuts & Screws Table
    G04476880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Detach the 2 claws and 4 clips, and remove the instrument panel register.
      Fig 2: Detaching Claws, Clips And Removing Instrument Panel Register
      G04476881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 screws.
    2. Disconnect the hood lock control cable.
    3. Detach the 4 claws and 5 clips.
    4. Disconnect all connectors and remove the instrument panel finish panel.
      5. Fig 3: Removing Lower Instrument Panel Finish Panel Sub-Assembly
      G04476882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Detach the 3 claws and 4 clips.
    2. Disconnect the connector and remove the instrument panel finish panel.
      3. Fig 4: Removing Upper Instrument Panel Finish Panel Sub-Assembly
      G04476883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Detach the claw and 5 clips.
    2. Disconnect the connector and remove the instrument panel register.
      3. Fig 5: Removing No. 3 Instrument Panel Register Assembly
      G04476884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Detach the 6 clips and remove the instrument panel register.
      2. Fig 6: Removing No. 4 Instrument Panel Register Assembly
      G04476885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Detach the 2 claws and 4 clips, and remove the instrument panel register.
      2. Fig 7: Removing No. 2 Instrument Panel Register Assembly
      G04476886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE MULTI-DISPLAY ASSEMBLY
  10. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Holding the part indicated in the illustration, remove the glove compartment door stopper from the glove compartment door.
      Fig 8: Removing Glove Compartment Door Stopper Sub-Assembly
      G04476887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. While pushing in the sides of the glove compartment door as indicated by the arrows in Fig 9, open the door to release it from the 2 stoppers.
    2. Open the door until it is horizontal.
      Fig 9: Removing Glove Compartment Door Assembly
      G04476888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the glove compartment door toward the rear of the vehicle to detach the 2 hinges and remove the glove compartment door.
  12. REMOVE INSTRUMENT PANEL CUSHION
  13. REMOVE INSTRUMENT CLUSTER FINISH PANEL END
  14. REMOVE INSTRUMENT PANEL HOLE COVER
    1. Using a screwdriver, remove the 2 instrument panel hole covers.

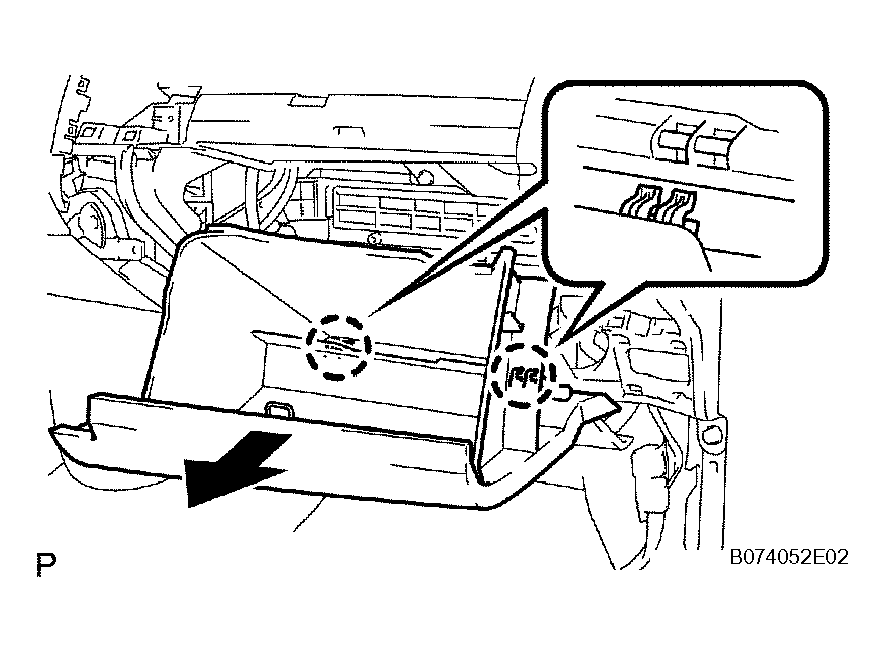

      Fig 10: Removing Instrument Panel Hole Covers
      G04476889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE GLOVE COMPARTMENT DOOR
    1. Remove the 2 screws.
    2. Detach the claw and 2 clips, and remove the glove compartment door.
      3. Fig 11: Removing Glove Compartment Door
      G04476890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (w/JBL Sound System)
  17. REMOVE FRONT PILLAR GARNISH CORNER PIECE LH (See  REMOVAL  )
  18. REMOVE FRONT PILLAR GARNISH CORNER PIECE RH (See  REMOVAL  )
  19. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  20. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  21. DISCONNECT PASSENGER AIRBAG CONNECTOR
  22. REMOVE INSTRUMENT PANEL SAFETY PAD
    1. Remove the 3 screws.
    2. Remove the 2 bolts.
    3. Pull up the instrument panel to detach the 6 claws and 3 clips.
    4. Remove the instrument panel.

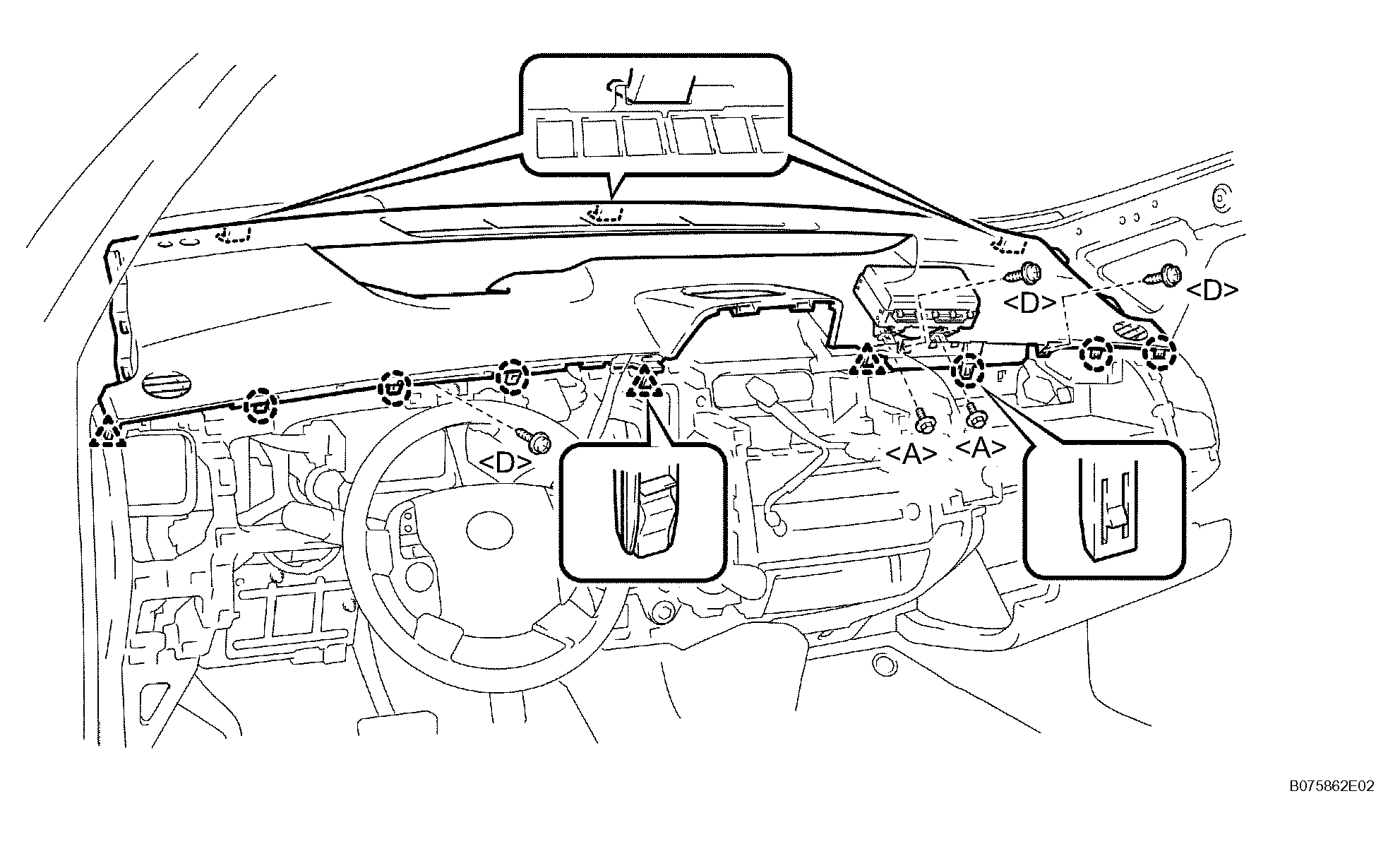

      5. Fig 12: Removing Instrument Panel Safety Pad
      G04476891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
