Roof Headlining: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a screwdriver, detach the 8 claws and 2 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 1: Removing Front Door Scuff Plate
    G04477213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE COWL SIDE TRIM BOARD LH
    1. Using a screwdriver, detach the claw and 2 clips, and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

  5. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described for the LH side.

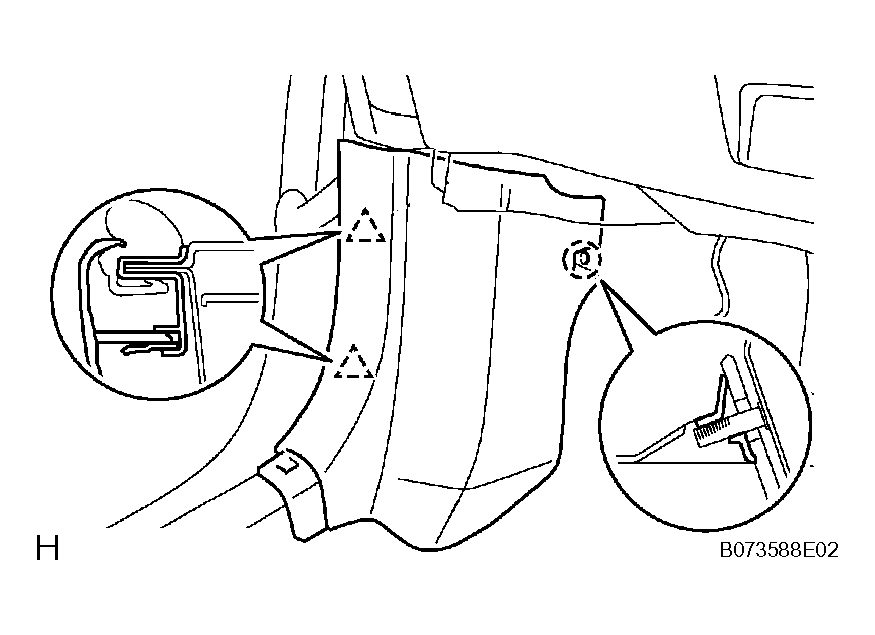

    Fig 2: Removing Cowl Side Trim Board
    G04477214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  7. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  8. REMOVE FRONT PILLAR GARNISH CORNER PIECE LH
    1. Put protective tape as shown in Fig 3.

      Standard measurement

      STANDARD MEASUREMENT

      Area Specified Condition
      A 2.0 mm (0.079 in.)
      B 10.0 mm (0.394 in.)
      C 50.0 mm (1.969 in.)

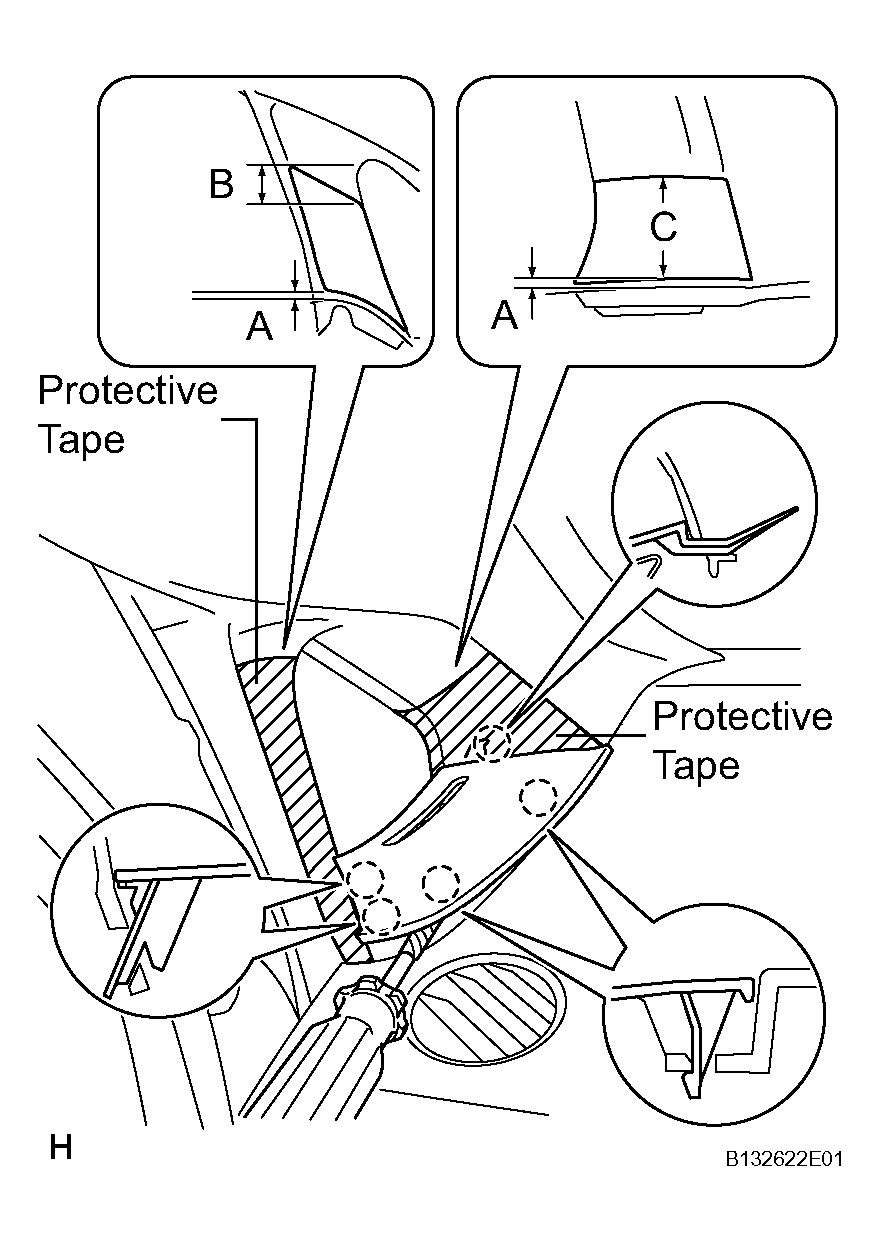

      Fig 3: Removing Front Pillar Garnish Corner Piece LH
      G04477215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 5 claws and remove the corner piece.

      HINT:

      Tape the screwdriver tip before use.

  9. REMOVE FRONT PILLAR GARNISH CORNER PIECE RH

    HINT:

    Use the same procedures described for the LH side.

  10. REMOVE FRONT PILLAR GARNISH LH
    1. w/o Curtain Shield Airbag:

      Using a screwdriver, detach the 2 clips and remove the pillar garnish.

      HINT:

      Tape the screwdriver tip before use.

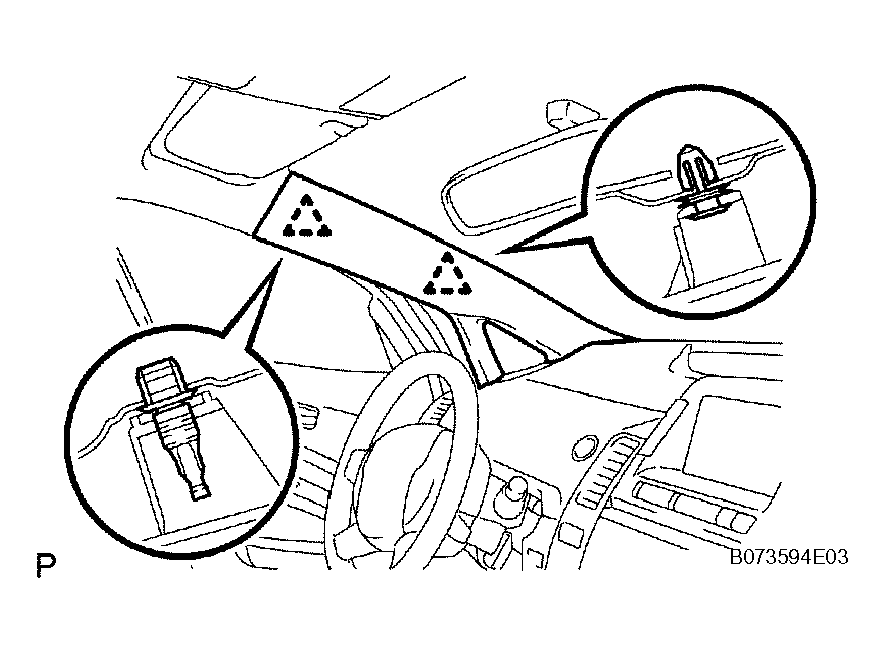

      Fig 4: Removing Front Pillar Garnish LH (W/O Curtain Shield Airbag)
      G04477216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain Shield Airbag:

      Remove the pillar garnish.

      1. Pull the pillar garnish so that clip B detaches, the base of clip A detaches, and the tip of clip A locks in the pillar garnish's hole.
      2. Using needle-nose pliers, rotate clip A 90°. Then pull the pillar garnish to release the tip of clip A from the pillar garnish.
      3. Pull the pillar garnish in the direction indicated by the arrow in the illustration to detach the claw.
        Fig 5: Removing Front Pillar Garnish LH (W/ Curtain Shield Airbag) (1 Of 2)
        G04477217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain Shield Airbag:

      Protect the curtain shield airbag LH.

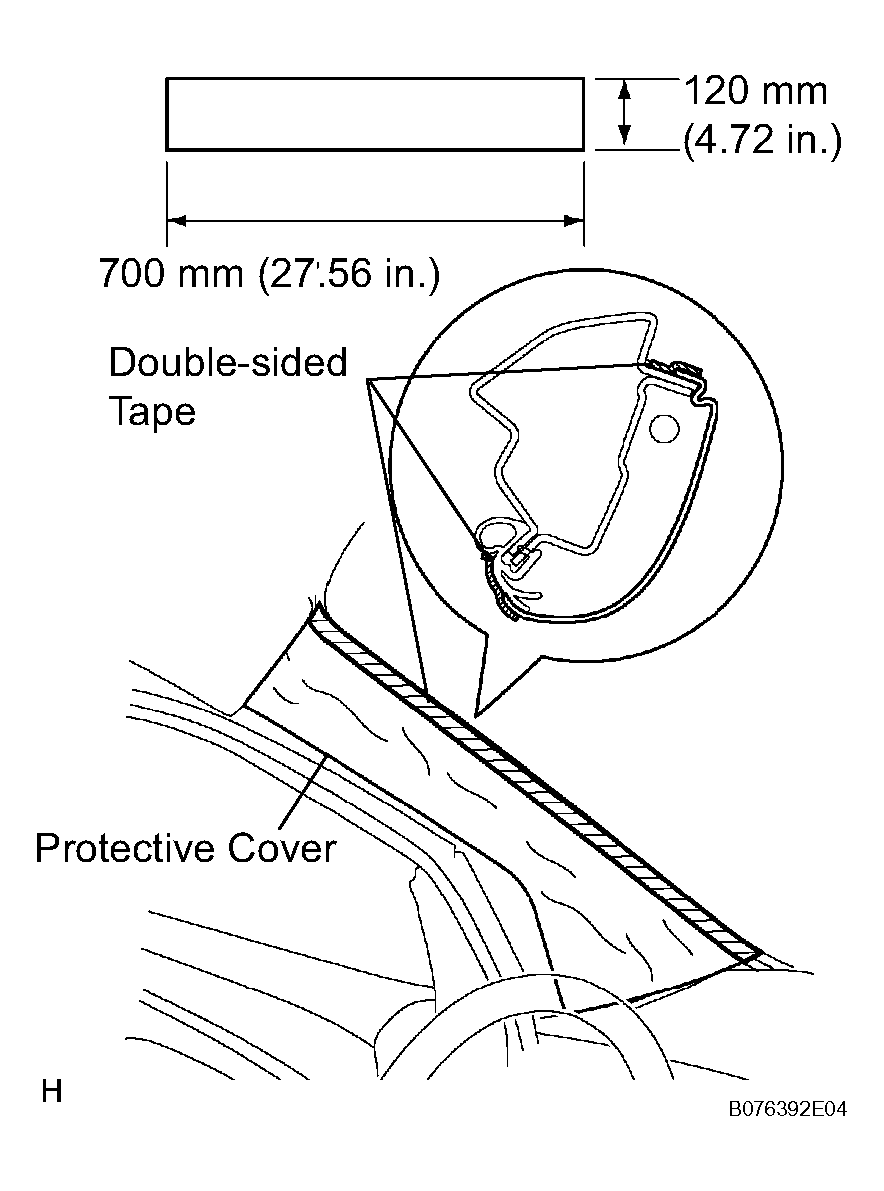

      1. Thoroughly cover the airbag with cloth or nylon that is approximately 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with double-sided tape, as shown in Fig 6.
        NOTE: Cover the curtain shield airbag with the protective cover as soon as the pillar garnish is removed.
      Fig 6: Removing Front Pillar Garnish LH (W/ Curtain Shield Airbag) (2 Of 2)
      G04477218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  12. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  13. REMOVE REAR DOOR SCUFF PLATE LH
    1. Using a screwdriver, detach the 6 claws and clip, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

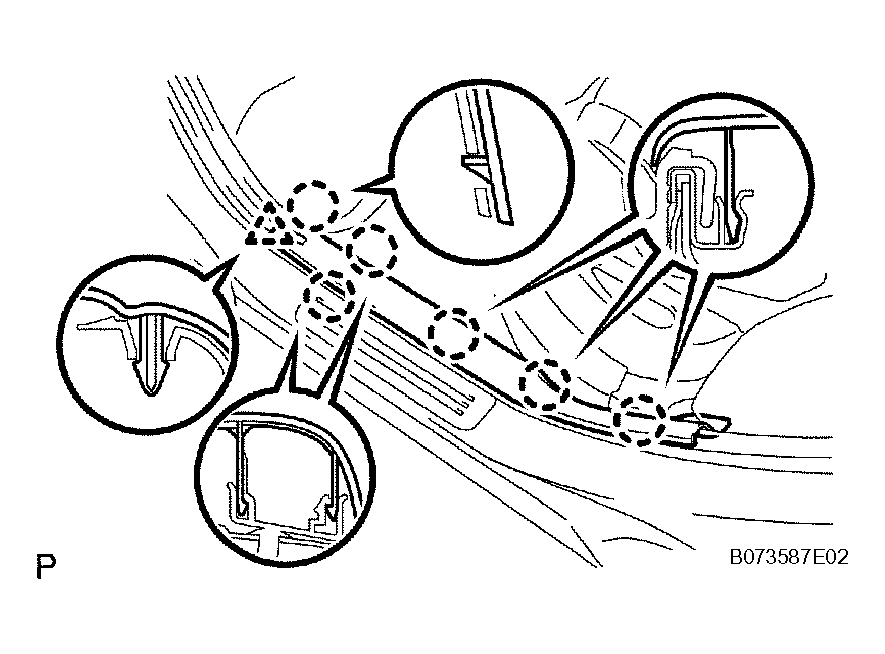

    Fig 7: Removing Rear Door Scuff Plate
    G04477219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  15. REMOVE REAR SIDE SEATBACK FRAME LH
    1. Remove the bolt.
    2. Detach the claw and remove the frame.

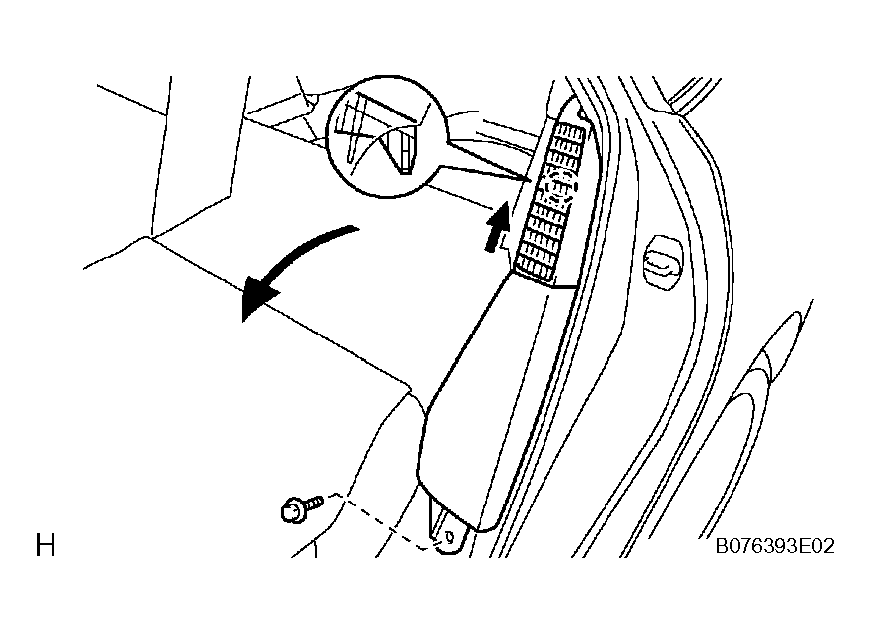

    Fig 8: Removing Rear Side Seatback Frame
    G04477220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR SIDE SEATBACK FRAME RH

    HINT:

    Use the same procedures described for the LH side.

  17. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  18. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  19. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Using a screwdriver, detach the 3 claws and remove the anchor cover.

      HINT:

      Tape the screwdriver tip before use.

    Fig 9: Removing Lap Belt Outer Anchor Cover
    G04477221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the floor anchor.
  21. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Remove the bolt and disconnect the floor anchor.
  22. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Using a screwdriver, detach the 2 claws and 2 clips, and remove the lower garnish.

      HINT:

      Tape the screwdriver tip before use.

  23. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

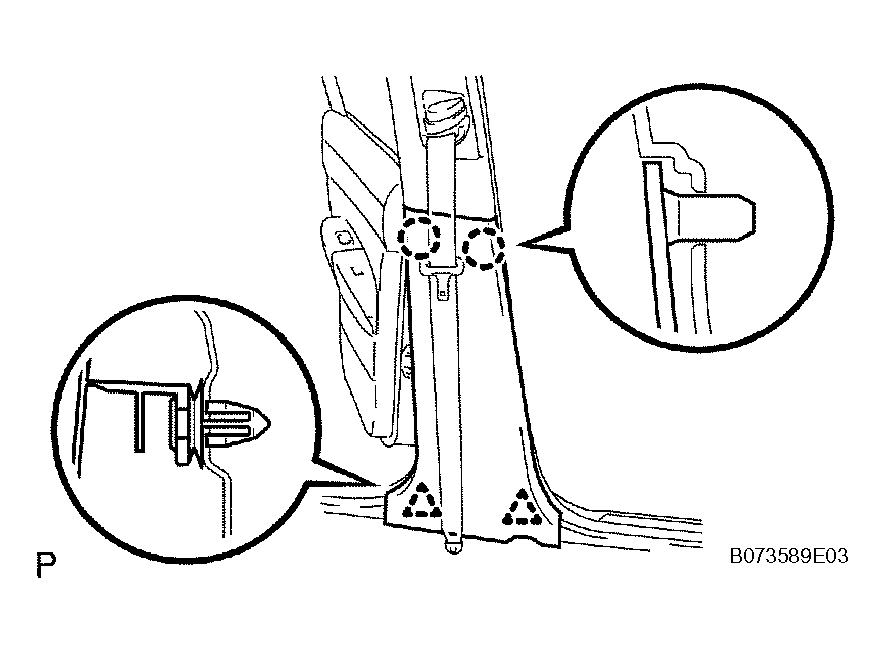

    Fig 10: Removing Center Pillar Lower Garnish LH
    G04477222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Using a screwdriver, detach the clip and remove the pillar garnish.

      HINT:

      Tape the screwdriver tip before use.

    Fig 11: Removing Center Pillar Garnish
    G04477223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  26. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the floor anchor.
  27. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
    1. Remove the bolt and disconnect the floor anchor.
  28. REMOVE BACK DOOR WEATHERSTRIP
  29. REMOVE TONNEAU COVER ASSEMBLY
  30. REMOVE REAR NO. 2 FLOOR BOARD
  31. REMOVE REAR NO. 3 FLOOR BOARD
  32. REMOVE REAR NO. 4 FLOOR BOARD
  33. REMOVE REAR DECK FLOOR BOX
  34. REMOVE DECK FLOOR BOX LH
  35. REMOVE REAR NO. 1 FLOOR BOARD
    1. Remove the 2 bolts and the 2 rope hooks.
    2. Using a clip remover, remove the 2 clips.
    3. Using a screwdriver, detach the 5 clips and remove the floor board.

      HINT:

      Tape the screwdriver tip before use.

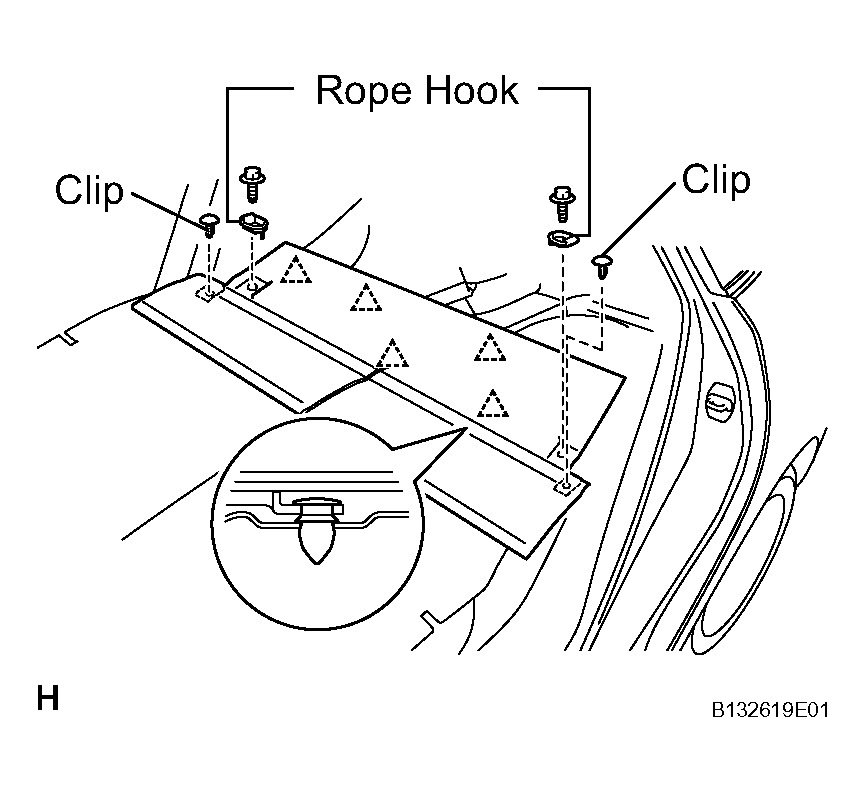

      Fig 12: Removing Rear No. 1 Floor Board
      G04477224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR DECK TRIM COVER
    1. Using a screwdriver, detach the 4 claws and remove the trim cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 13: Removing Rear Deck Trim Cover
      G04477225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the screw and 2 bolts.
    2. Using a clip remover, remove the clip.
    3. Using a screwdriver, detach the 7 claws and 3 clips, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 14: Removing Deck Trim Side Panel Assembly LH
      G04477226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the screw and 2 bolts.
    2. Using a clip remover, remove the clip.
    3. Using a screwdriver, detach the 6 claws and 2 clips, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 15: Removing Deck Trim Side Panel Assembly RH
      G04477227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Using a screwdriver, detach the 6 clips and claw, and remove the inner garnish.

      HINT:

      Tape the screwdriver tip before use.

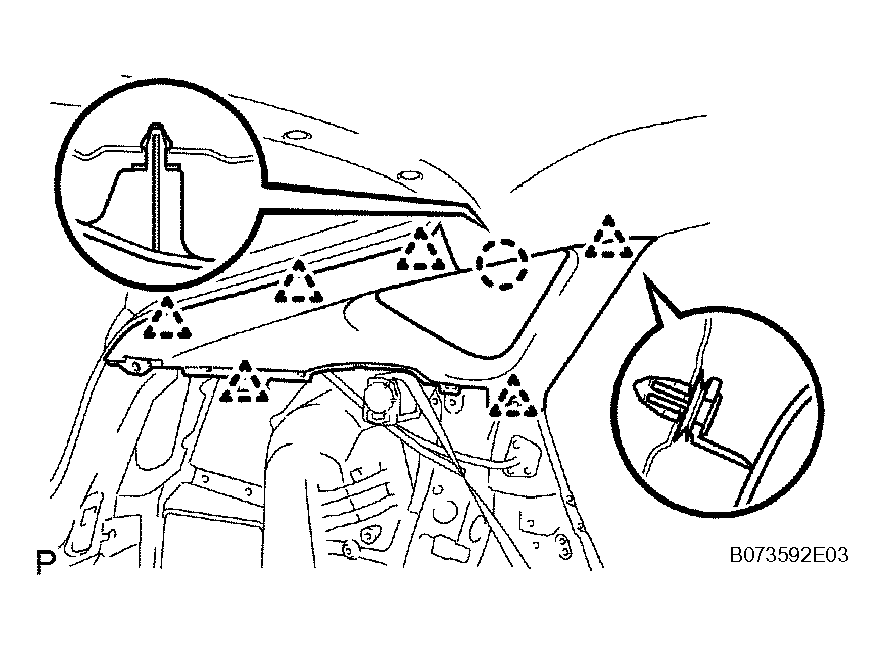

    Fig 16: Removing Roof Side Inner Garnish Assembly
    G04477228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  41. REMOVE MAP LIGHT ASSEMBLY
    1. Remove the 2 screws.
    2. Using a moulding remover, detach the 4 clips and remove the map light.
    3. Disconnect the map light connector.
      Fig 17: Removing Map Light Assembly
      G04477229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the room light lens.

      HINT:

      Tape the screwdriver tip before use.

      Fig 18: Removing Room Light Lens
      G04477230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 4 claws and remove the room light.

      HINT:

      Tape the screwdriver tip before use.

      Fig 19: Removing Room Light
      G04477231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the room light connector.
  43. REMOVE ASSIST GRIP COVER
    1. Using a screwdriver, detach the 4 claws and remove the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

      Fig 20: Removing Assist Grip Cover
      G04477232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the assist grip.

      HINT:

      Tape the screwdriver tip before use.

      Fig 21: Removing Assist Grip Sub-Assembly
      G04477233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws.
    2. Disconnect the connector and remove the visor.
    Fig 22: Removing Visor Assembly
    G04477234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  47. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.
      Fig 23: Removing Visor Holder
      G04477235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE ROOF HEADLINING ASSEMBLY
    1. Remove the 3 clips and headlining.
    2. Remove the silencer pads and headlining pad from the headlining.
    3. Remove the wire harness.
      Fig 24: Removing Roof Headlining Assembly
      G04477236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
