Telltale Light: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the instrument panel (see REMOVAL ).
  3. REMOVE TELLTALE LIGHT ASSEMBLY
    1. Disconnect the connector.
    2. Detach the 2 claws and remove the telltale light.

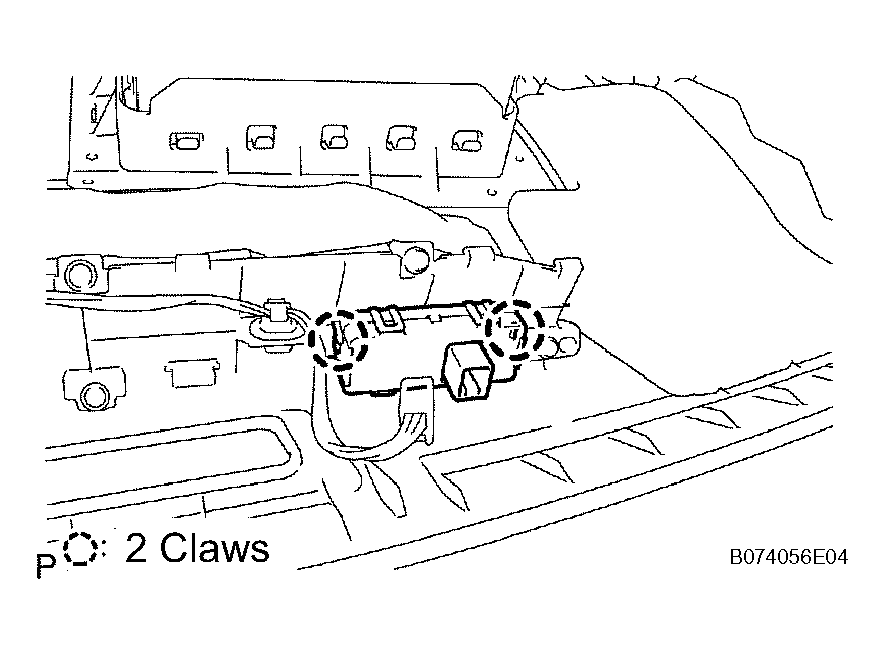

      Fig 1: Removing Telltale Light Assembly
      G04476721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
