Rear Axle Hub & Bearing ASSY LH: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE)
   1. Remove the 2 bolts, and separate the rear disc brake caliper assy LH.

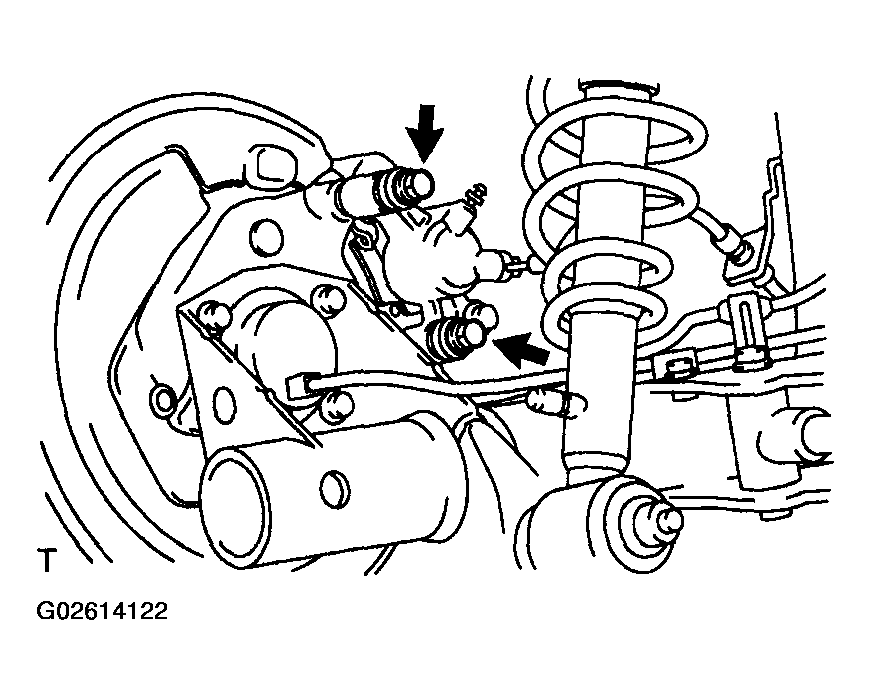

   Fig 1: Separating Rear Disc Brake Caliper Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
4. REMOVE REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
5. DISCONNECT SKID CONTROL SENSOR WIRE (W/ ABS)
6. REMOVE REAR AXLE HUB & BEARING ASSY LH
   1. Remove the 4 bolts and hub & bearing assy LH.

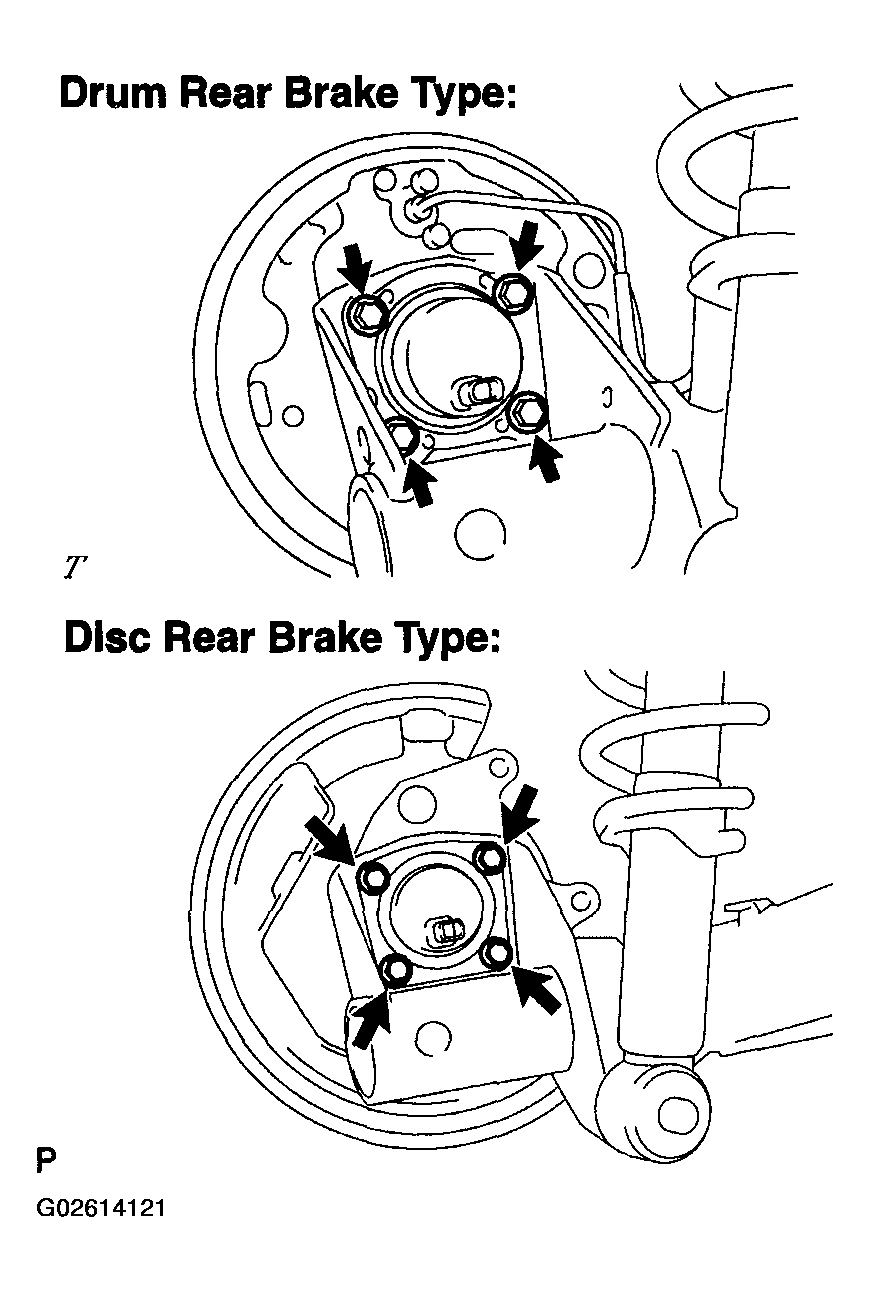

   Fig 2: Removing Bolts And Hub & Bearing Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL REAR AXLE HUB & BEARING ASSY LH
   1. Install the hub & bearing assy LH with the 4 bolts.

      Torque: 61 N.m (622 kgf.cm, 45 ft.lbf)

      Fig 3: Installing Hub & Bearing Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. CONNECT SKID CONTROL SENSOR WIRE (W/ ABS)
   NOTE: Do not twist the sensor wire when connecting it.
9. INSPECT AXLE HUB BEARING LOOSENESS (See  ON-VEHICLE INSPECTION  )
10. INSPECT AXLE HUB BEARING RUNOUT (See  ON-VEHICLE INSPECTION  )
11. INSTALL REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
12. INSTALL REAR DISC (DISC REAR BRAKE TYPE)
13. INSTALL REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE)
    1. Install the rear disc brake caliper assy LH with 2 bolts.

       Torque: 47 N.m (480 kgf.cm, 34 ft.lbf)

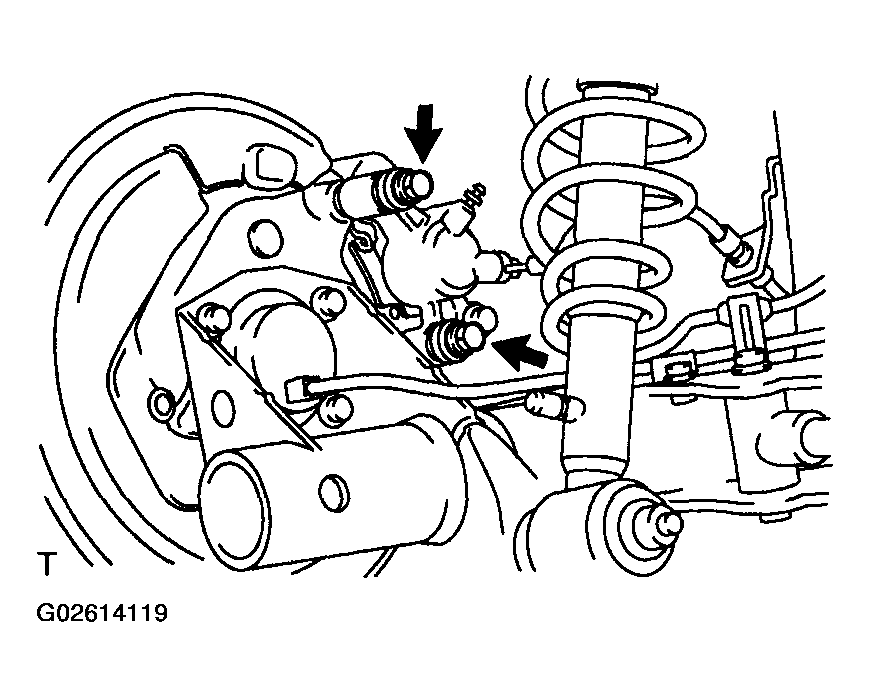

       Fig 4: Installing Rear Disc Brake Caliper Assy LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

15. CHECK ABS SPEED SENSOR SIGNAL (W/ ABS)(See  TEST MODE PROCEDURE (1ZZ-FE)  or  TEST MODE PROCEDURE (2ZZ-GE)  )
