TS Terminal Circuit: Wiring Diagram

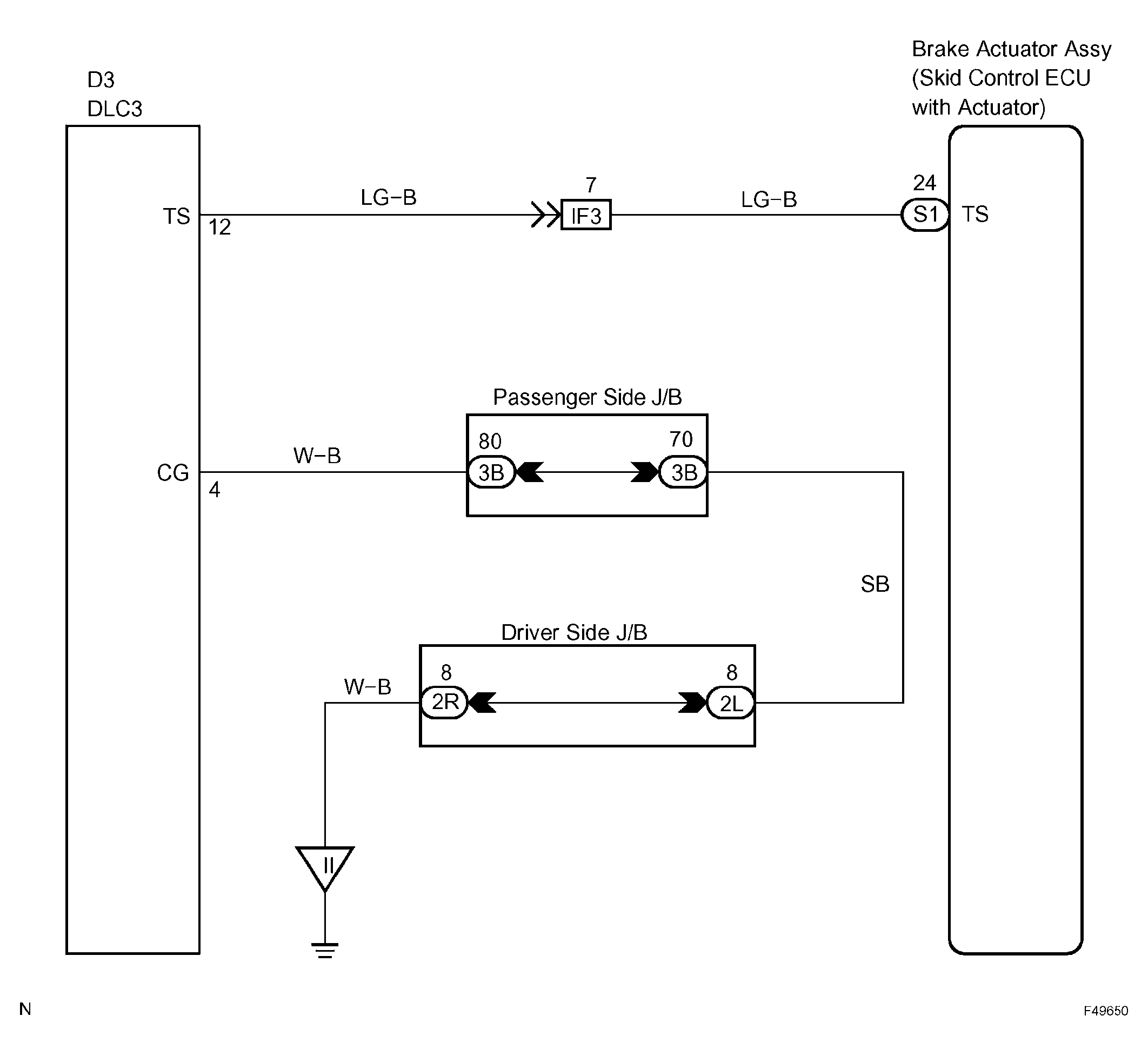

Fig 1: TS Terminal Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECTION PROCEDURE

1. INSPECT DLC3 TERMINAL VOLTAGE (Ts TERMINAL)
   1. Turn the ignition switch to the ON position.
   2. Measure the voltage according to the value(s) in DLC3 TERMINAL VOLTAGE (Ts TERMINAL)  .

   Standard:

   DLC3 TERMINAL VOLTAGE (Ts TERMINAL)



   Tester Connection	Condition	Specified Condition
   D3-12 (Ts) - D3-4 (CG)	IG switch ON	10 to 14 V

   Fig 2: Identifying DLC3 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: Go to step 3

   OK: Go to next step

2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
   1. Check the harness and connector between the skid control ECU and DLC3.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (TS CIRCUIT)

   OK: REPLACE BRAKE ACTUATOR ASSY (See step 3 in REPLACEMENT  )

3. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
   1. Measure the resistance according to the value(s) in DLC3 - BODY GROUND  .

   Standard:

   DLC3 - BODY GROUND



   Tester Connection	Specified Condition
   D3-4 (CG) - Body ground	Below 1

   Fig 3: Identifying DLC3 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

   OK: Go to next step

4. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
   1. Check the harness and connector between the skid control ECU and DLC3.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (TC CIRCUIT)

   OK: REPLACE BRAKE ACTUATOR ASSY (See step 3 in  REPLACEMENT  )
