Inspection Procedure

NOTE: When replacing the brake actuator assy, perform zero point calibration (See CALIBRATION ).
  1. INSPECT SLIP INDICATOR LIGHT

    WHEN USING HAND-HELD TESTER:

    1. Connect the hand-held tester to the DLC3.
    2. Start the engine.
    3. Select the "SLIP INDI LIGHT" in the ACTIVE TEST and operate the SLIP indicator light on the hand-held tester.
      SLIP INDICATOR LIGHT (USING HAND-HELD TESTER)

      Item Vehicle Condition / Test Details Diagnostic Note
      SLIP INDI LIGHT Turns SLIP indicator light ON / OFF Observe combination meter
    4. Check that "ON" and "OFF" of the SLIP indicator light can be shown on the combination meter by the hand-held tester.

    OK:

    The SLIP indicator light is turned ON or OFF in accordance with the hand-held tester.

    WHEN NOT USING HAND-HELD TESTER:

    1. Turn the ignition switch off and disconnect the connector from the skid control ECU.
    2. Ground terminal IND of the skid control ECU.
    3. Turn the ignition switch to the ON position.
    4. Check that the SLIP indicator light comes on.

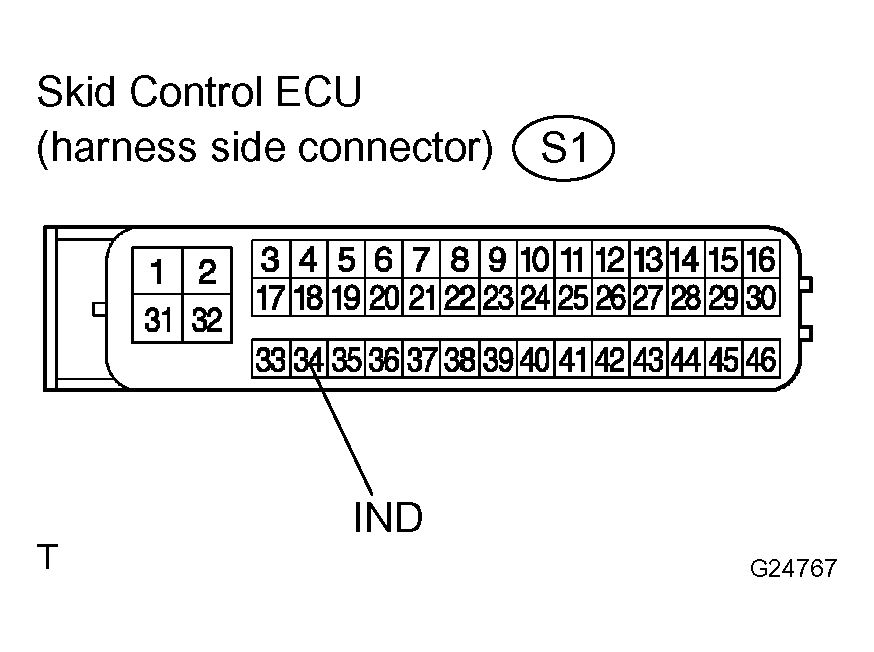

    5. Fig 1: View Of Skid Control ECU Connector Terminals
      G04390100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    The light ON or OFF in accordance with the connecting condition of terminals GND and IND.

    NG: Go to step 2

    OK: REPLACE BRAKE ACTUATOR ASSY (See step 3 in REPLACEMENT  )

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the skid control ECU connector S1 and combination meter connector C8.
    2. Measure the resistance according to the value(s) in SKID CONTROL ECU - COMBINATION METER (1 OF 2)  .

      Standard:

      SKID CONTROL ECU - COMBINATION METER (1 OF 2)

      Tester Connection Specified Condition
      S1-34 (IND) - C8-13 Below 1
    3. Measure the resistance according to the value(s) in SKID CONTROL ECU - COMBINATION METER (2 OF 2)  .

    Standard:

    SKID CONTROL ECU - COMBINATION METER (2 OF 2)

    Tester Connection Specified Condition
    S1-34 (IND) - Body ground 10 k or higher

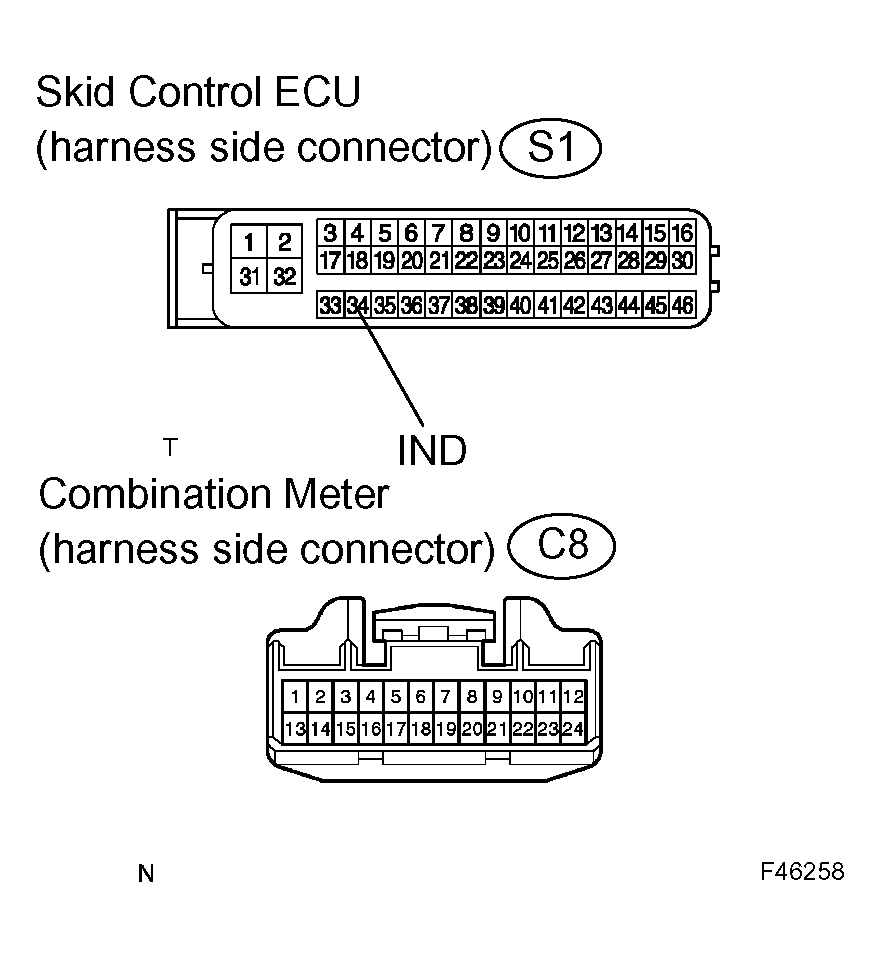

    Fig 2: Checking Harness And Connector (Skid Control ECU - Combination Meter)
    G04390101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT COMBINATION METER ASSEMBLY (SLIP INDICATOR LIGHT)
    1. Check combination meter assy (See COMBINATION METER ).

    NG: REPAIR OR REPLACE COMBINATION METER ASSEMBLY (See step 11 in REPLACEMENT  )

    OK: REPLACE BRAKE ACTUATOR ASSY (See step 3 in REPLACEMENT  )
