Inspection Procedure

HINT:

Start the inspection from step 1 when using the hand-held tester and start from step  2 when not using the hand-held tester.

1. PERFORM ACTIVE TEST BY HAND-HELD TESTER (SKID CONTROL BUZZER)
   1. Connect the hand-held tester to the DLC3.
   2. Start the engine.
   3. Select the item "VSC/BR WARN BUZ" in the ACTIVE TEST and operate the skid control buzzer on the hand-held tester.
      SKID CONTROL BUZZER



      Item	Vehicle Condition / Test Details	Diagnostic Note
      VSC / BR WARN BUZ	Turns VSC / BRAKE warning buzzer ON / OFF	Buzzer can be heard

   4. Check that skid control buzzer sounds "ON" and "OFF" with the hand-held tester.

   OK:

   The skid control buzzer sounds can be heard.

   NG: Go to step 2

   OK: REPLACE BRAKE ACTUATOR ASSY (See step 3 in  REPLACEMENT  )

2. INSPECT SKID CONTROL BUZZER ASSY
   1. Disconnect the skid control buzzer connector V8.
   2. Apply a battery positive voltage to terminals 1 and 2 of the skid control buzzer connector, and check that the buzzer sounds.
   Fig 1: Inspecting Skid Control Buzzer Assy
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   The buzzer sound can be heard.

   NG: REPLACE SKID CONTROL BUZZER ASSY

   OK: Go to next step

3. CHECK HARNESS AND CONNECTOR (SKID CONTROL BUZZER - SKID CONTROL ECU)
   1. Disconnect the skid control buzzer connector V8 and the skid control ECU connector S1.
   2. Measure the resistance according to the value(s) in SKID CONTROL BUZZER - SKID CONTROL ECU (1 OF 2)  .

      Standard:

      SKID CONTROL BUZZER - SKID CONTROL ECU (1 OF 2)



      Tester Connection	Specified Condition
      S1-30 (BZ) - V8-1 (BZ)	Below 1

   3. Measure the resistance according to the value(s) in SKID CONTROL BUZZER - SKID CONTROL ECU (2 OF 2)  .

   Standard:

   SKID CONTROL BUZZER - SKID CONTROL ECU (2 OF 2)



   Tester Connection	Specified Condition
   S1-30 (BZ) - Body ground	10 k or higher

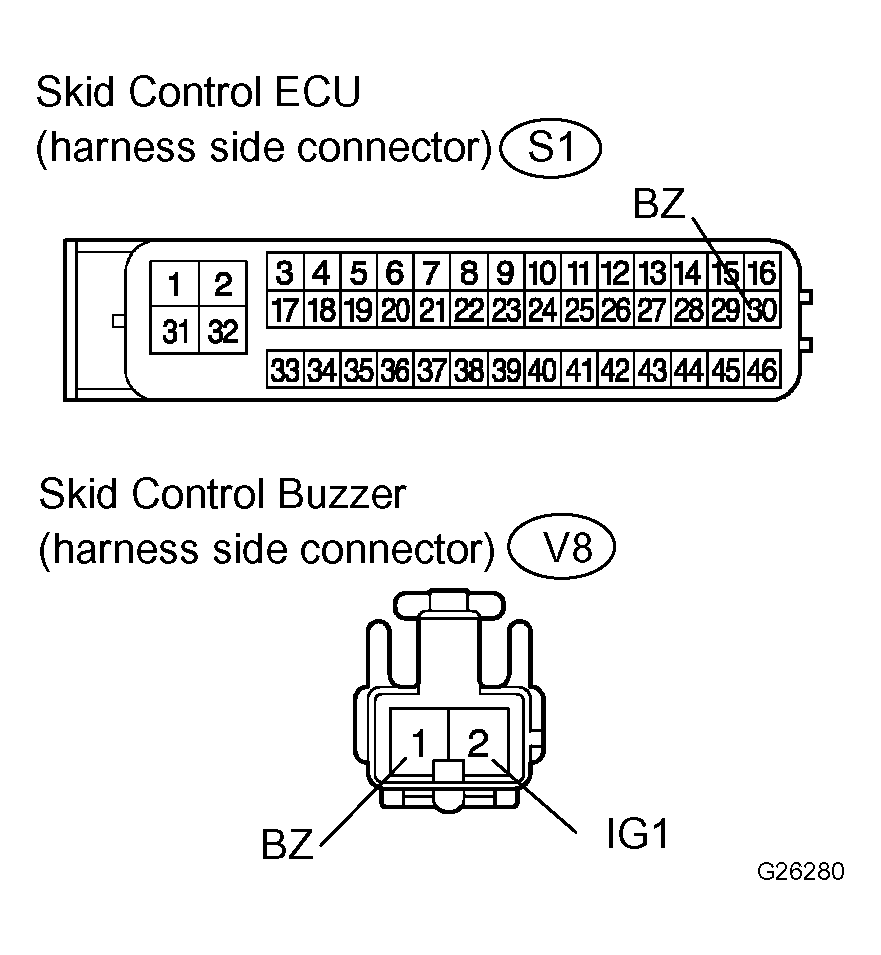

   Fig 2: Checking Harness And Connector (Skid Control Buzzer - Skid Control ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next step

4. INSPECT SKID CONTROL BUZZER ASSY
   1. Measure the voltage of the skid control buzzer IG1 circuit.
   Fig 3: Inspecting Skid Control Buzzer Assy
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard: 10 to 14 V

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE BRAKE ACTUATOR ASSY (See step 3 in REPLACEMENT  )
