Seat Position Sensor: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing (See PRECAUTION ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE FRONT SEAT ASSEMBLY (See  REMOVAL  )
  4. REMOVE RECLINING POWER SEAT SWITCH KNOB (See  REMOVAL  )
  5. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB (See  REMOVAL  )
  6. REMOVE FRONT SEAT CUSHION SHIELD INNER NO.1 LH (See  DISASSEMBLY  )
  7. REMOVE SEAT SLIDE POSITION SENSOR PROTECTOR
    1. Remove the seat slide position sensor protector from the seat position sensor.
      Fig 1: Removing Seat Slide Position Sensor Protector From Seat Position Sensor
      G04114644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SEAT POSITION SENSOR
    1. Disconnect the connector from the seat position sensor.
    2. Using a "torx" socket wrench (T30), remove the "torx" screw and the seat position sensor.

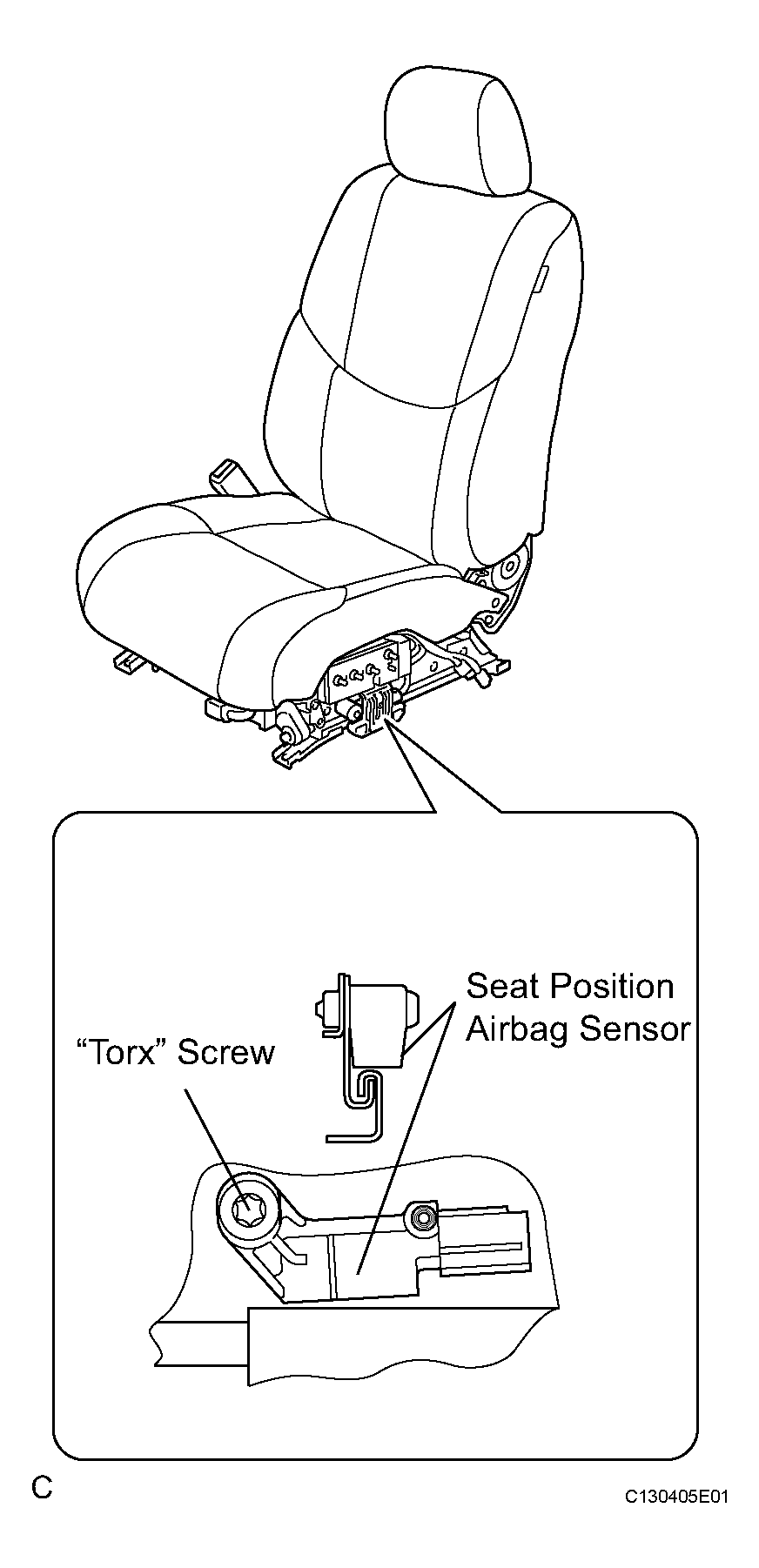

      Fig 2: Removing "Torx" Screw And Seat Position Sensor
      G04378737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
