FRONT SEAT ASSEMBLY (for Power Seat): Disassembly

1. Using a screwdriver, remove the power seat switch knob.

   HINT:

   Tape up the screwdriver tip before use.

   Fig 1: Removing Power Seat Switch Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the power seat switch knob.

   HINT:

   Tape up the screwdriver tip before use.

   Fig 2: Removing Reclining Power Seat Switch Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the 2 clips and the cover.
   Fig 3: Disconnecting 2 Clips And Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 5 screws.
   Fig 4: Disconnecting Lumbar Front Power Seat Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Driver seat only:
   1. Disconnect the lumbar front power seat switch connector.
4. Disengage the 2 claws and remove the front seat cushion shield inner No.1 LH and front seat cushion shield LH as a unit.
5. without Leg support adjustment system:

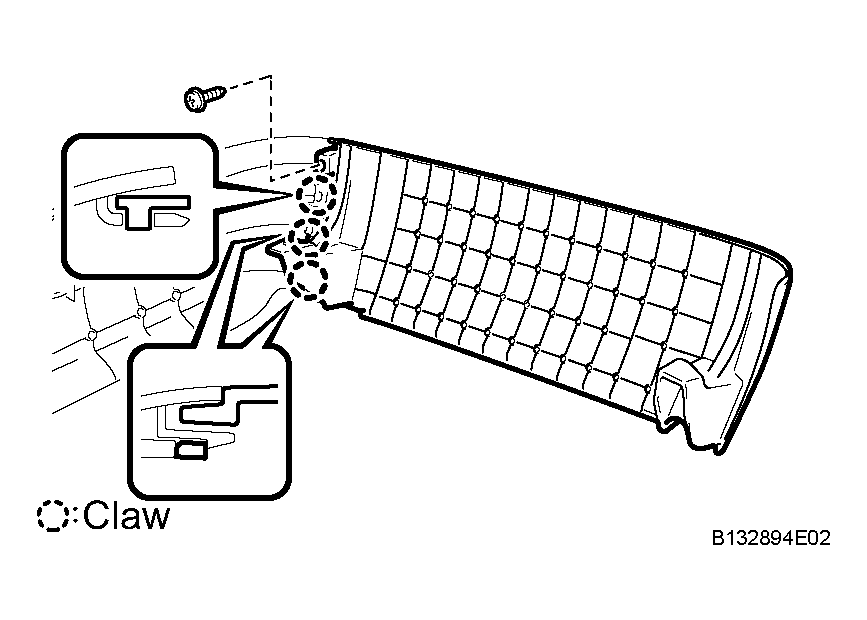

   1. Remove the screw.
   2. Disengage the 3 claws and remove the front seat cushion shield inner No.1 LH.
      Fig 5: Removing Front Seat Cushion Shield Inner No.1 LH (Without Leg Support Adjustment System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. with Leg support adjustment system:

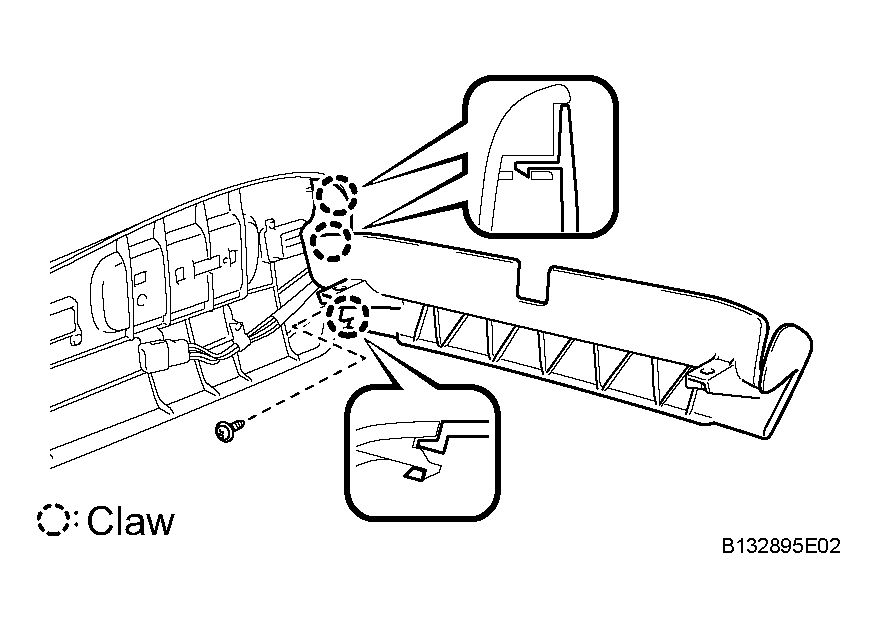

   1. Remove the screw.
   2. Disengage the 3 claws and remove the front seat cushion shield inner No.1 LH.
      Fig 6: Removing Front Seat Cushion Shield Inner No.1 LH (With Leg Support Adjustment System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and the lumbar front power seat switch.
   Fig 7: Removing Screws And Lumbar Front Power Seat Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 clamps.
2. Remove the 2 screws and power seat switch assembly and seat wire as a unit.
   Fig 8: Removing Screws And Power Seat Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector and remove the power seat switch assembly.

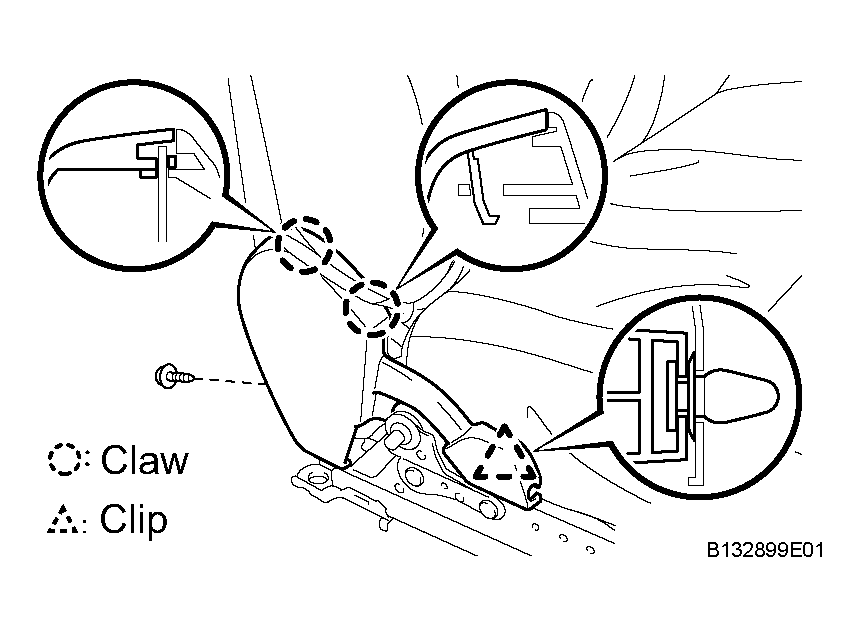

1. Remove the screw.
2. Disengage the 2 claws and clip and remove the front seat cushion shield inner LH.
   Fig 10: Removing Front Seat Cushion Shield Inner LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the 3 screws and the front power seat switch.
   Fig 11: Removing Screws And Front Power Seat Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.

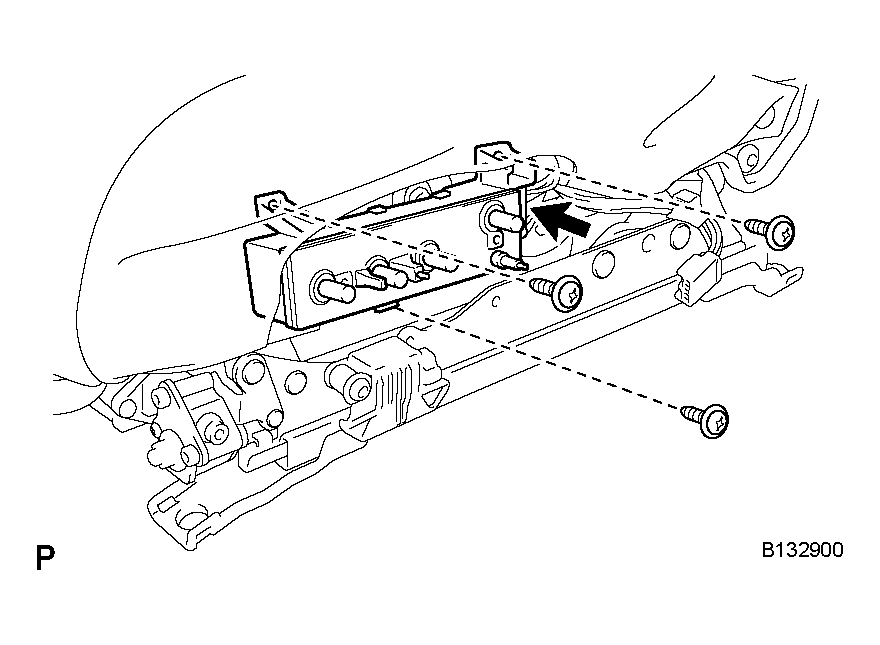

2. Remove the 3 screws and the position control ECU & switch assembly.
   Fig 12: Removing Front Power Seat Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

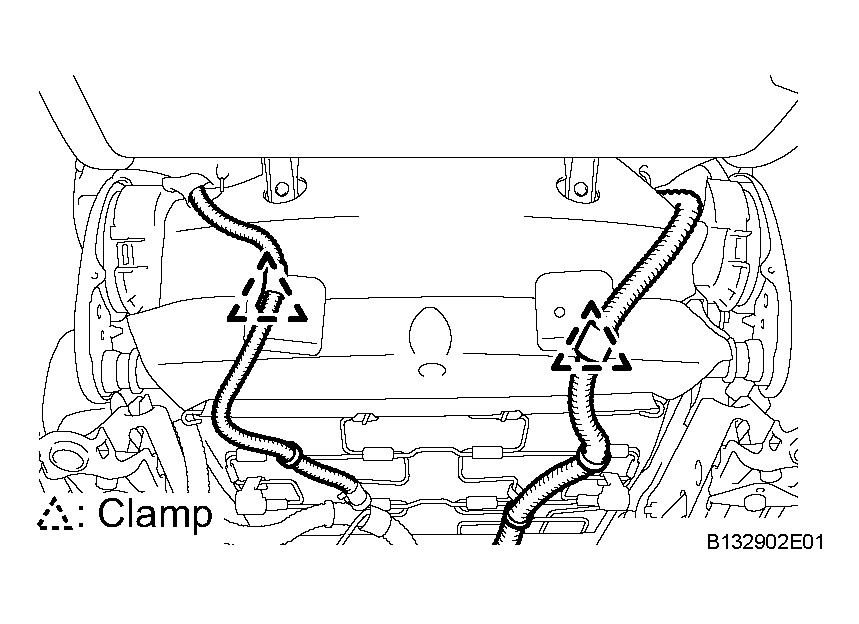

1. without Seat heater system:
   1. Disengage the 2 clamps.
      Fig 13: Removing Seat Cushion Cover With Pad

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

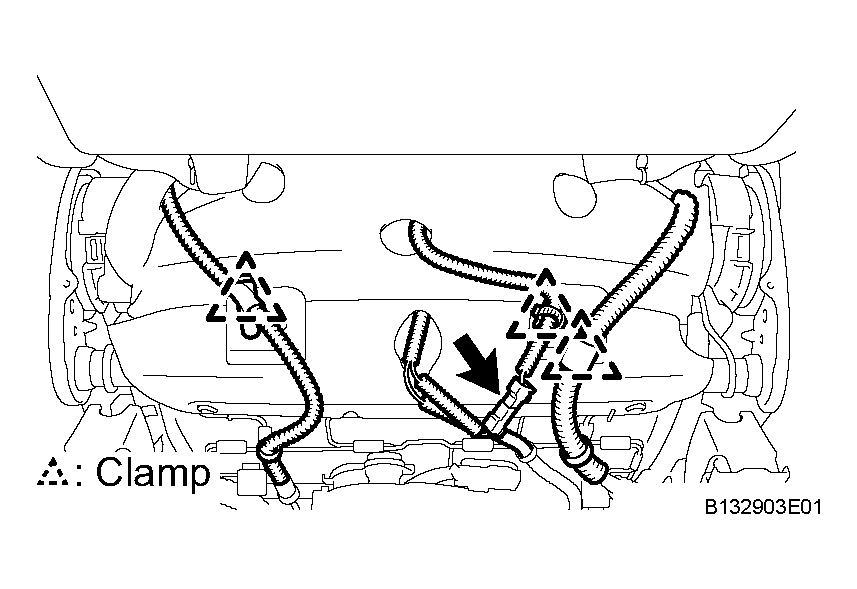

2. with Seat heater system:
   1. Disconnect the connector.
   2. Disengage the 3 clamps.
      Fig 14: Disengaging Clamps (With Seat Heater System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

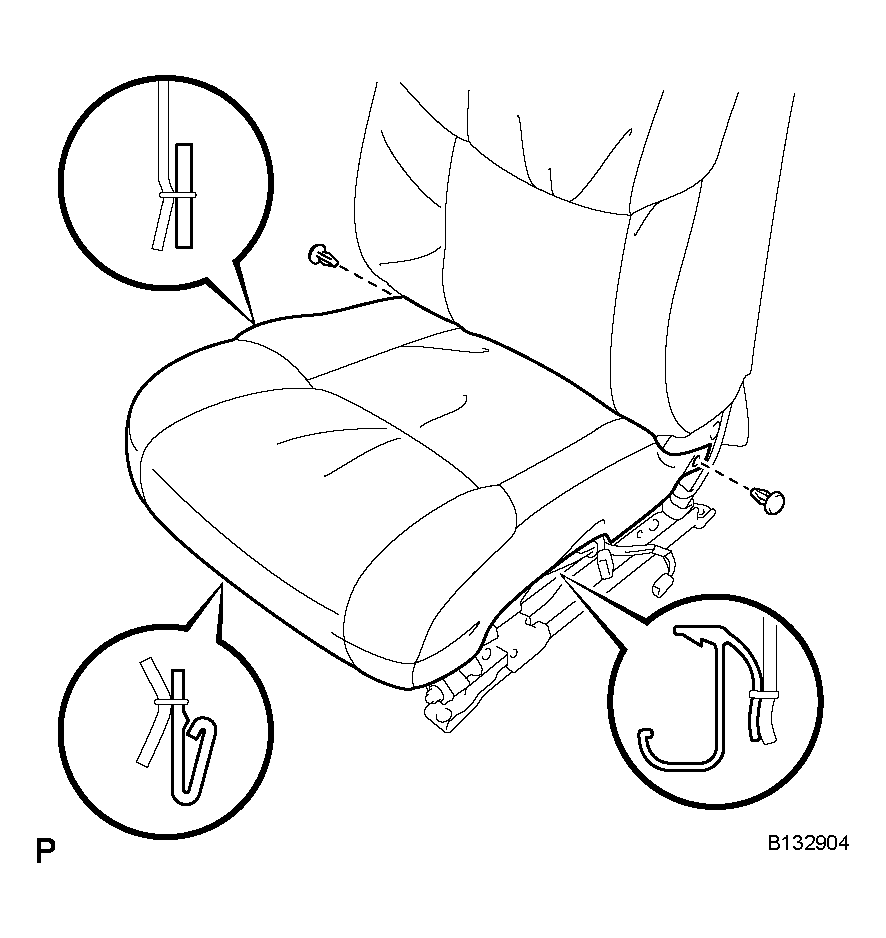

3. Disengage the hooks and remove the 2 clips and the seat cushion cover with pad.
   Fig 15: Removing Clips And Seat Cushion Cover With Pad

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 11 hog rings and the separate type front seat cushion cover.
   Fig 16: Removing Hog Rings And Separate Type Front Seat Cushion Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

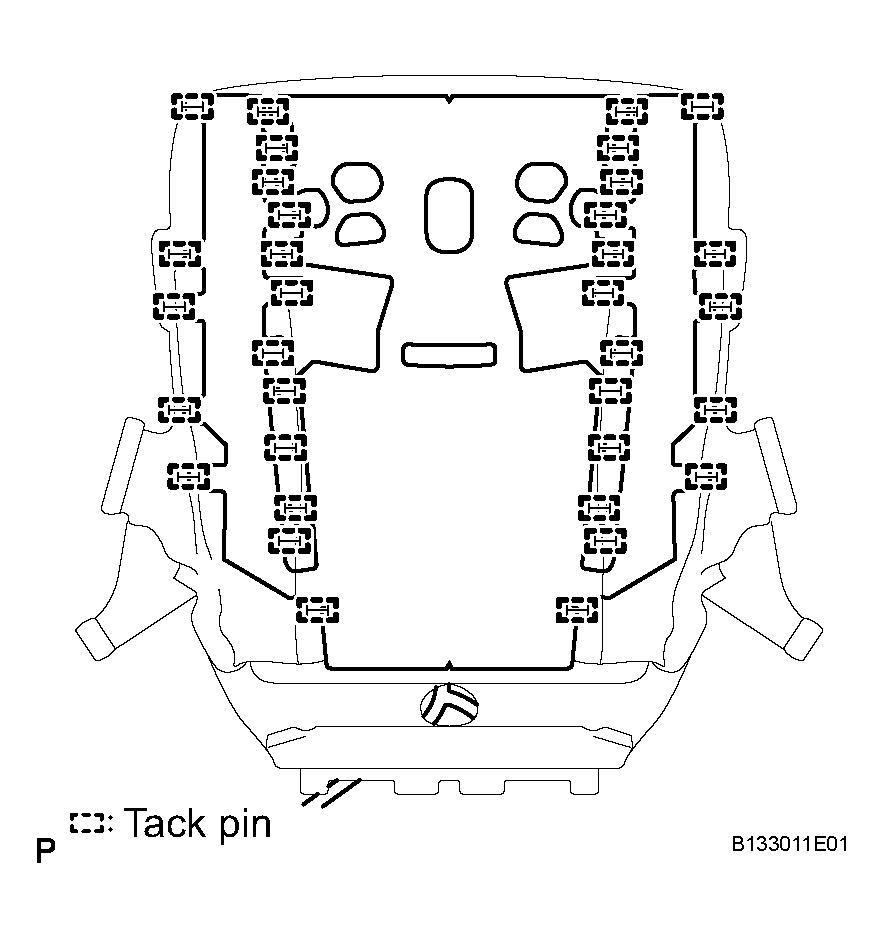

1. Detach the 34 tack pins and remove the front seat cushion heater assembly LH.

1. Remove the 2 screws.
2. Disengage the 2 claws and remove the front seatback board sub-assembly LH.
   Fig 18: Removing Front Seatback Board Sub-Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the hooks and remove the separate type front seatback cover.
   Fig 19: Removing Separate Type Front Seatback Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 claws and remove the front seat headrest support (LH side).

HINT:

Use the same procedures for the RH side and LH side.

Fig 20: Removing Front Seat Headrest Support

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

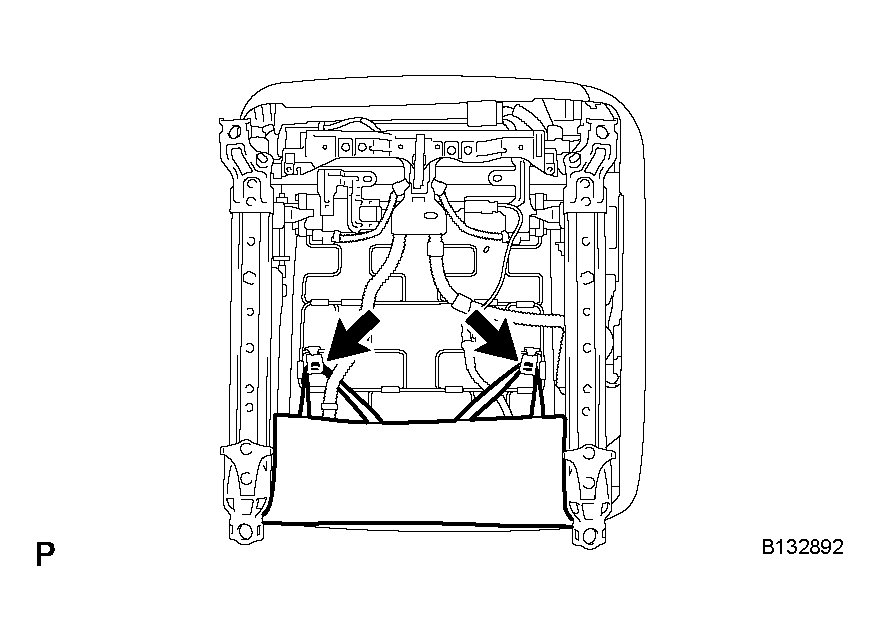

1. Disengage the 2 hog rings and the hooks.
   Fig 21: Disengaging Hog Rings And Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and disconnect the separate type front seatback cover bracket.
3. Remove the seatback cover with pad.
   Fig 22: Disconnecting Separate Type Front Seatback Cover Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

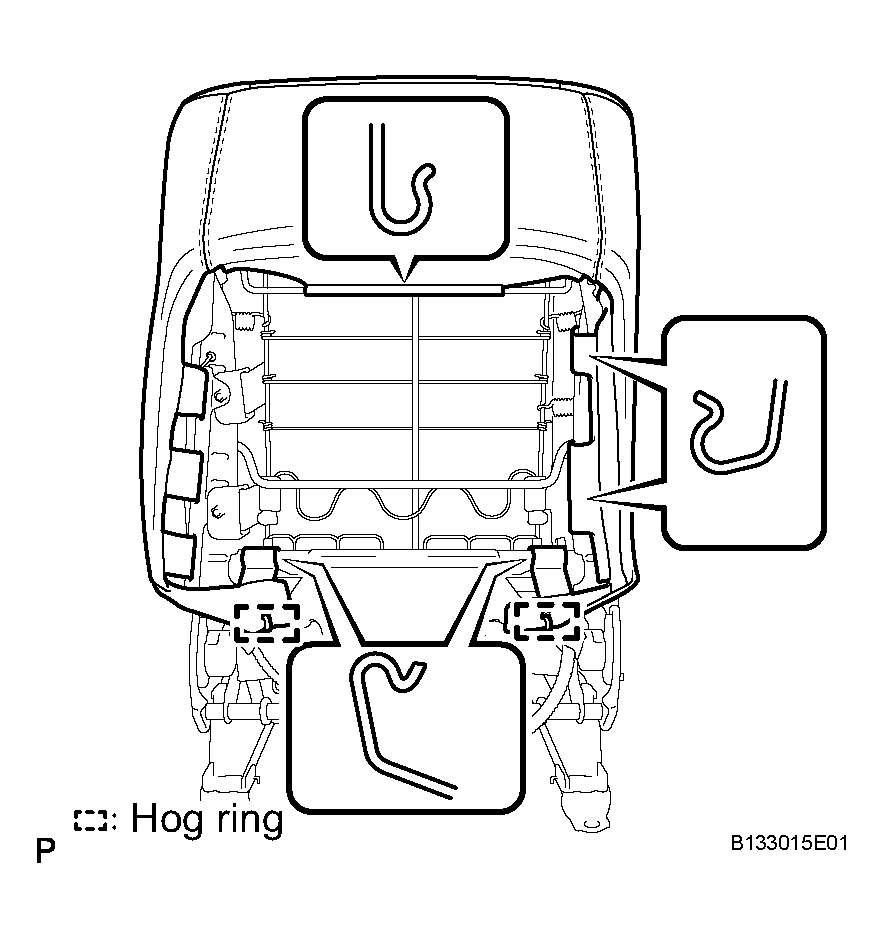

1. Remove the 11 hog rings and the separate type front seatback cover.
   Fig 23: Removing 11 Hog Rings And Separate Type Front Seatback Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

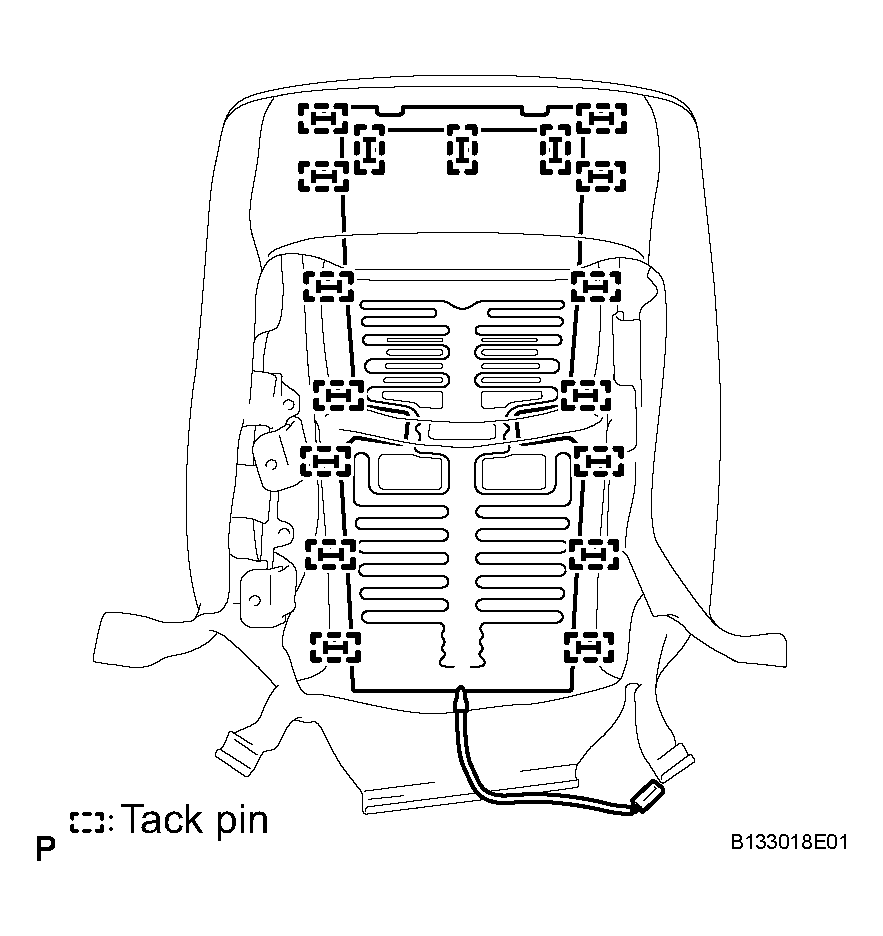

1. Detach the 17 tack pins and remove the front seatback heater assembly LH.
   Fig 24: Removing Front Seatback Heater Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

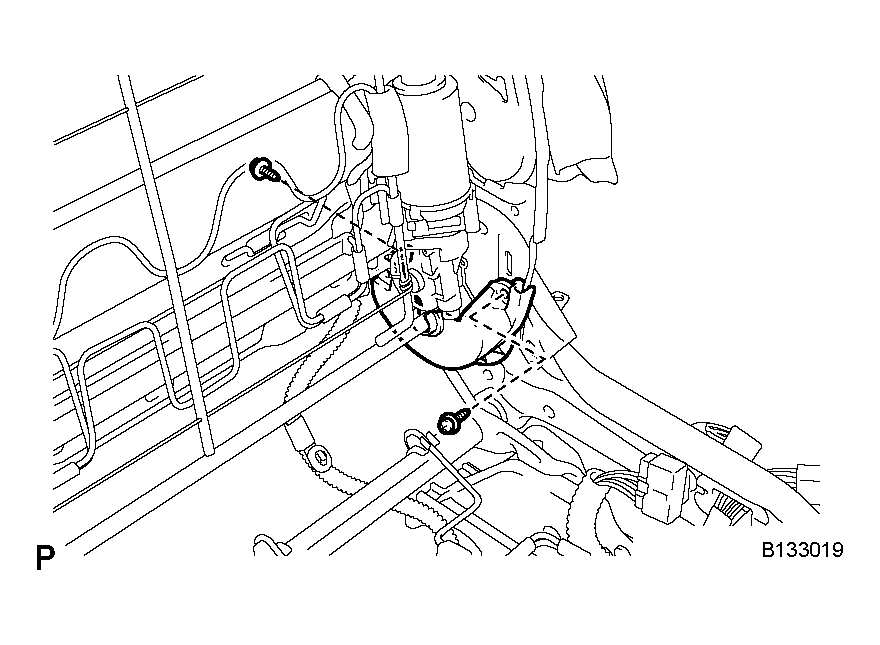

1. Remove the 2 screws and the front seatback shield RH.
   Fig 25: Removing Front Seatback Shield Rh

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

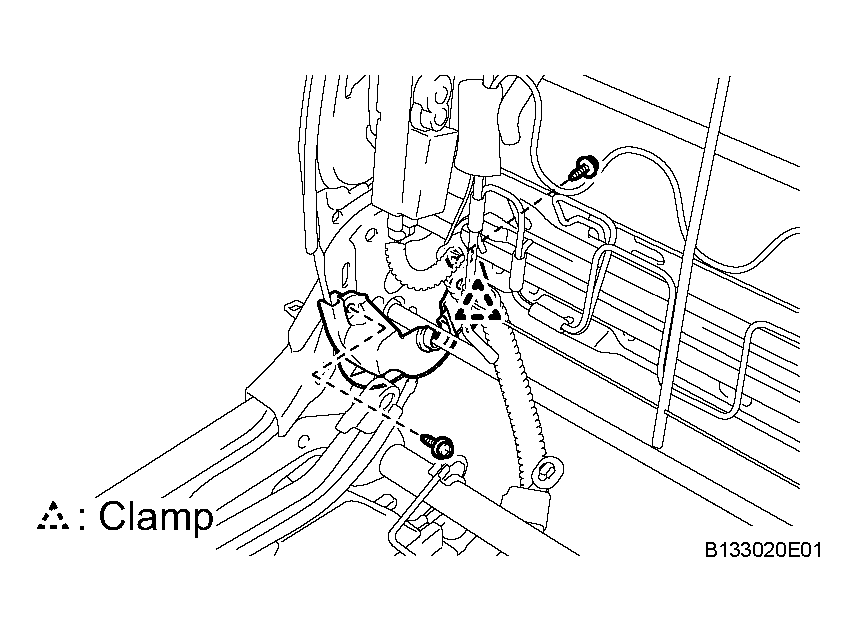

1. Disengage the clamp.
2. Remove the 2 screws and the front seatback shield LH.
   Fig 26: Removing Front Seatback Shield LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw and the reclining adjuster inside cover RH.

HINT:

Use the same procedures for the RH side and LH side.

Fig 27: Removing Reclining Adjuster Inside Cover LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw and the front seat cushion shield lower LH.
   Fig 28: Removing Screw And Front Seat Cushion Shield Lower LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 claws and remove the vertical adjuster bracket cover LH.

HINT:

Use the same procedures for the RH side and LH side.

HINT:

Use the same procedures for the RH side and LH side.

Fig 29: Removing Vertical Bracket Cover Outer (For Front Passenger Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

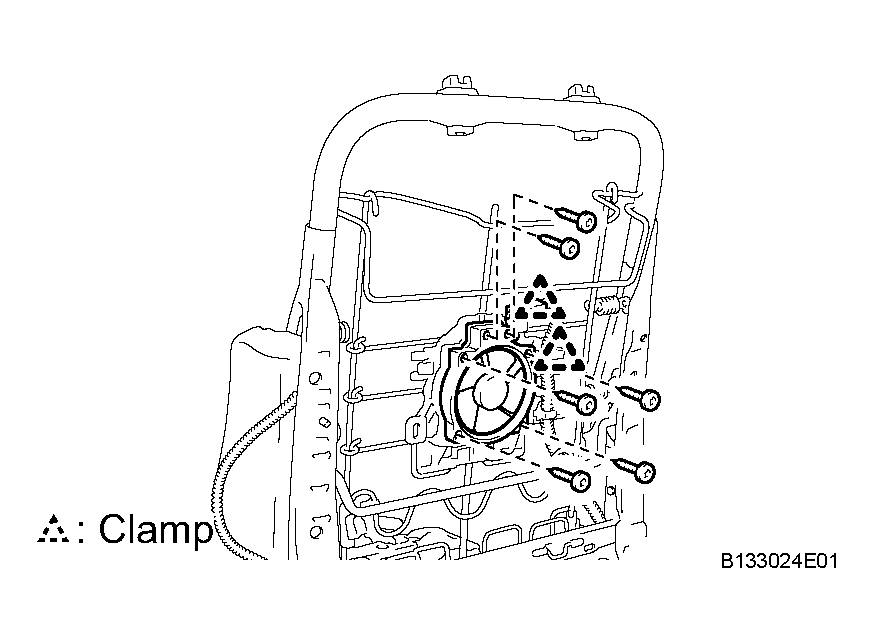

1. Disconnect the connector.
2. Disengage the 2 clamps.
3. Using a Torx socket wrench (T20), remove the 6 screws, seat climate control blower RH and seatback climate control cover.

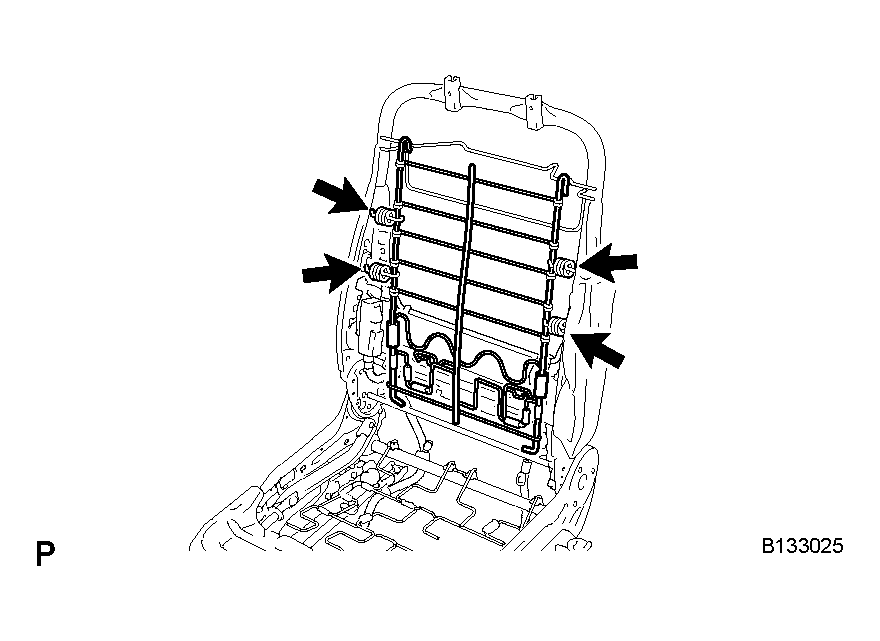

1. Remove the 4 springs and the seatback spring.
   Fig 31: Removing Springs And Seatback Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

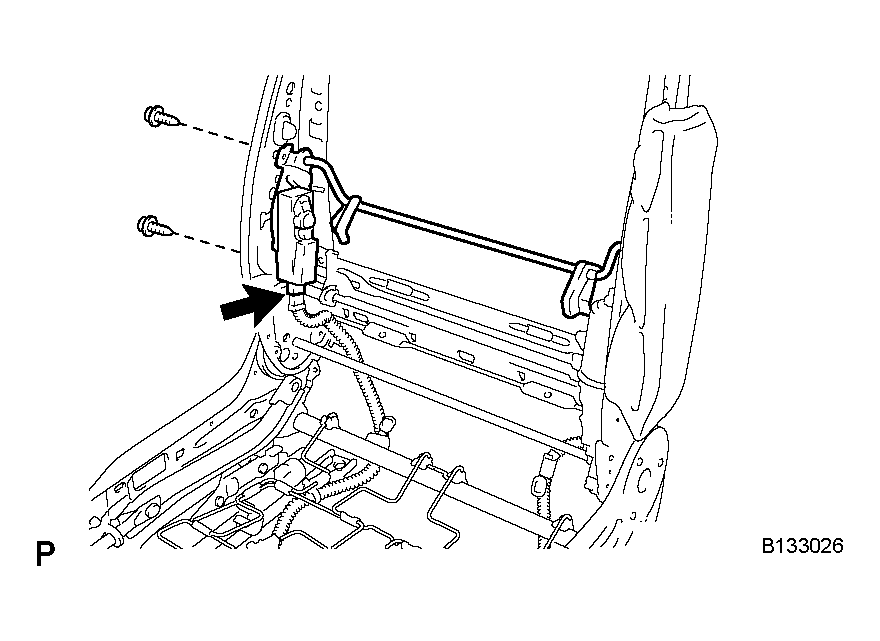

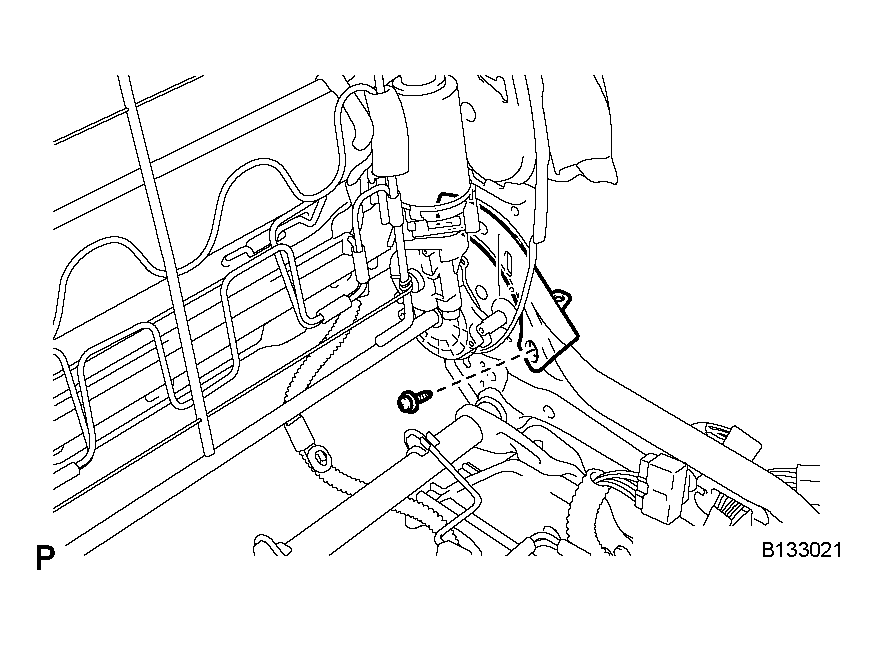

2. Disconnect the connector.
3. Remove the 2 screws and the lumbar support adjuster assembly LH.
   Fig 32: Removing Screws And Lumbar Support Adjuster Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

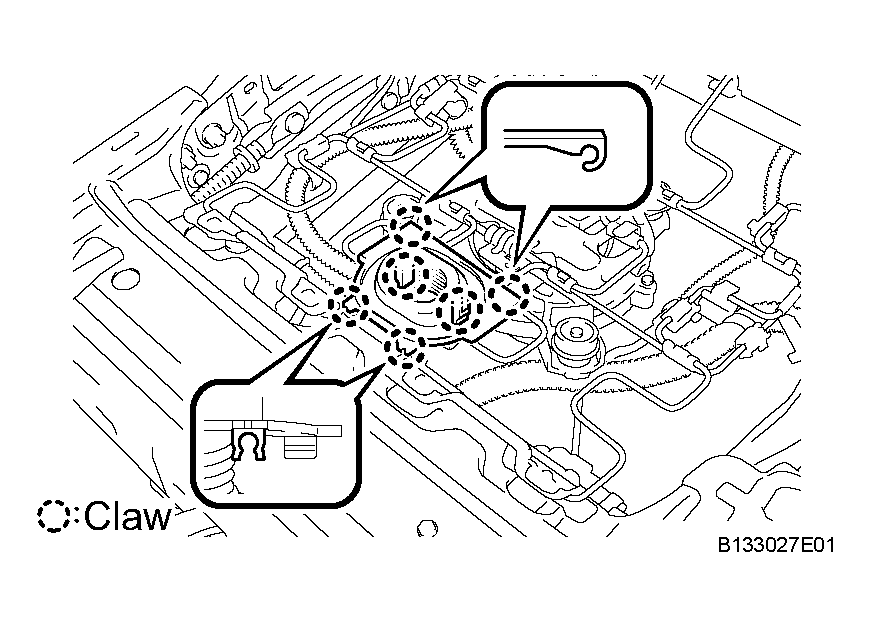

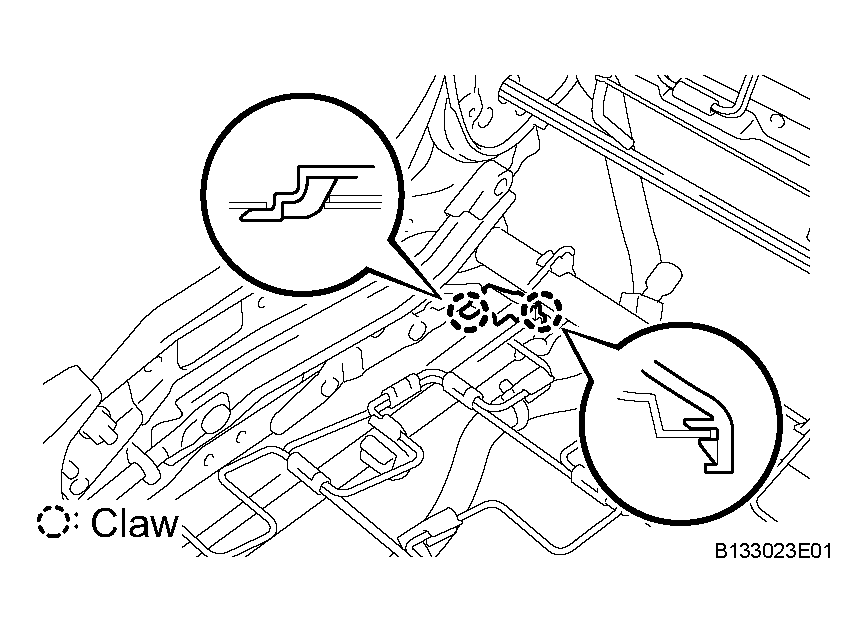

1. Disengage the 6 claws and remove the seat cushion climate control duct.
   Fig 33: Removing Seat Cushion Climate Control Duct

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

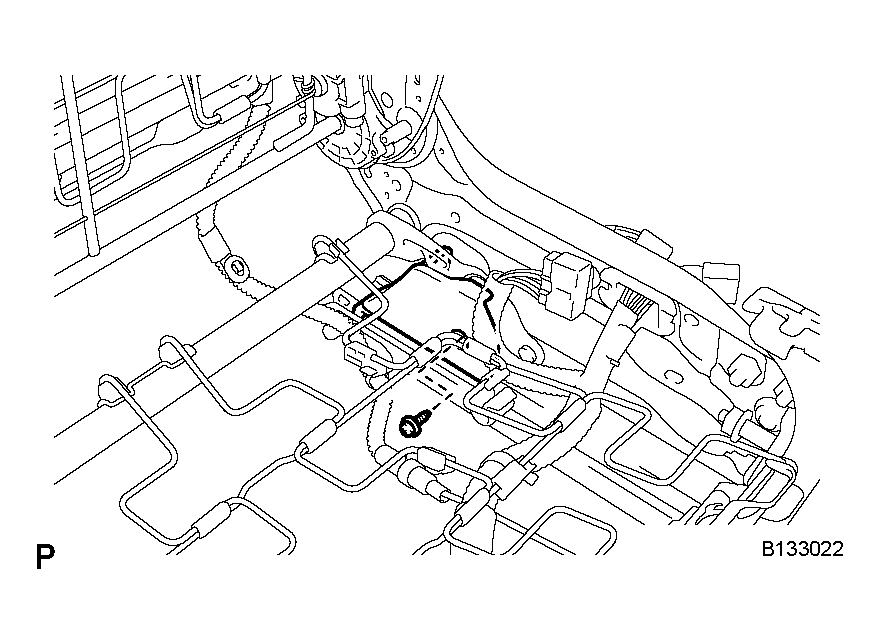

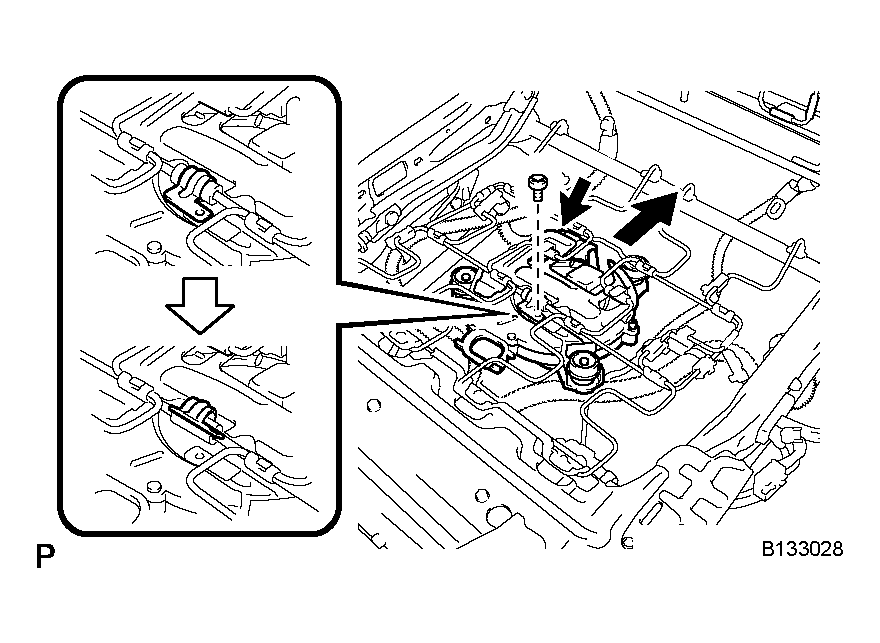

1. Disconnect the connector.
2. Using a Torx socket wrench (T20), remove the screw and the seat climate control blower RH.
   Fig 34: Removing Screw And Seat Climate Control Blower RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

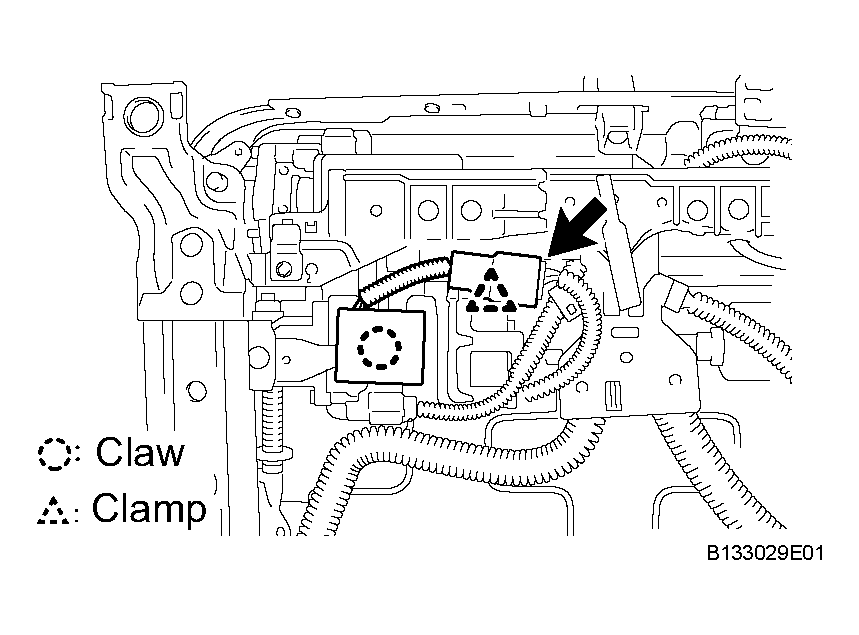

1. Disconnect the connector.
2. Disengage the claw and clamp and remove the seat heater control sub-assembly LH.
