Rear Axle Hub & Bearing ASSY LH: Replacement

HINT:

Refer to components: See REAR AXLE HUB & BEARING ASSY LH

Use the same procedures for the RH side and LH side.

The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY
3. SEPARATE SKID CONTROL SENSOR WIRE
   1. Disconnect the skid control sensor connector.
   NOTE: Be careful that any foreign matter do not attach inside the skid control sensor connector and on the installation portion.
4. REMOVE REAR AXLE HUB & BEARING ASSY LH
   1. Remove the 4 bolts and then remove the rear axle hub & bearing assy LH.
5. INSTALL REAR AXLE HUB & BEARING ASSY LH
   1. Install the rear axle hub & bearing assy LH on the axle beam assy with 4 bolts.

      Torque: 61 N.m (622 kgf.cm, 45 ft.lbf)

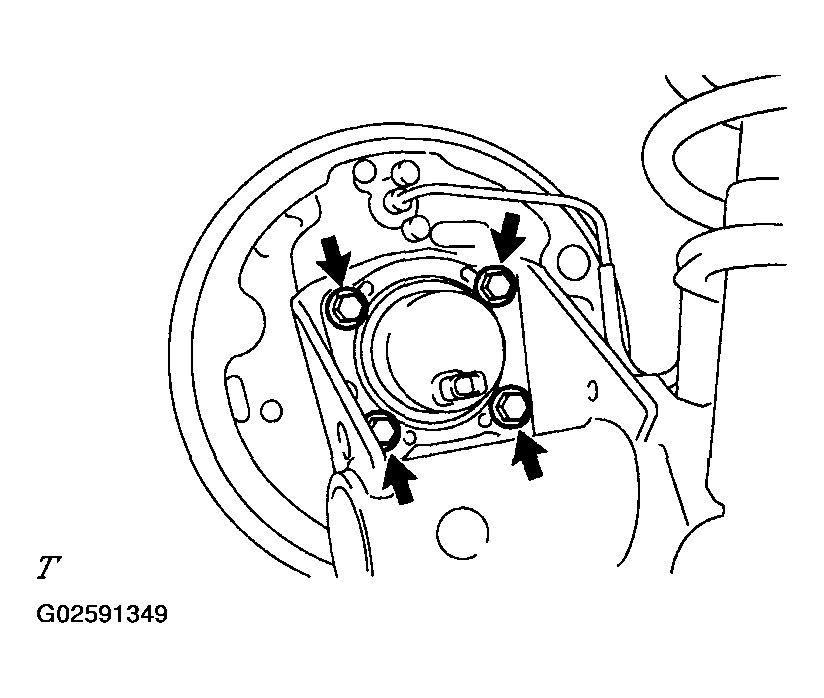

      Fig 1: Installing Rear Axle Hub

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. CONNECT SKID CONTROL SENSOR WIRE
   1. Connect the skid control sensor connector.
7. INSPECT AXLE HUB BEARING LOOSENESS (SEE  ON-VEHICLE INSPECTION   )
8. INSPECT AXLE HUB BEARING RUNOUT (SEE  ON-VEHICLE INSPECTION   )
9. INSTALL REAR BRAKE DRUM SUB-ASSY
10. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

11. INSPECT REAR WHEEL ALIGNMENT (SEE  REAR WHEEL ALIGNMENT  )
12. CHECK ABS SPEED SENSOR SIGNAL (SEE  TEST MODE PROCEDURE  )
