On-Vehicle Inspection

1. Remove the front tire.
2. Remove the front disc brake caliper.
3. Remove the front disc.

   HINT:

   Put matchmarks on the front disc and front axle hub.

4. Inspect the front axle hub & bearing looseness.
   1. Using a dial indicator, check for looseness from the center of the axle hub.

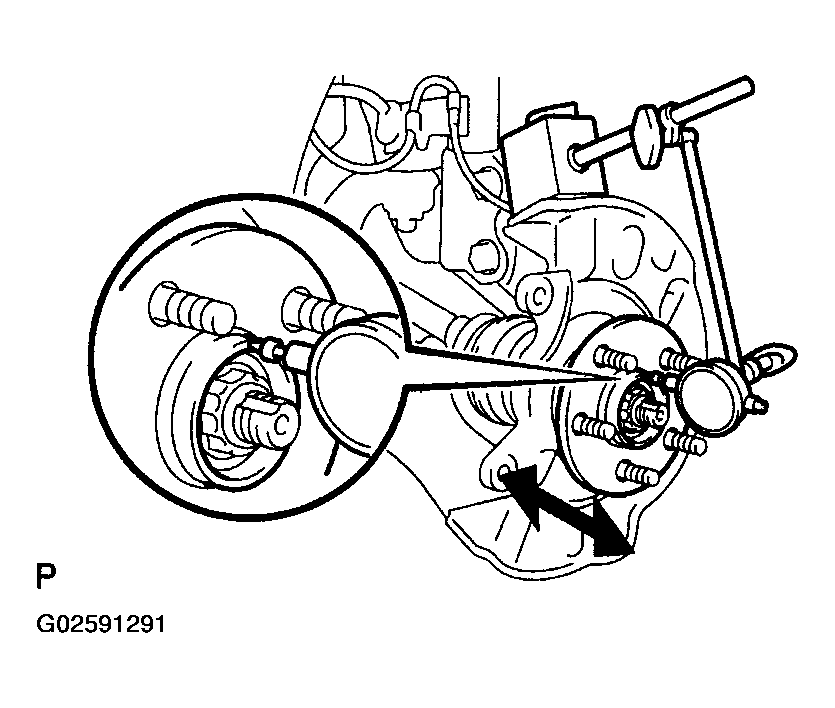

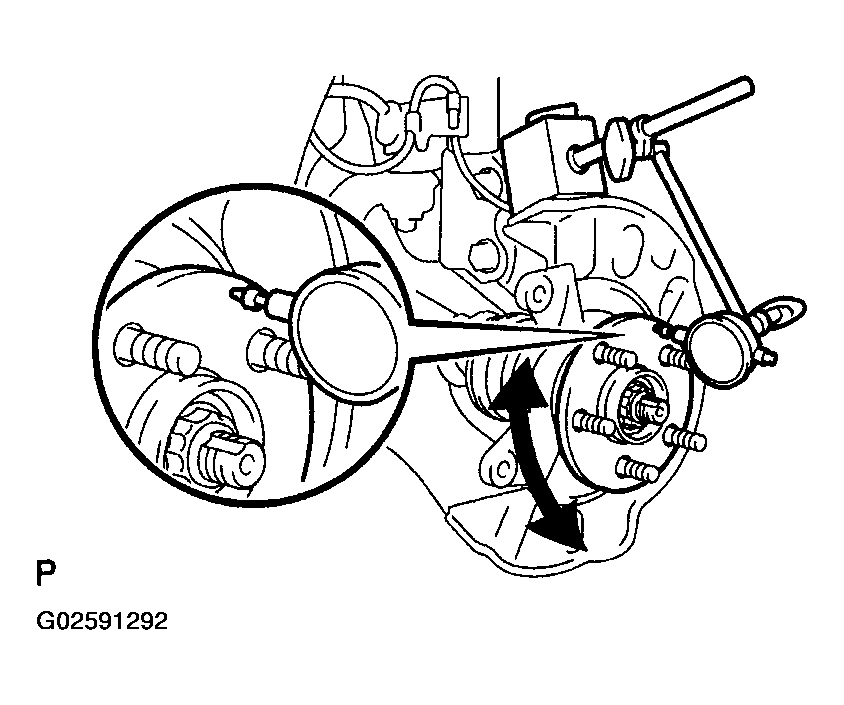

      Fig 1: Inspecting Front Axle Hub And Bearing Looseness

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum: 0.05 mm (0.0020 in.)

1. Using a dial indicator, check for runout of the axle hub.

   Maximum: 0.05 mm (0.0020 in.)

   NOTE: If runout exceeds the maximum, replace the axle hub assy.
2. Install the front disc.

   HINT:

   Align the matchmarks of the front disc and front axle hub before installing them.

3. Install the front disc brake caliper.

   Torque: 109 N.m (1,114 kgf.cm, 81 ft.lbf)

4. Install the front tire.

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

   Fig 2: Installing Front Tire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear tire.
2. Remove the rear brake drum.

   HINT:

   Put matchmarks on the rear brake drum and hub bolt.

3. Inspect the rear axle hub & bearing looseness.
   1. Using a dial indicator, check for looseness from the center of the axle hub.

Maximum: 0.05 mm (0.0020 in.)

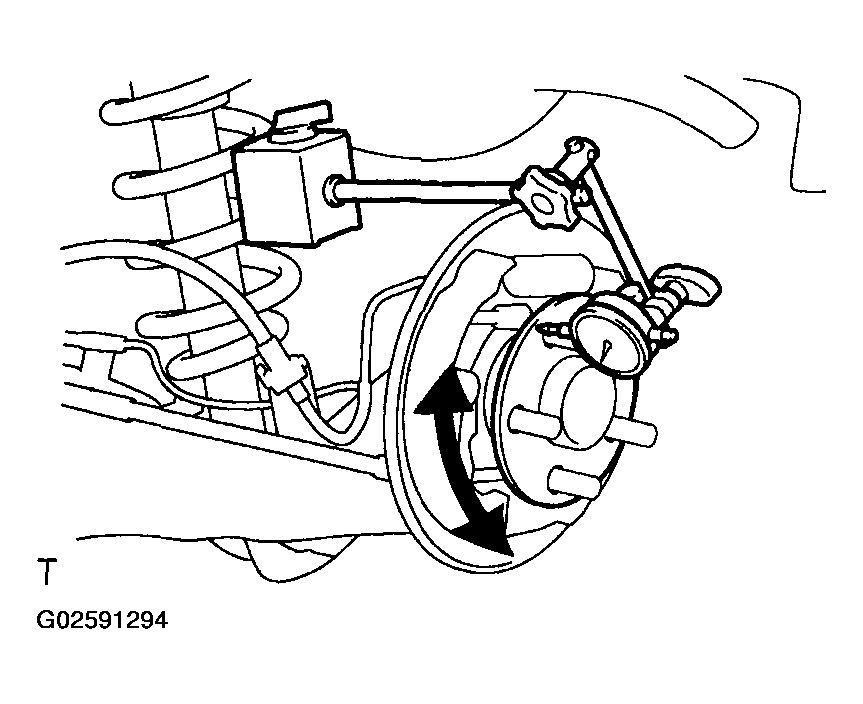

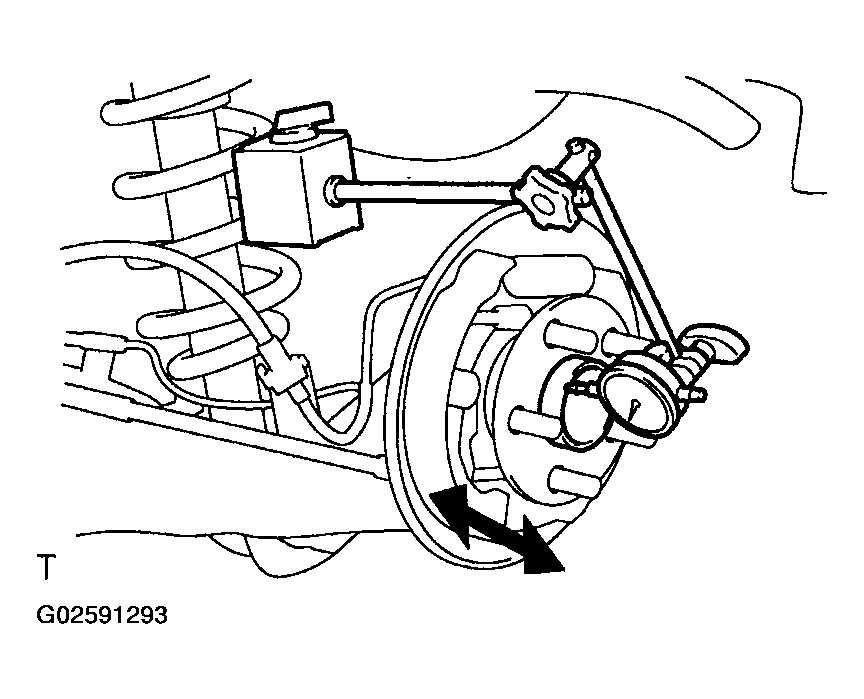

Fig 3: Replacing Axle Hub Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a dial indicator, check for runout of the axle hub.

   Maximum: 0.07 mm (0.0028 in.)

   NOTE: If runout exceeds the maximum, replace the axle hub.
2. Install the rear brake drum.

   HINT:

   Align the matchmarks of the rear brake drum and hub bolt before installing them.

3. Install the rear tire.

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

   Fig 4: Installing Rear Tire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
