Brake Control Power Supply ASSY: Replacement

  1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  2. REMOVE DECK TRIM SIDE PANEL ASSY RH (See  REPLACEMENT  )

    HINT:

    Refer to the procedures from the removal of the rear door scuff plate RH up until the removal of the deck trim side panel assy RH.

  3. REMOVE BRAKE CONTROL POWER SUPPLY ASSY
    1. Disconnect the connector and remove the 3 bolts and the brake control power supply assy.
    Fig 1: Removing Brake Control Power Supply Assy
    G02592396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BRAKE CONTROL POWER SUPPLY ASSY
    1. Install the brake control power supply assy with the 3 bolts.

      Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

    2. Connect the connector to the brake control power supply assy.

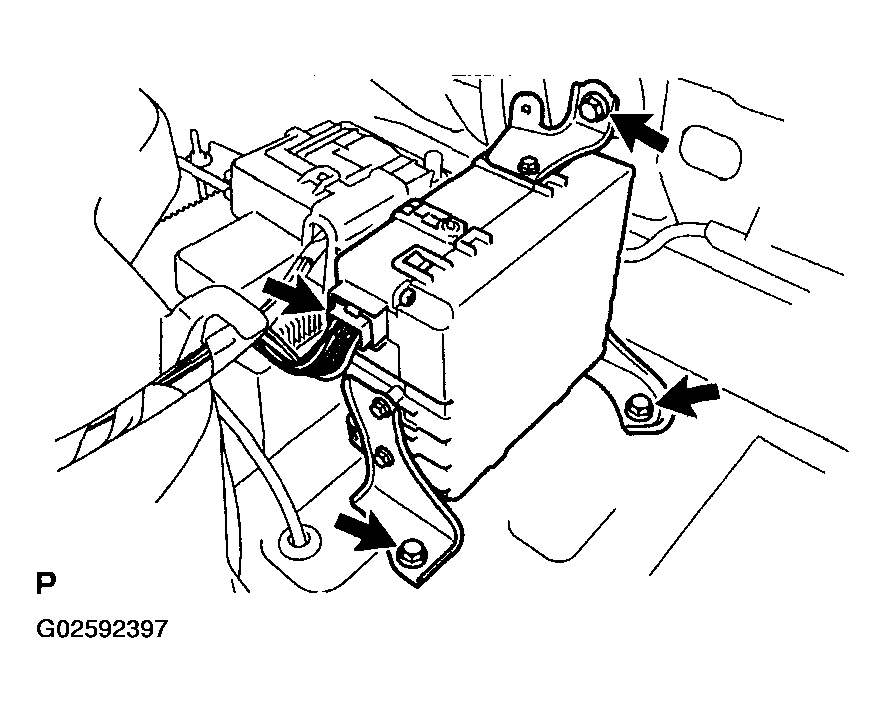

    Fig 2: Installing Brake Control Power Supply Assy
    G02592397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL DECK TRIM SIDE PANEL ASSY RH
  6. INSTALL REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  7. CHECK AND CLEAR DTC (See  DIAGNOSTIC TROUBLE CODES CHECK/CLEAR  )
