Rear Seat ASSY: Overhaul

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt chart (SEE SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE REAR SEAT CUSHION ASSY

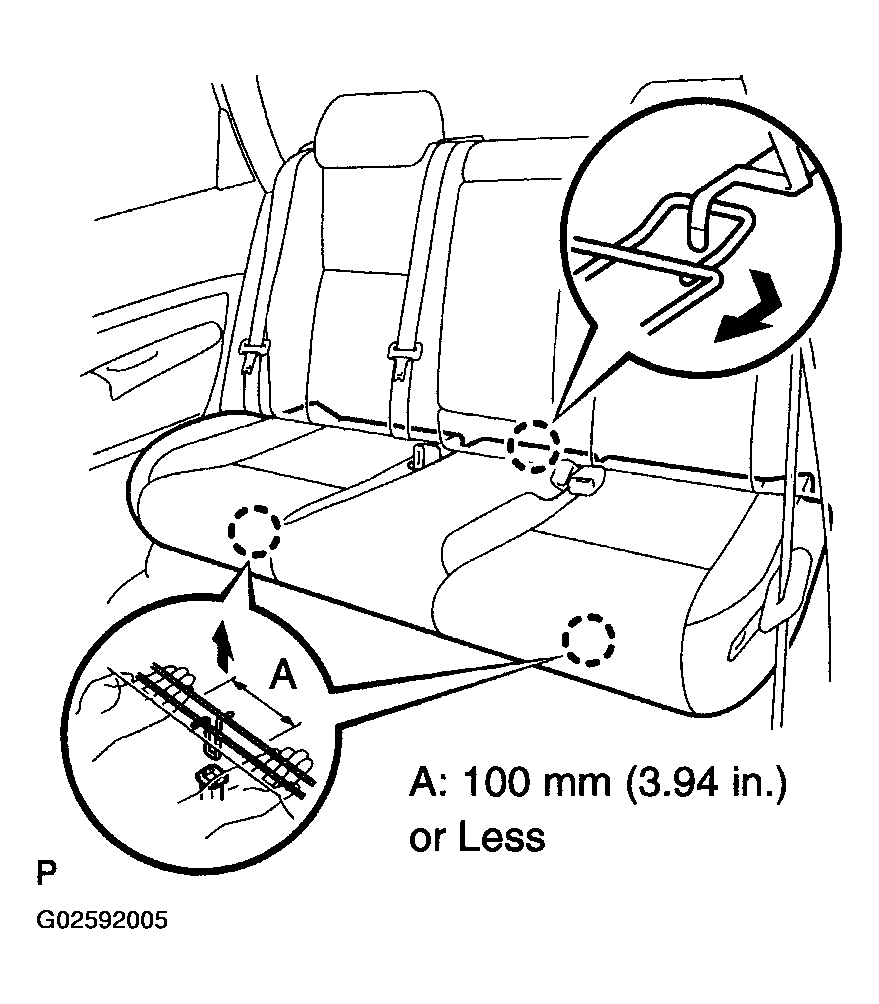

   1. Pull up the 2 front portions of the seat cushion.
      NOTE: The cushion frame deforms easily. To avoid deforming the seat cushion, place your hands near the hook as shown in the illustration, and then pull the seat cushion upward. Repeat for the other hook.
   2. Push down on the seat cushion and pull it towards the front of the vehicle to release the hook. Then remove the seat cushion.
   Fig 1: Removing Rear Seat Cushion Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE REAR SEATBACK ASSY RH
   1. Remove the bolt and rear seat belt floor anchor.
   2. Open the front part of the rear floor deck board No. 1
   3. Fully fold the seatback forward.
   4. Remove the 2 bolts and seatback.
   Fig 2: Removing Bolts And Seatback (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR SEATBACK ASSY LH
   1. Open the front part of the rear floor deck board No. 1.
   2. Fully fold the seatback forward.
   3. Remove the 2 bolts and seatback.
   Fig 3: Removing Bolts And Seatback (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE REAR DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
5. REMOVE REAR DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
6. REMOVE REAR SIDE SEATBACK ASSY RH
   1. Remove the bolt and side seatback.
7. REMOVE REAR SIDE SEATBACK ASSY LH
   1. Remove the bolt and side seatback.
8. REMOVE REAR SEATBACK HINGE SUB-ASSY RH
   1. Remove the bolt and hinge.
9. REMOVE REAR SEATBACK HINGE SUB-ASSY LH
   1. Remove the bolt and hinge.
10. REMOVE REAR SEATBACK HINGE SUB-ASSY CENTER
    1. Remove the 2 bolts and hinge.

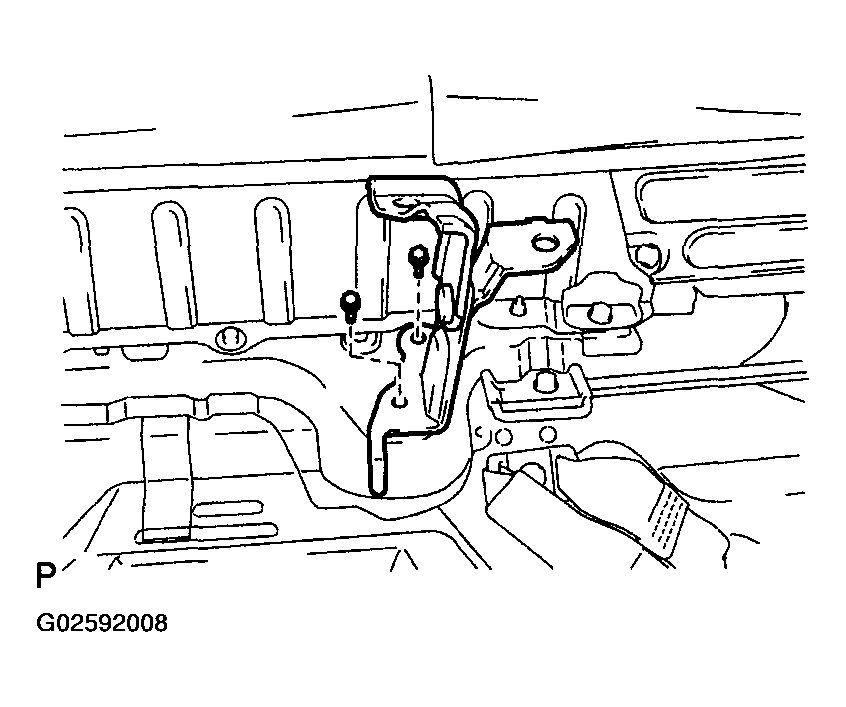

    Fig 4: Removing Bolts And Hinge

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE REAR SEAT CUSHION COVER

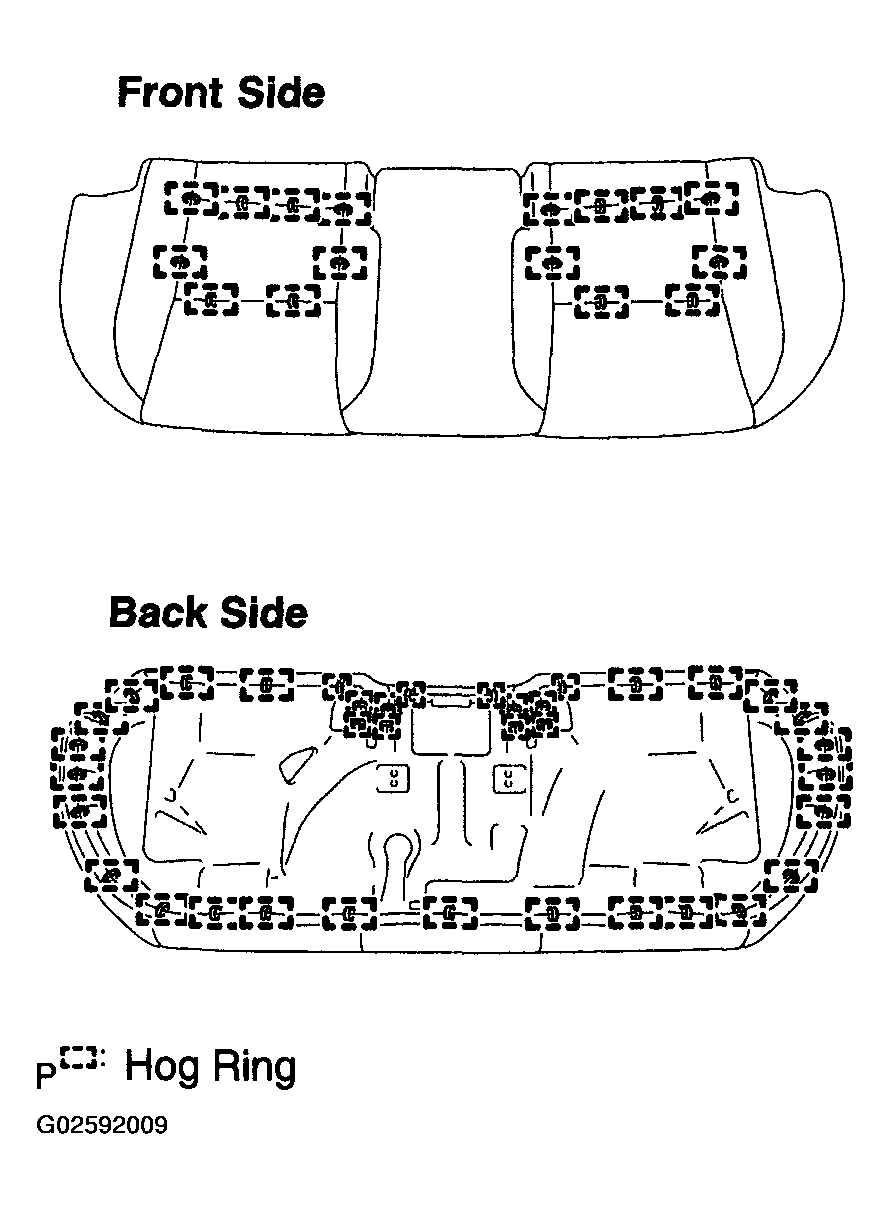

    1. Remove the 51 hog rings and cushion cover from the cushion pad.
    Fig 5: Removing Rear Seat Cushion Cover

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE REAR SEAT HEADREST ASSY
    1. Remove the 2 headrests.
13. REMOVE REAR SEAT HEADREST ASSY CENTER
14. REMOVE REAR SEAT ARMREST ASSY CENTER
    1. Using a screwdriver, pry out the armrest hinge cover.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the bolt and armrest.
    Fig 6: Removing Rear Seat Armrest Assy Center

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE REAR SEATBACK COVER RH
    1. Using a screwdriver, disengage the 2 claws labeled A.

       HINT:

       Tape the screwdriver tip before use.

    2. Pull the shoulder belt cover in the direction indicated by the arrow in the illustration to disengage the 2 claws labeled B. Then, remove the shoulder belt cover.
    3. Remove the rear seatback lock release button.
    4. Remove the 2 screws and shoulder belt guide.
    5. Using a screwdriver, disengage the claws and remove the seatback stop button grommet.
       Fig 7: Removing Claws And Rear Seatback Lock Release Button

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       When performing this step, position yourself between the seatback frame and the seatback cover with pad.

       Fig 8: Disengaging Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a screwdriver, disengage the 4 claws and remove the 2 rear seatback covers.

       HINT:

       Tape the screwdriver tip before use.

       Fig 9: Disengaging Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using a clip remover, remove the 9 clips.
       NOTE: If clips are damaged during removal, replace them.
       Fig 10: Removing Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Lift up the seatback cover and remove the 14 hog rings.
    9. Remove the 4 headrest supports.
    10. Remove the seatback cover (with pad) from the seatback frame.

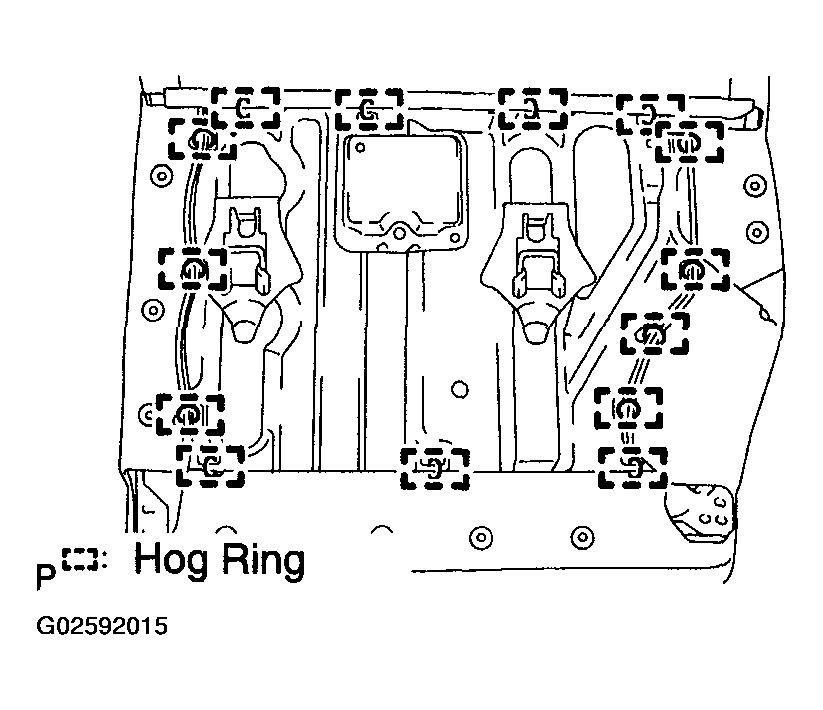

        Fig 11: Removing Hog Rings

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Remove the 14 hog rings and seatback cover from the seatback pad.
    Fig 12: Removing Hog Rings And Seatback Cover From Seatback Pad

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE REAR SEATBACK COVER LH
    1. Remove the rear seatback lock release button.
    2. Remove the 2 screws and shoulder belt guide.
    3. Using a screwdriver, disengage the claws and remove the seatback stop button grommet.

       HINT:

       When performing this step, position yourself between the seatback frame and the seatback cover (with pad).

       Fig 13: Disengaging Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 4 claws and remove the rear seatback cover.

       HINT:

       Tape the screwdriver tip before use.

       Fig 14: Disengaging 4 Claws And Removing Rear Seatback Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a clip remover, remove the 7 clips.
       NOTE: If clips are damaged during removal, replace them  .
       Fig 15: Removing Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Lift up the seatback cover and remove the 12 hog rings.
    7. Remove the 2 headrest supports.
    8. Remove the seatback cover (with pad) from the seatback frame.
       Fig 16: Removing Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 6 hog rings and seatback cover from the seatback pad.
    Fig 17: Removing Hog Rings And Seatback Cover

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

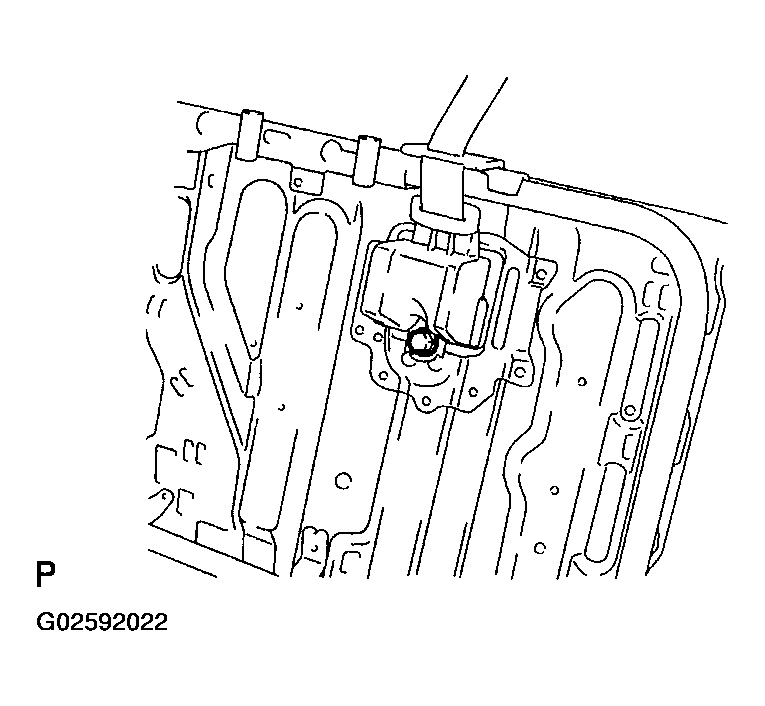

17. REMOVE REAR SEAT BELT ASSY OUTER CENTER
    1. Remove the bolt and belt.
18. REMOVE REAR SEATBACK LOCK ASSY RH
    1. Remove the 2 bolts and lock.

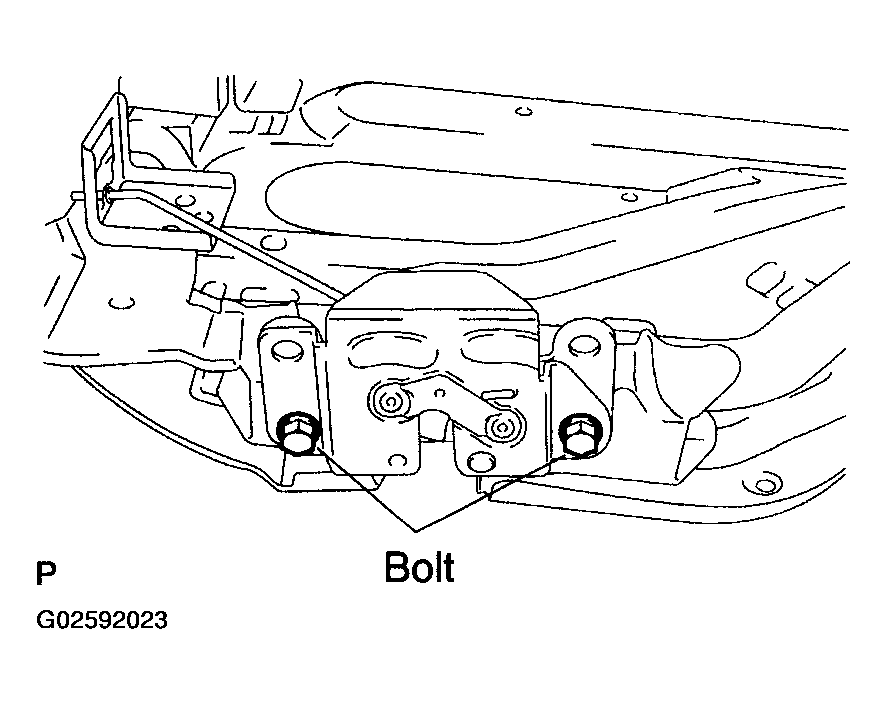

       Fig 18: Removing Bolts & Rear Seatback Lock Assy RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE REAR SEATBACK LOCK ASSY LH
    1. Remove the 2 bolts and lock.
       Fig 19: Removing Bolts & Rear Seatback Lock Assy LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL REAR SEATBACK LOCK ASSY RH
    1. Install the lock with the 2 bolts.

       Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

21. INSTALL REAR SEATBACK LOCK ASSY LH
    1. Install the lock with the 2 bolts.

       Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

22. INSTALL REAR SEAT BELT ASSY OUTER CENTER
    1. Install the seat belt with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

23. INSTALL REAR SEATBACK COVER RH
    NOTE:

    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
    1. Using hog ring pliers, install the seatback cover to the seatback pad with 14 new hog rings.
    2. Install the seatback cover (with pad) to the seatback frame.
    3. Install the 4 headrest supports.
    4. Using hog ring pliers, install 14 new hog rings.
    5. Install the 9 clips.
    6. Install the 2 rear seatback covers.
    7. Install the seatback stop button grommet.
    8. Install the shoulder belt guide with the 2 screws.
    9. Install the shoulder belt cover.
    10. Install the rear seatback lock release button.
    Fig 20: Identifying Hog Ring Pliers

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. INSTALL REAR SEATBACK COVER LH
    NOTE:

    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
    1. Using hog ring pliers, install the seatback cover to the seatback pad with 6 new hog rings.
    2. Install the seatback cover (with pad) to the seatback frame.
    3. Install the 2 headrest supports.
    4. Using hog ring pliers, install 12 new hog rings.
    5. Install the 7 clips.
    6. Install the rear seatback cover.
    7. Install the seatback stop button grommet.
    8. Install the shoulder belt guide with the 2 screws.
    9. Install the rear seatback lock release button.
25. INSTALL REAR SEAT CUSHION COVER
    1. Using hog ring pliers, install the cushion cover to the cushion pad with 51 new hog rings.
    NOTE:

    • Be careful not to damage the cover.
    • When installing the hog rings, minimize wrinkles as much as possible.
26. INSTALL REAR SEATBACK HINGE SUB-ASSY CENTER
    1. Install the hinge with the 2 bolts.

       Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

27. INSTALL REAR SEATBACK HINGE SUB-ASSY RH
    1. Install the hinge with the bolt.

       Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

28. INSTALL REAR SEATBACK HINGE SUB-ASSY LH
    1. Install the hinge with the bolt.

       Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

29. INSTALL REAR SEATBACK ASSY RH
    1. Install the seatback with the 2 bolts.

       Torque: 36.8 N.m (375 kgf.cm, 27 ft.lbf)

    2. Install the rear seat belt floor anchor with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

30. INSTALL REAR SEATBACK ASSY LH
    1. Install the seatback with the 2 bolts.

       Torque: 36.8 N.m (375 kgf.cm, 27 ft.lbf)

31. INSTALL REAR SEAT CUSHION ASSY

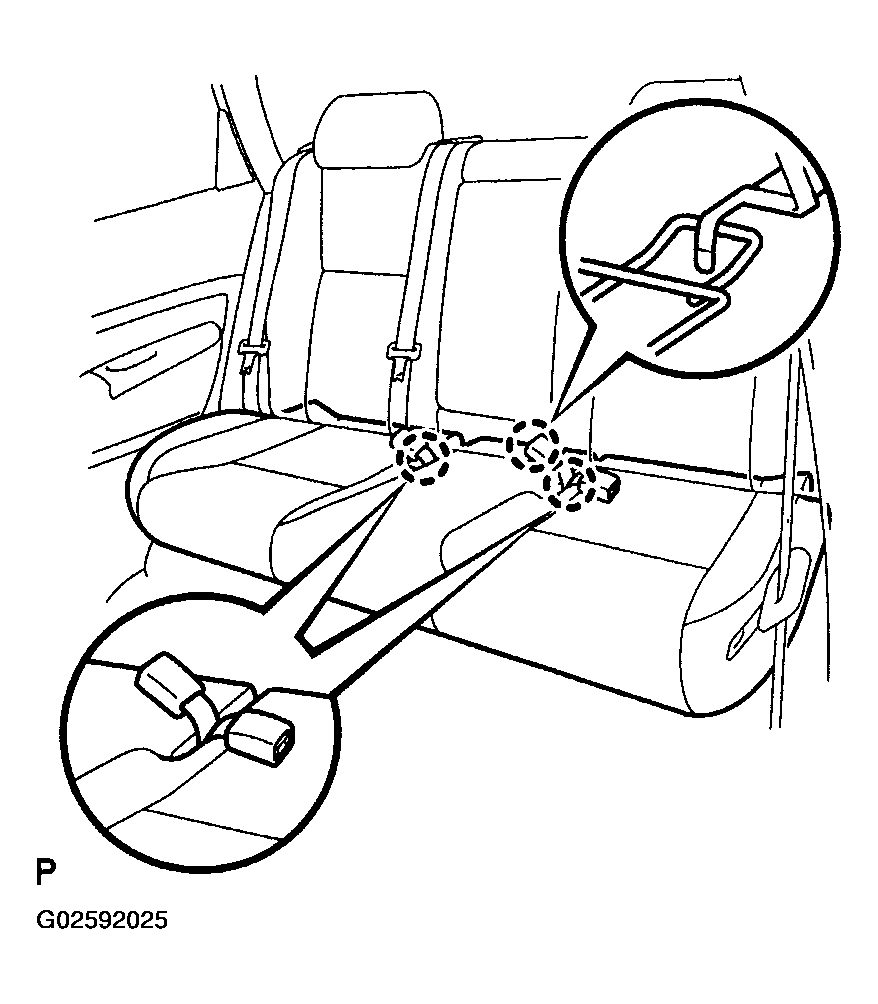

    1. Attach the seat cushion's rear hooks to the seatback hinge sub-assy center.
    2. Insert the inner belts through the slits on the seat cushion.
       Fig 21: Attaching Seat Cushion's Rear Hooks To Seatback Hinge

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 seat cushion's front hooks to the rear seat cushion lock hooks.

    HINT:

    Confirm that the seat cushion is firmly installed.

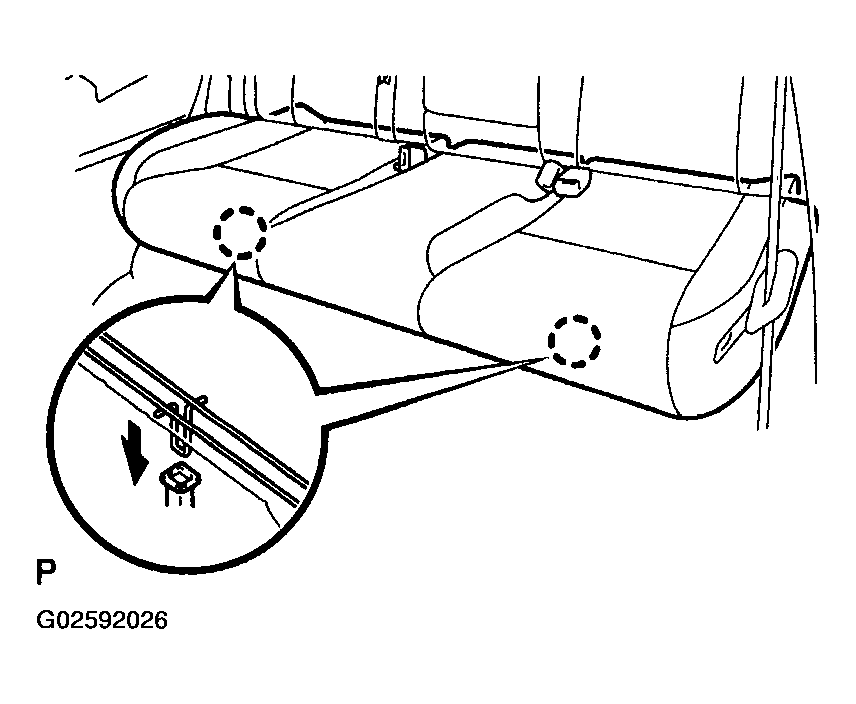

    Fig 22: Attaching Seat Cushion's Front Hooks To Rear Seat Cushion Lock Hooks

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
