Inspection Procedure

NOTE: When replacing the ABS & TRACTION actuator assy, perform zero point calibration (see CALIBRATION ).
  1. CHECK DTC
    1. Is DTC output for ABS and VSC?

    Result:

    RESULT

    DTC is not output A
    DTC is output B

    B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE

    A: Go to next step.

  2. INSPECT SKID CONTROL ECU CONNECTOR
    1. Check the ECU connector's connecting condition.

    OK: The connector should be securely connected.

    NG: CONNECT CONNECTOR TO ECU CORRECTLY

    OK: Go to next step.

  3. INSPECT BATTERY
    1. Check the battery voltage.

    Standard:

    Voltage: 11 to 14 V

    NG: INSPECT CHARGING SYSTEM (SEE  ON-VEHICLE INSPECTION  )

    OK: Go to next step.

  4. INSPECT SKID CONTROL ECU TERMINAL VOLTAGE (IG1 TERMINAL)

    WHEN USING HAND-HELD TESTER:

    1. Connect the hand-held tester to the DLC3.
    2. Start the engine.
    3. Select the DATA LIST mode on the hand-held tester.

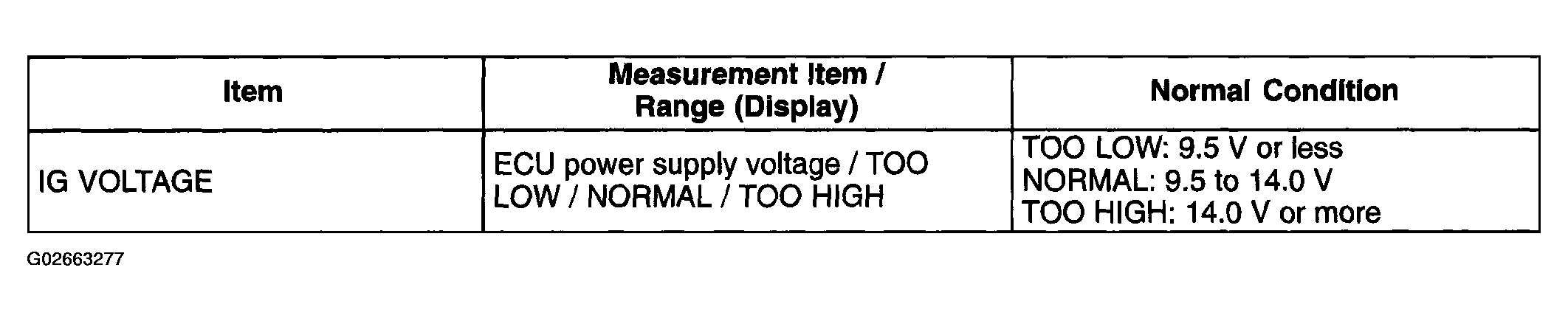

      Fig 1: Voltage Condition Chart
      G02663277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the voltage condition output from the ECU displayed on the hand-held tester.

    OK: "Normal" is displayed.

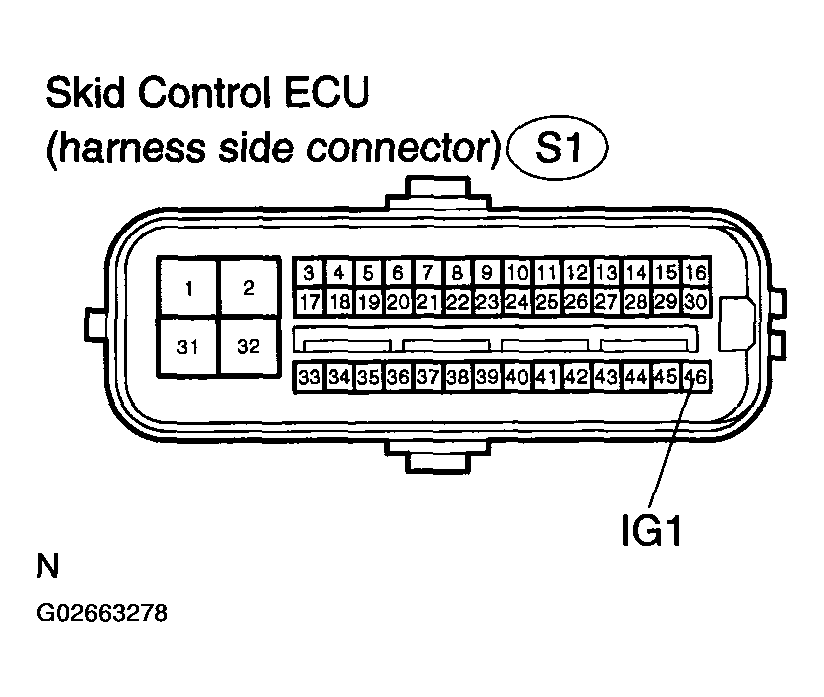

    Fig 2: Inspecting Skid Control ECU Terminal Voltage (IG1 Terminal)
    G02663278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    WHEN NOT USING HAND-HELD TESTER:

    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (1 OF 4)

      Tester Connection Condition Specified Condition
      S1-46 (IG1) - Body ground IG switch ON 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)

    OK: Go to next step.

  5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the skid control ECU connector and combination meter connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (2 OF 4)

      Tester Connection Specified Condition
      C18-1 - S1-36 (VSCW) Below 1 Ω
    3. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (3 OF 4)

      Tester Connection Specified Condition
      S1-36 (VSCW) - Body ground 10 kΩ or higher

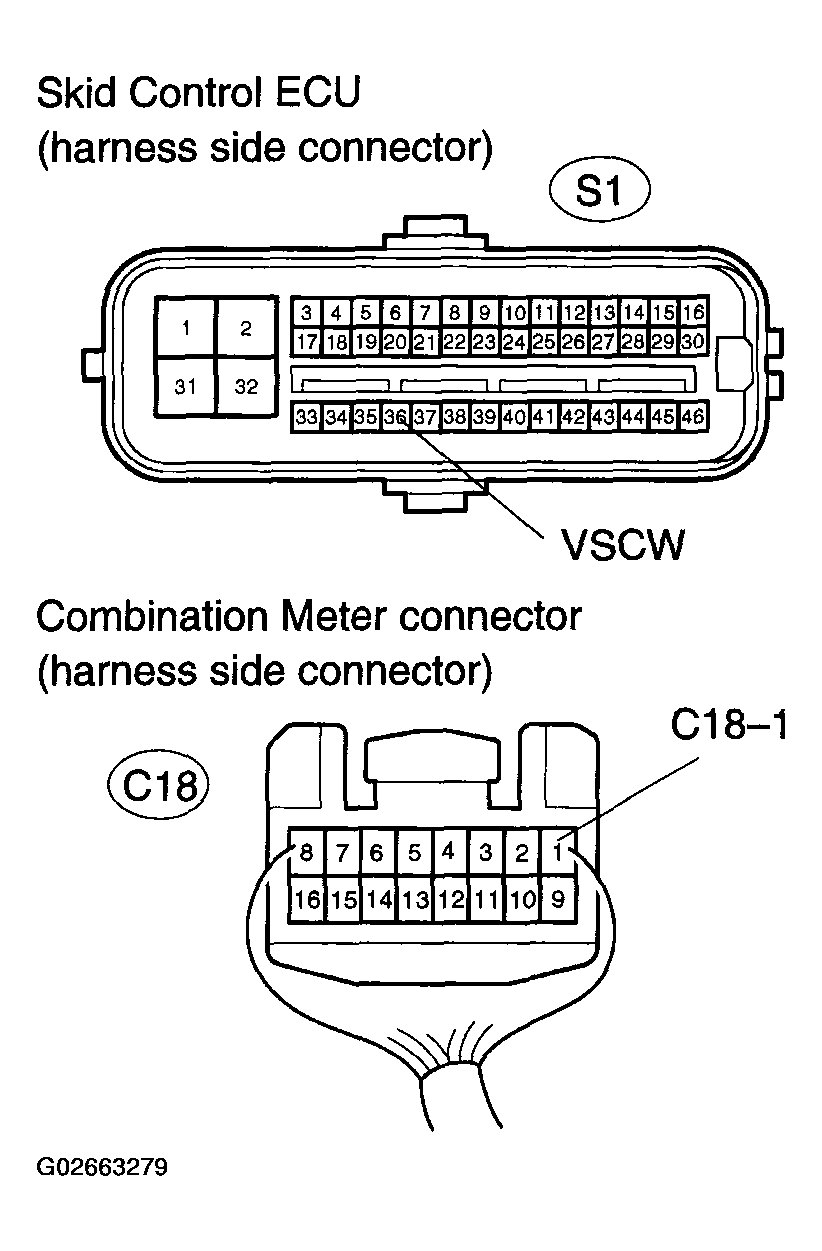

      Fig 3: Checking Harness And Connector (Skid Control ECU - Combination Meter)
      G02663279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  6. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BODY GROUND)
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (4 OF 4)

      Tester Connection Specified Condition
      S1-32 (GND1) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

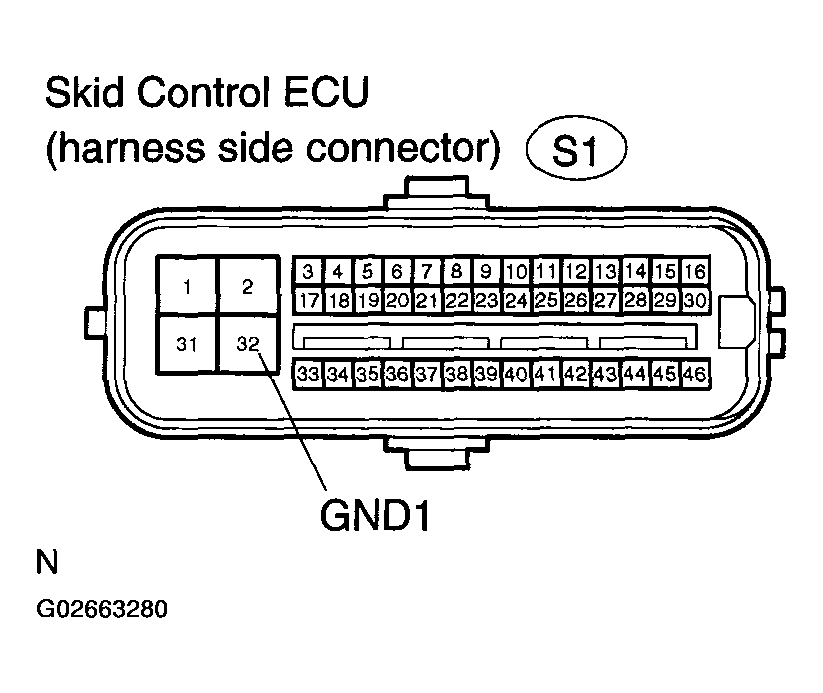

    Fig 4: Checking Harness And Connector (Skid Control ECU - Body Ground)
    G02663280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step.

  7. INSPECT COMBINATION METER ASSY
    1. Check combination meter assy (see COMBINATION METER ).

    NG: CHECK COMBINATION METER ASSY (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )

    OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )
