Inspection Procedure

NOTE: When replacing the ABS & TRACTION actuator assy, perform zero point calibration (see CALIBRATION ).
  1. CHECK VSC WARNING LIGHT

    WHEN USING HAND-HELD TESTER:

    1. Connect the hand-held tester to the DLC3 and start the engine.
    2. Select the "VSC WARN LIGHT" in the ACTIVE TEST and operate the VSC warning light on the hand-held tester.
      DATA LIST

      Item  Vehicle Condition / Test Details Diagnostic Note
      VSC WARN LIGHT Turns VSC warning light ON / OFF Observe combination meter
    3. Check that "ON" and "OFF" of the VSC warning light are indicated on the combination meter when using the hand-held tester.

    OK: The VSC warning light turns on or off in accordance with the hand-held tester.

    Fig 1: Checking VSC Warning Light
    G02663281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    WHEN NOT USING HAND-HELD TESTER:

    1. Turn the ignition switch off and disconnect the connector from the skid control ECU.
    2. Ground terminal VSCW of the skid control the ECU.
    3. Turn the ignition switch to the ON position.
    4. Check the VSC warning light.

    OK: Go to next step.

    ILLUMINATION CONDITION

    VSCW - GND Condition Illumination Condition
    Connected ON
    Disconnected OFF

    NG: Go to step 2

    OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the skid control ECU connector and combination meter connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (1 OF 2)

      Tester Connection Specified Condition
      C18-1 - S1-36 (VSCW) Below 1 Ω
    3. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (2 OF 2)

      Tester Connection Specified Condition
      S1-36 (VSCW) - Body ground 10 kΩ or higher

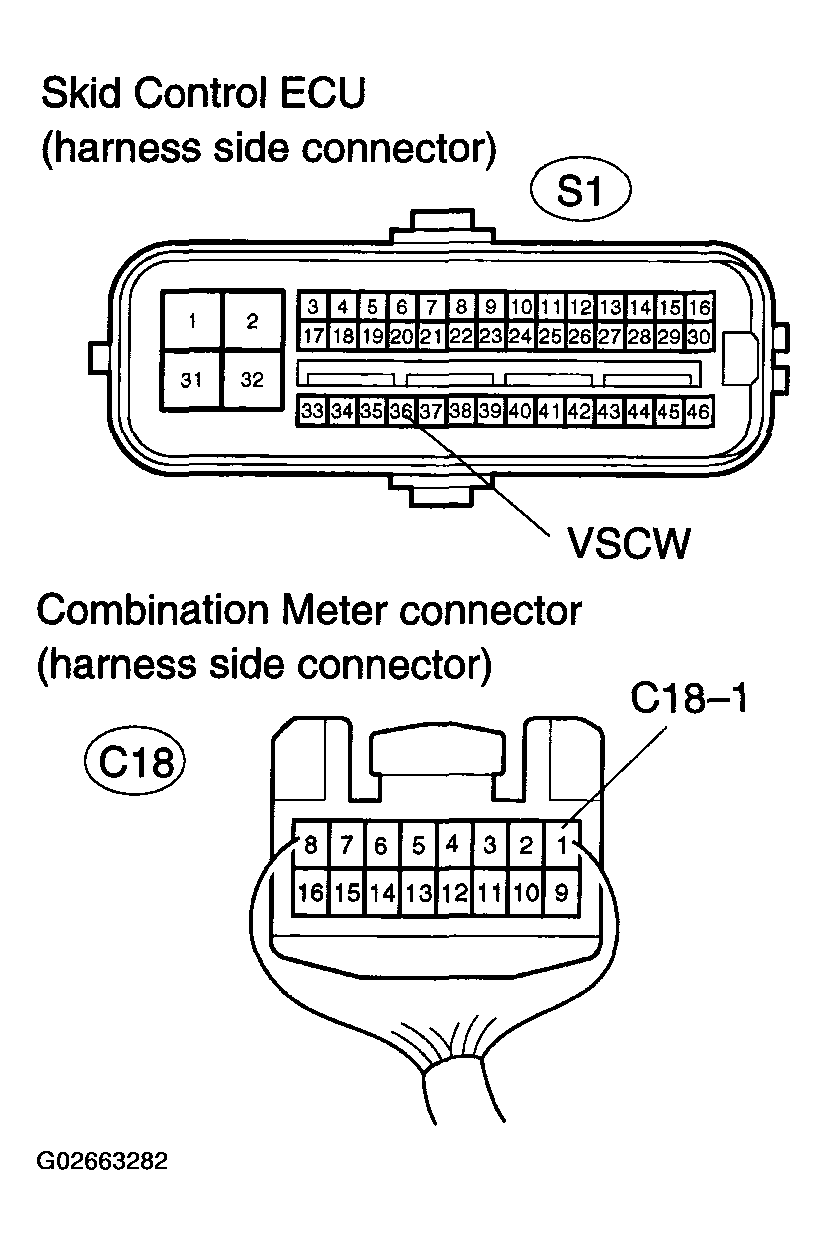

      Fig 2: Checking Harness And Connector (Skid Control ECU - Combination Meter)
      G02663282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  3. INSPECT COMBINATION METER ASSY
    1. Check combination meter assy (see COMBINATION METER ).

    NG: CHECK COMBINATION METER ASSY (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )

    OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )
