Inspection Procedure
NOTE:
When replacing the ABS & TRACTION actuator assy, perform zero point calibration (see
CALIBRATION ).
- INSPECT DLC3 TERMINAL VOLTAGE (TS TERMINAL)
- Turn the ignition switch to the ON position.
- Measure the voltage according to the value (s) in the table below.
Standard:
VOLTAGE CONDITIONTester Connection Condition Specified Condition D1-12 (TS)-D1-4 (CG) IG switch ON 10 to 14 V NG: Go to step 3
OK: Go to next step.

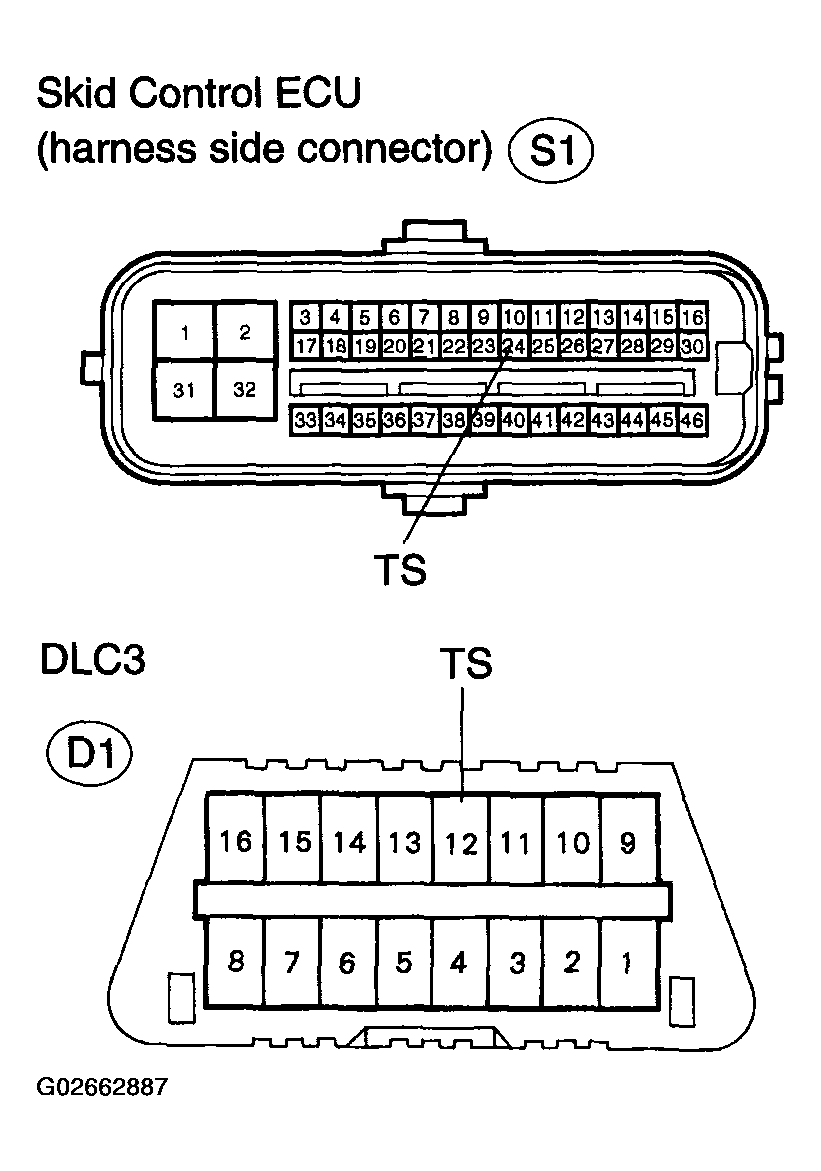

- CHECK HARNESS AND CONNECTOR (DLC3 - SKID CONTROL ECU)
- Disconnect the skid control ECU connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
RESISTANCE CONDITION (1 OF 5)Tester Connection Specified Condition S1-24 (TS)-D1-12 (TS) Below 1 Ω - Measure the resistance according to the value (s) in the table below.
Standard:
RESISTANCE CONDITION (2 OF 5)Tester Connection Specified Condition S1-24 (TS) - Body ground 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT )
- CHECK HARNESS AND CONNECTOR (BODY GROUND - DLC3)
- Measure the resistance according to the value (s) in the table below.
Standard:
RESISTANCE CONDITION (3 OF 5)Tester Connection Specified Condition D1-4 (CG) - Body ground Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step.

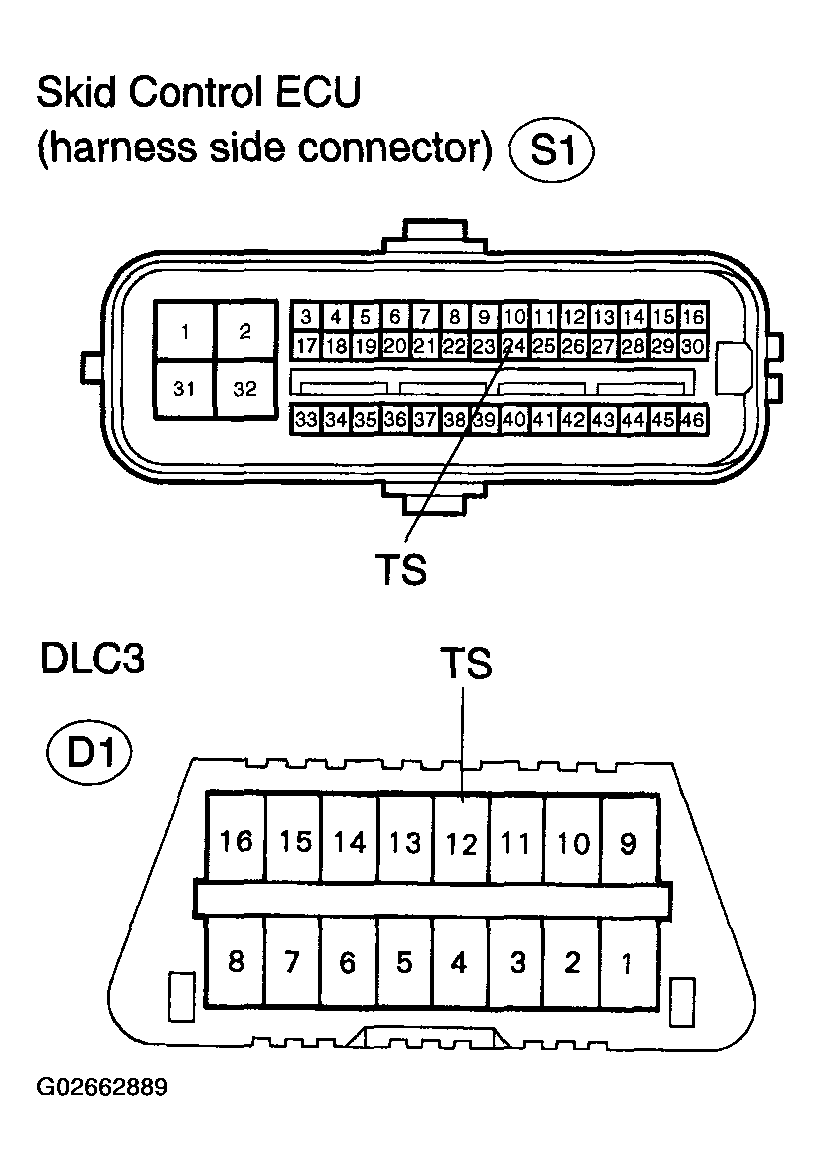

- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
- Disconnect the skid control ECU connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
RESISTANCE CONDITION (4 OF 5)Tester Connection Specified Condition S1-24 (TS)-D1-12 (TS) Below 1 Ω - Measure the resistance according to the value (s) in the table below.
Standard:
RESISTANCE CONDITION (5 OF 5)Tester Connection Specified Condition S1-24 (TS) - Body ground 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT )
