Inspection Procedure

HINT:

Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.

1. PERFORM ACTIVE TEST BY HAND-HELD TESTER (SLIP INDICATOR LIGHT)
   1. Connect the hand-held tester to the DLC3.
   2. Start the engine.
   3. Select the "SLIP INDI LIGHT" in the ACTIVE TEST and operate the SLIP indicator light by the hand held tester.
      TEST CONDITION REFERENCE



      Item	Vehicle Condition / Test Details	Diagnostic Note
      SLIP INDI LIGHT	Turns SLIP indicator light ON / OFF	Observe combination meter

   4. Check that "ON" and "OFF" of the SLIP indicator light are indicated on the combination meter when using the hand-held tester.

   OK: Turn the SLIP indicator light on or off in accordance with the hand-held tester.

   NG: Go to step 2

   OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )

2. INSPECT TRACTION CONTROL SWITCH
   1. Remove the traction control switch.
   2. Measure the resistance according to the value (s) in the table below.

   Standard:

   RESISTANCE CONDITION (1 OF 4)



   Tester Connection	Condition	Specified Condition
   T8-9 (+)-T8-6 (E)	Pushed in	Continuity
   T8-9 (+)-T8-6 (E)	Released	10 kΩ or higher

   Fig 1: Identifying Connector Terminal Traction Control Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE TRACTION CONTROL SWITCH

   OK: Go to next step.

3. CHECK HARNESS AND CONNECTOR (CSW TERMINAL CIRCUIT)
   1. Disconnect the traction control switch connector and the skid control ECU connector.
   2. Measure the resistance according to the value (s) in the table below.

   Standard:

   RESISTANCE CONDITION (2 OF 4)



   Tester Connection	Specified Condition
   S1-43 (CSW)-T8-9	Below 1 Ω
   S1-43 (CSW) - Body ground	10 kΩ or higher
   T8-6- Body ground	Below 1 Ω

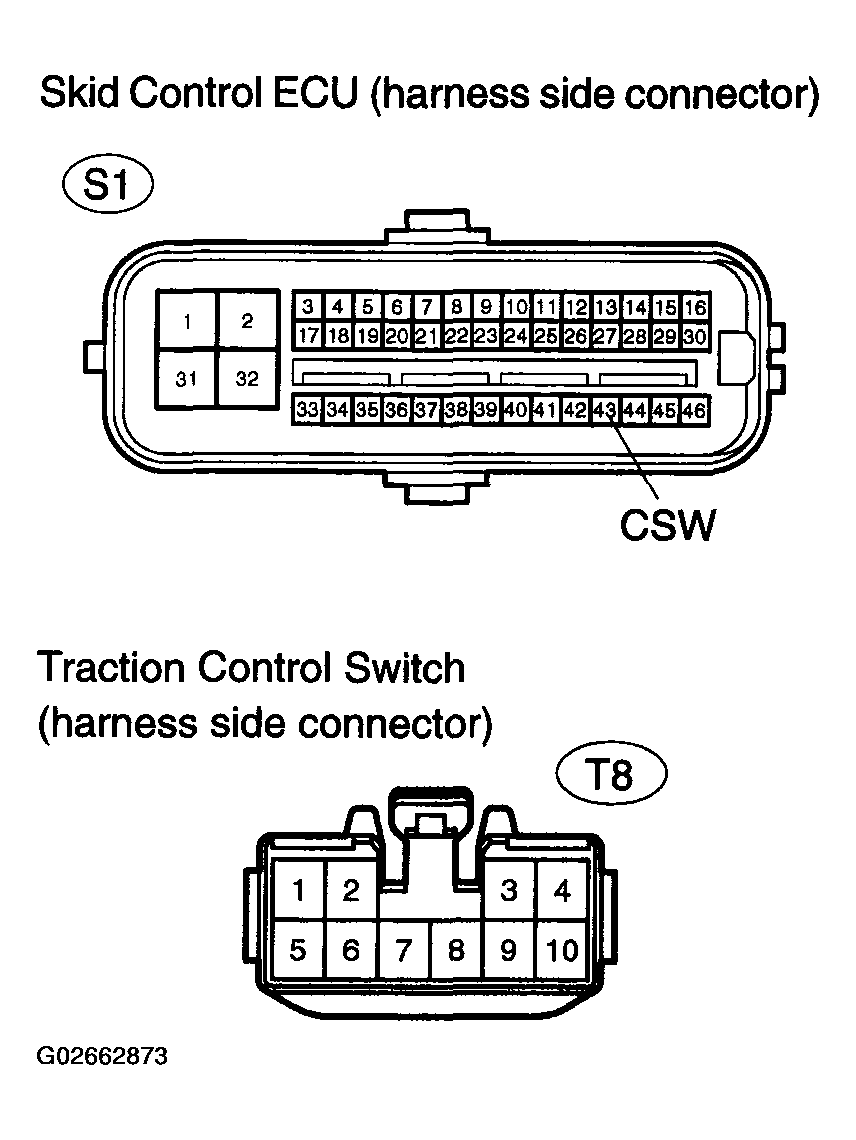

   Fig 2: Identifying Connector Terminal CSW Terminal Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next step.

4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - SKID CONTROL ECU)
   1. Disconnect the skid control ECU connector and combination meter connector.
   2. Measure the resistance according to the value (s) in the table below.

      Standard:

      RESISTANCE CONDITION (3 OF 4)



      Tester Connection	Specified Condition
      C18-3-S1-34 (IND)	Below 1 Ω

   3. Measure the resistance according to the value (s) in the table below.

   Standard:

   RESISTANCE CONDITION (4 OF 4)



   Tester Connection	Specified Condition
   S1-34 (IND)- Body ground	10 kΩ or higher

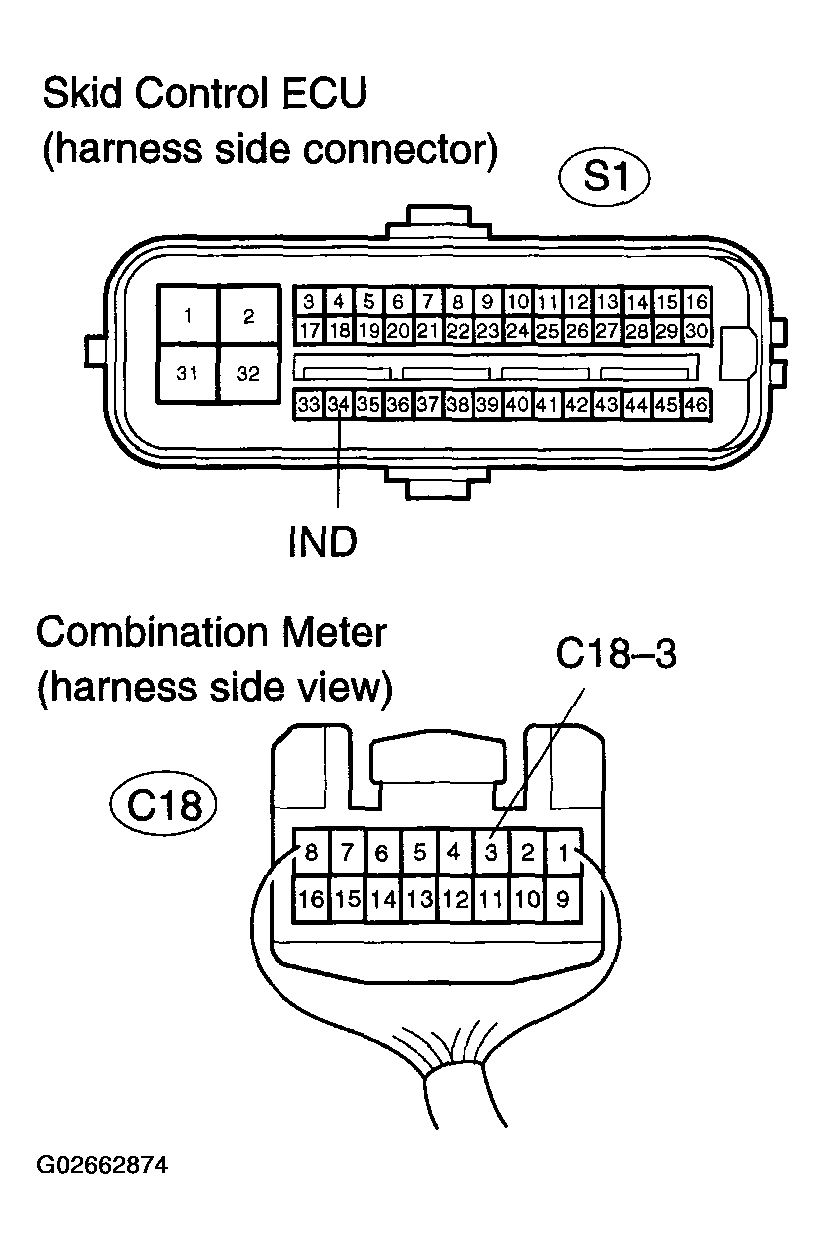

   Fig 3: Identifying Connector Terminal Combination Meter - Skid Control ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS CONNECTOR

   OK: Go to next step.

5. INSPECT COMBINATION METER ASSY
   1. Check combination meter assy (see COMBINATION METER ).

   NG: CHECK COMBINATION METER ASSY (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )

   OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )
