Inspection Procedure
NOTE:
When replacing the ABS & TRACTION actuator assy, perform zero point calibration (see
CALIBRATION ).
- CHECK STOP LAMP SWITCH OPERATION
- Check that the stop light comes on when the brake pedal is depressed and goes off when the brake pedal is released.
OK: Stop lamp switch function is normal.
HINT:
Check the stop lamp bulb as it may have burnt out.
NG: Go to step 3
OK: Go to next step.

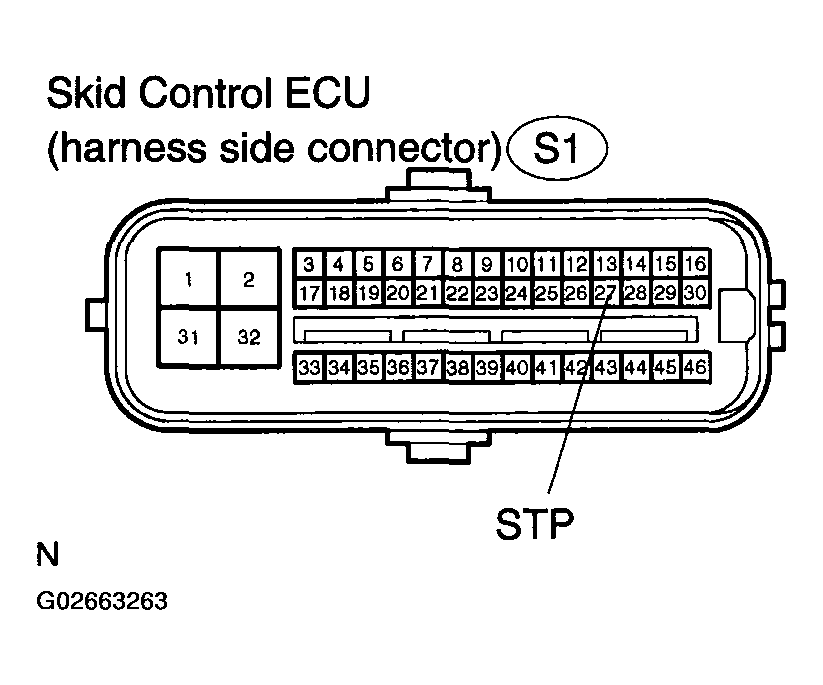

- INSPECT SKID CONTROL ECU TERMINAL VOLTAGE (STP TERMINAL)
- Disconnect the skid control ECU connector.
- Measure the voltage according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION (1 OF 4)Tester Connection Switch condition Specified Condition S1-27 (STP) - Body ground Brake pedal depressed 8 to 14 V S1-27 (STP) - Body ground Brake pedal released Below 1 V
NG: Go to step 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT )
- INSPECT STOP LAMP SWITCH ASSY
- Disconnect the stop lamp switch assy connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION (2 OF 4)Switch condition Tester connection Specified condition Switch pin free 1 - 2 Below 1 Ω Switch pin pushed in 1 - 2 10 kΩ or higher
NG: REPLACE STOP LAMP SWITCH ASSY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: Go to next step.

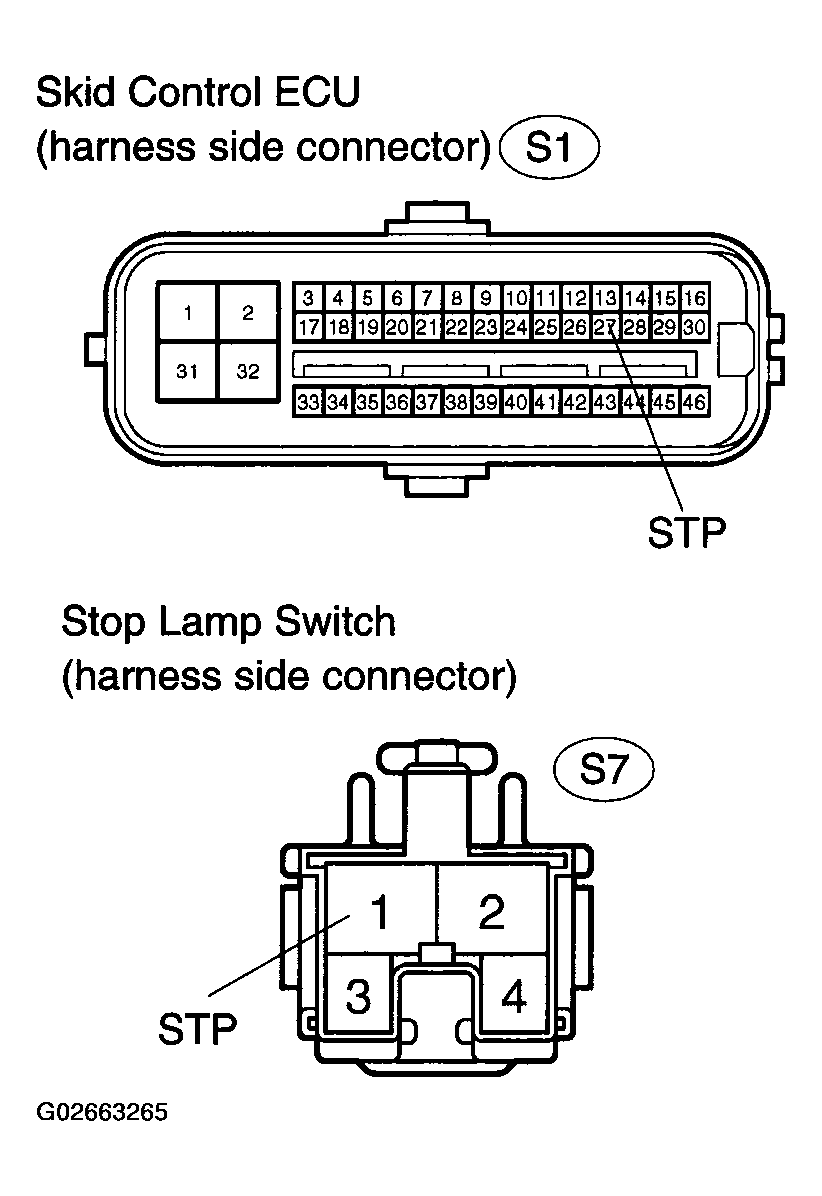

- CHECK HARNESS AND CONNECTOR (STOP LAMP SWITCH - SKID CONTROL ECU)
- Disconnect the stop lamp switch connector and skid control ECU connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION (3 OF 4)Tester Connection Specified Condition S1-27 (STP) - S7-1 (STP) Below 1 Ω - Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION (4 OF 4)Tester Connection Specified Condition S1-27 (STP) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT )
