Inspection Procedure

1. Check if the connector is connected.

OK: The connector should be securely connected.

NG: CONNECT CONNECTOR TO ECU CORRECTLY

OK: Go to next step.

1. Disconnect the skid control ECU connector and the ECM connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION (1 OF 2)



   Tester Connection	Specified Condition
   S1-10 (NEO) - E6-17 (NEO)	Below 1 Ω

3. Measure the resistance according to the value (s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION (2 OF 2)



   Tester Connection	Specified Condition
   S1-10 (NEO) - Body ground	10 kΩ or higher

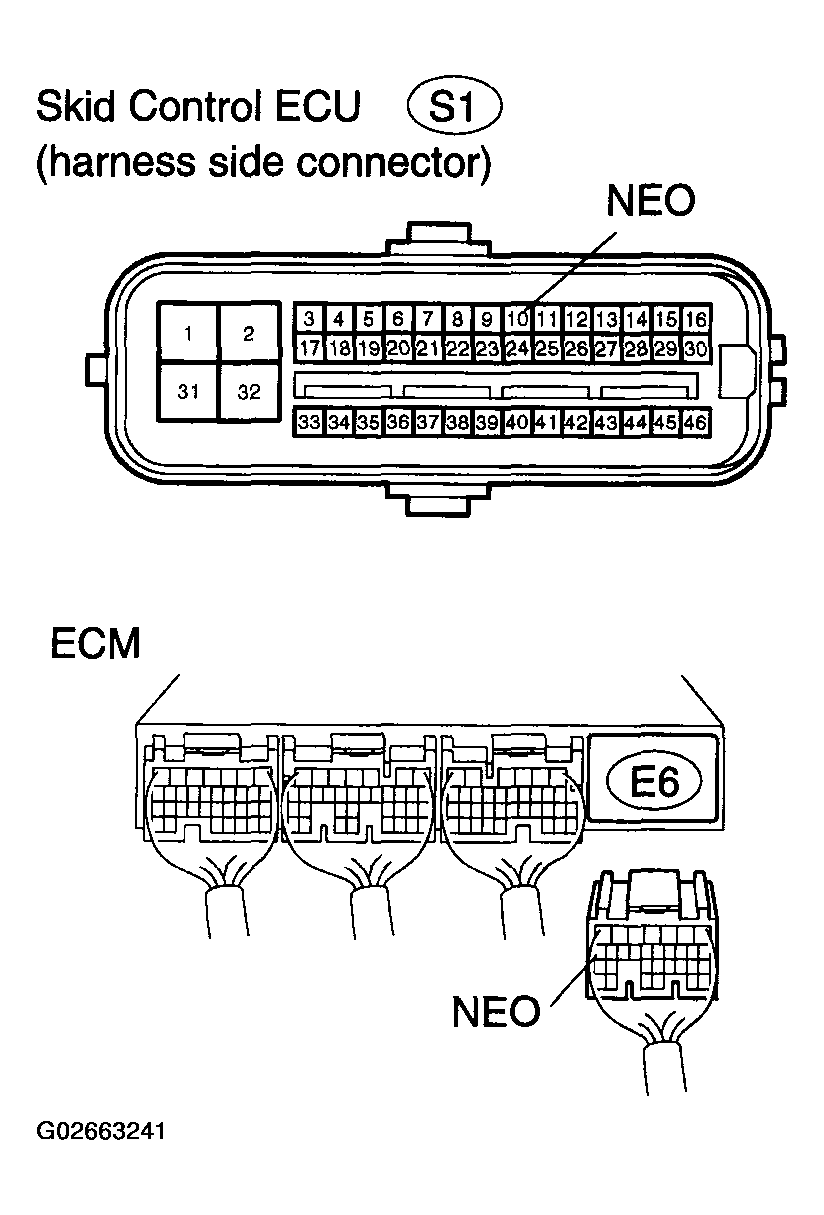

   Fig 1: Checking Harness And Connector (Skid Control ECU - ECM)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.

1. Reconnect the ECM connector and the skid control ECU connector.
2. Check the signal waveform between terminal NEO (E6-17) of the ECM and body ground for the engine conditions below.

Standard:

Fig 2: Tester Connection Specified Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Connecting ECM Connector And Skid Control ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Checking Signal Waveform Between Terminal NEO (E6-17) Of ECM And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE ECM

OK: Go to next step.

1. Clear the DTCs (see DTC CHECK/CLEAR ).
2. Turn the ignition switch to the ON position.

Are the same DTCs recorded?

NG: END

HINT:

This DTC may be memorized due to a malfunction in the connector terminal.

YES: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )
