Brake Booster Assembly: Removal

REMOVE MASTER CYLINDER (See REMOVAL )
REMOVE TOOL BOX
DISCONNECT VACUUM HOSE FROM BRAKE BOOSTER
REMOVE 2 BRAKE LINES
Using SST, remove the 2 brake lines from the ABS actuator.

SST 09023-00100
REMOVE BRAKE BOOSTER
1. Using needle-nose pliers, remove the return spring and clip.
2. Remove the clevis pin and wave washer.

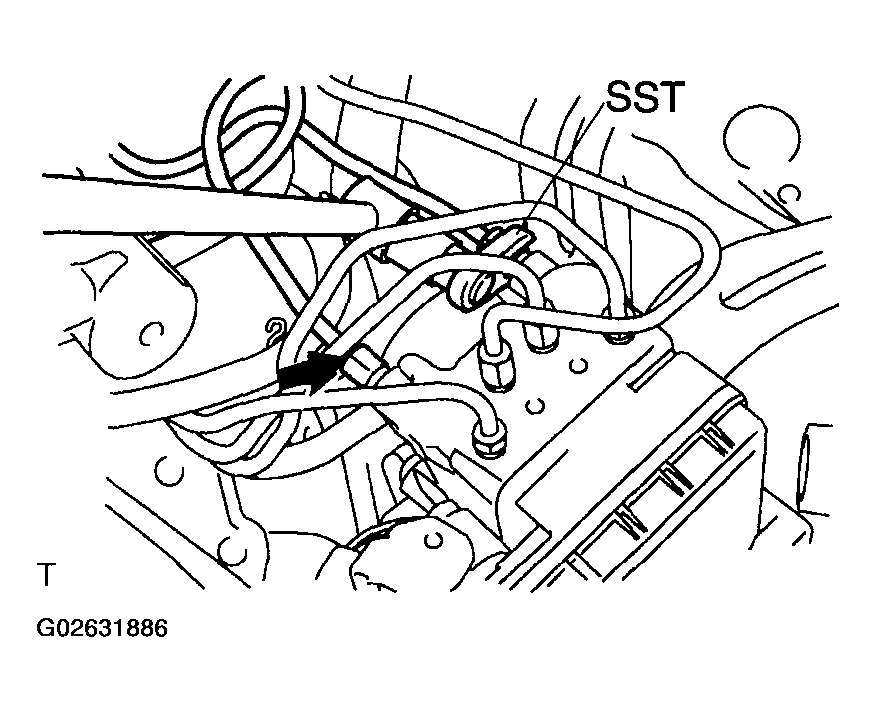

  Fig 1: Removing Brake Lines From ABS Actuator Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 nuts.
4. Pull out the brake booster and gasket.

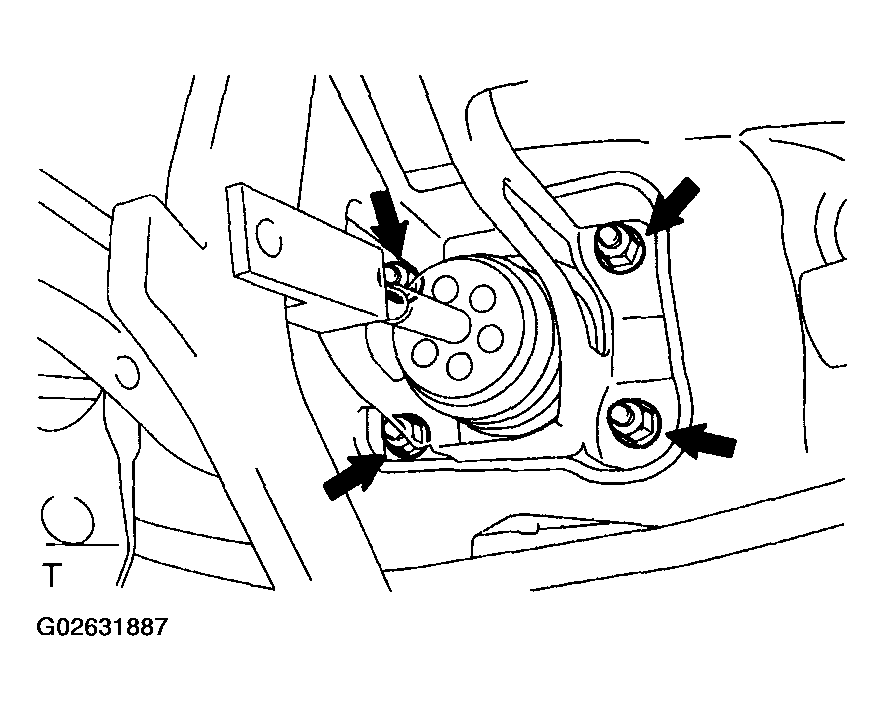

Fig 2: Identifying Brake Booster Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
