Brake Master Cylinder: Removal

  1. REMOVE LUGGAGE COMPARTMENT TRIM BOX COVER
  2. DISCONNECT LEVEL WARNING SWITCH CONNECTOR
  3. DRAW OUT FLUID WITH SYRINGE
    NOTE: Do not let brake fluid remain on a painted surface. Wash it off immediately.
  4. DISCONNECT BRAKE LINES FROM BRAKE MASTER CYLINDER

    Using SST, disconnect the 2 brake lines.

    SST 09023-00100

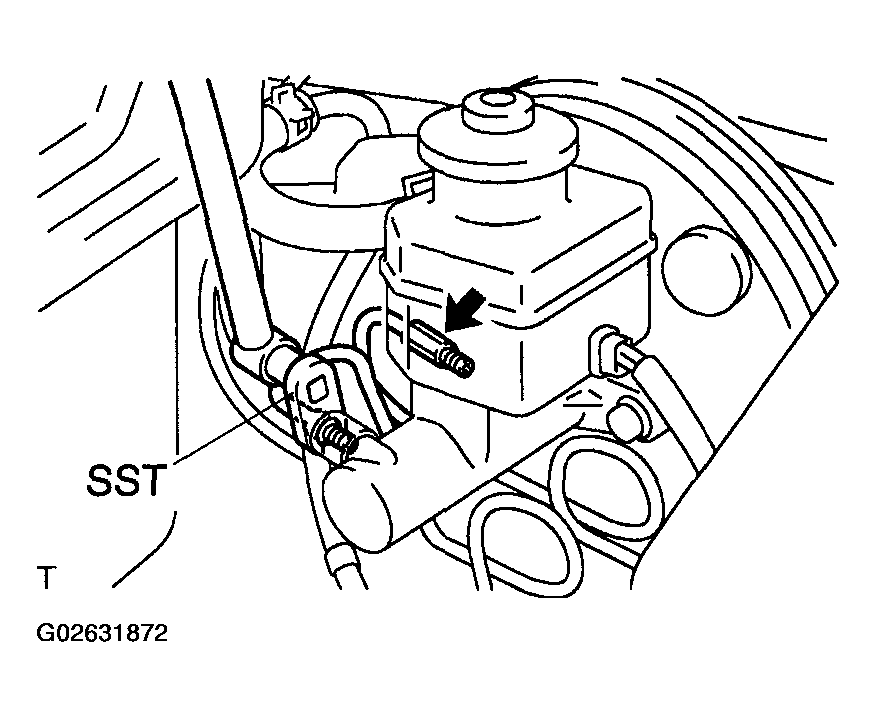

    Fig 1: Disconnecting Brake Lines Using SST
    G02631872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BRAKE MASTER CYLINDER
    1. Remove the 2 nuts.
    2. Pull out the master cylinder.
    3. Remove the O-ring from the master cylinder.

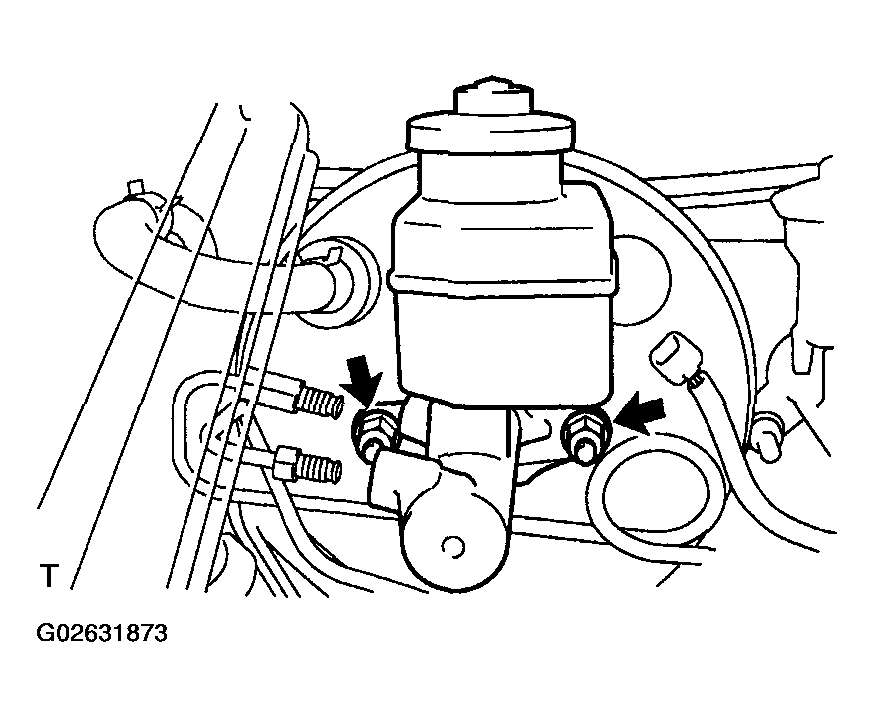

    Fig 2: Identifying Master Cylinder Nuts
    G02631873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
