Brake Pedal: Removal

  1. REMOVE HYDRAULIC BRAKE BOOSTER ASSEMBLY (See  REMOVAL   )
  2. REMOVE BRAKE PEDAL ASSEMBLY
    1. Disconnect the connector from the stop light switch.
    2. Remove the 2 bolts.
    3. Remove the brake pedal assembly.

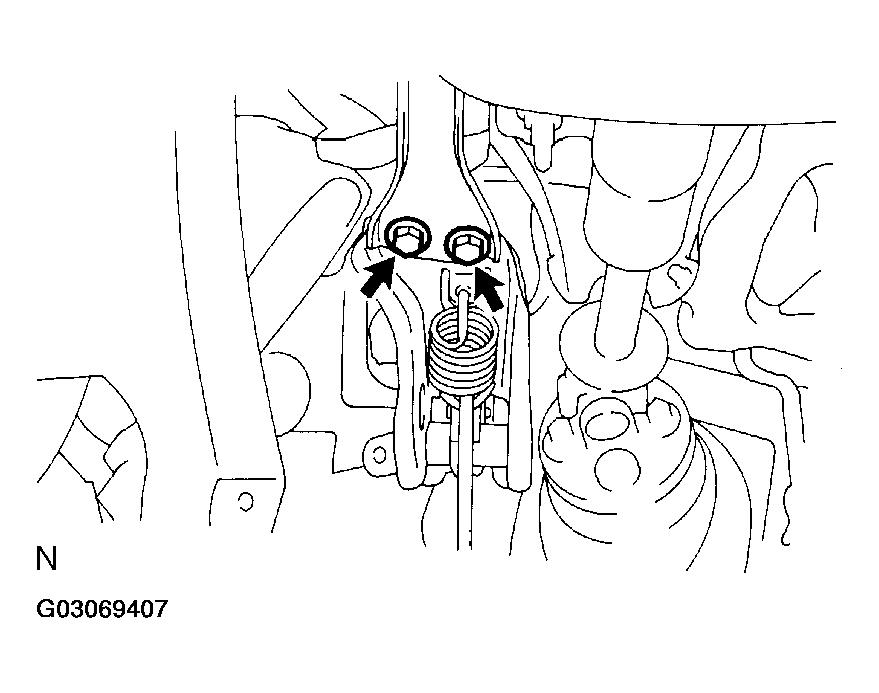

      Fig 1: Removing Brake Pedal Assembly
      G03069407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISASSEMBLY BRAKE PEDAL ASSEMBLY
    1. Remove the return spring with cushion.
    2. Remove the stop light switch.
    3. Remove the pedal pad.
