Hydraulic Brake Booster: Removal
NOTE:
Before starting the work, make sure that the ignition switch is OFF and depress the brake pedal more than 40 times.
HINT:
When a pressure in power supply system is released, reaction force becomes light and stroke becomes longer.
NOTE:
- As high pressure is applied to the brake actuator tube No. 1, never deform it.
- Until the work is over, do not turn the ignition switch ON.
- DRAW OUT FLUID WITH SYRINGE NOTE: Do not let brake fluid remain on a painted surface. Wash it off immediately.
- REMOVE SCUFF PLATE, COWL SIDE TRIM, LOWER NO. 1 PANEL, LH LOWER PANEL AND NO. 2 HEATER TO REGISTER DUCT (See COMPONENTS )
- REMOVE ABS OR ABS & TRAC & VSC ECU
Remove the 2 nuts and ABS or ABS & TRAC & VSC ECU.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

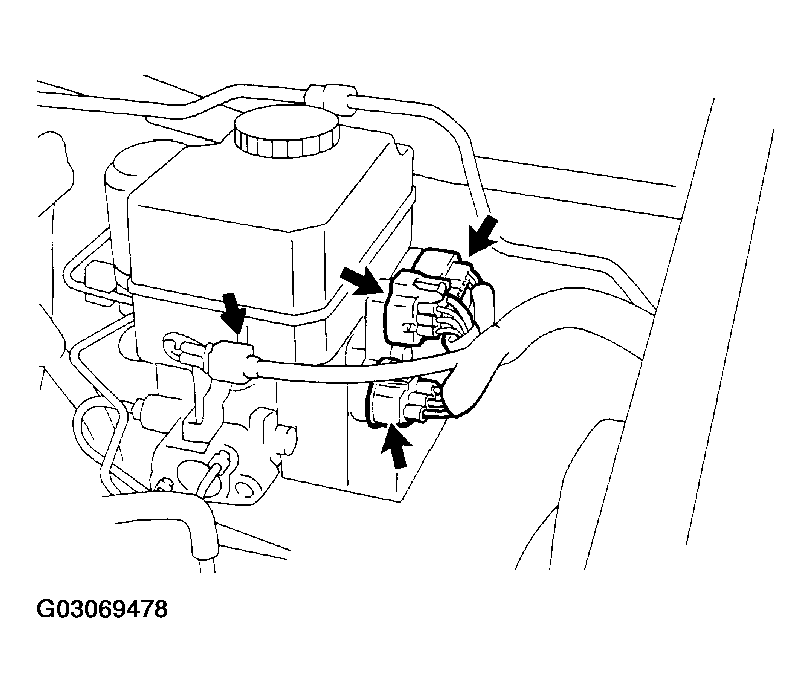

- w/ ABS only: DISCONNECT 4 CONNECTORS

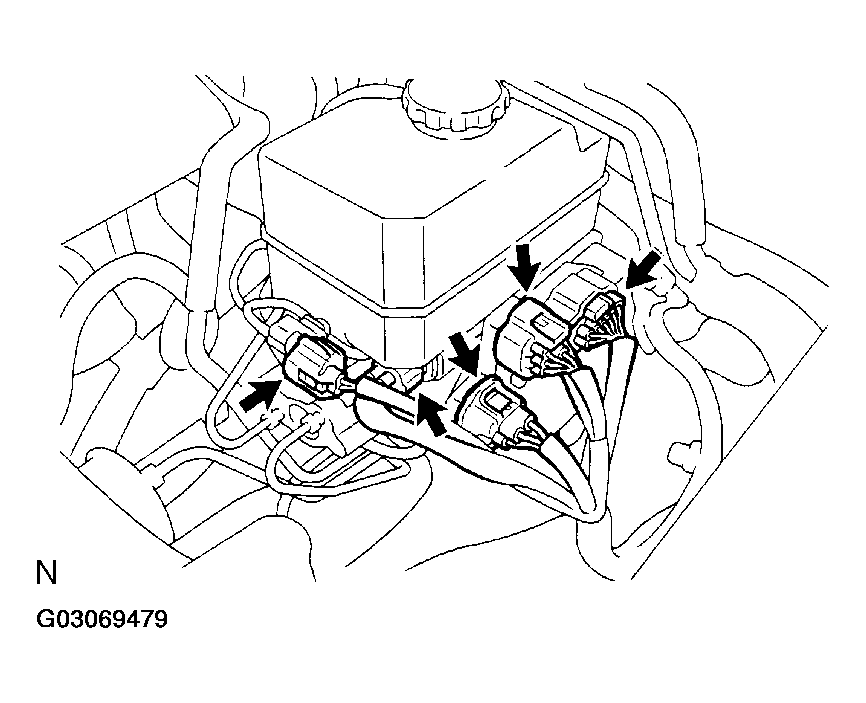

- w/ ABS & TRAC & VSC only: DISCONNECT 5 CONNECTORS

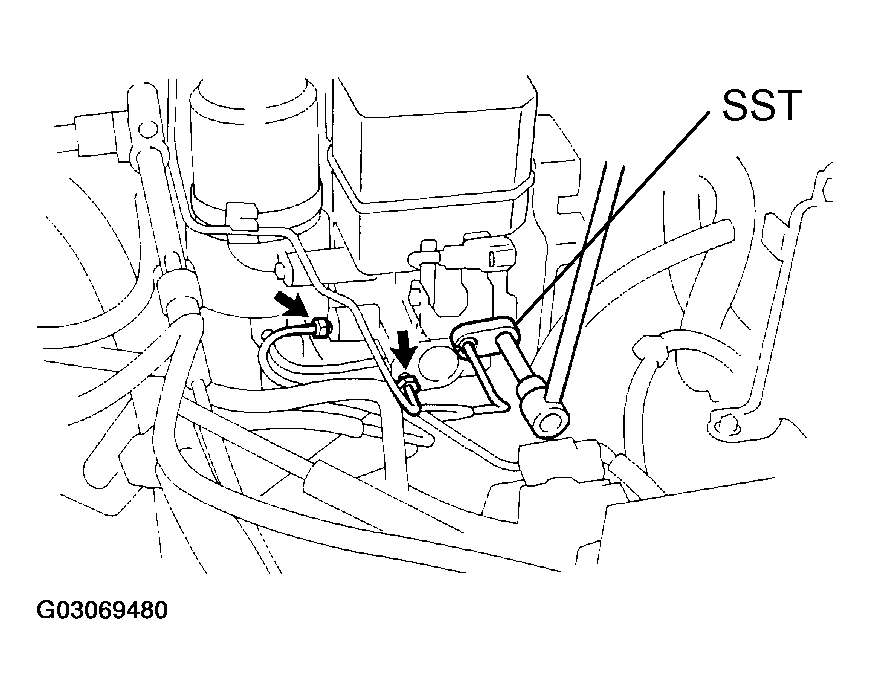

- w/ ABS only: DISCONNECT BRAKE LINES
Using SST, disconnect the 3 brake lines.
SST 09023-00101
Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

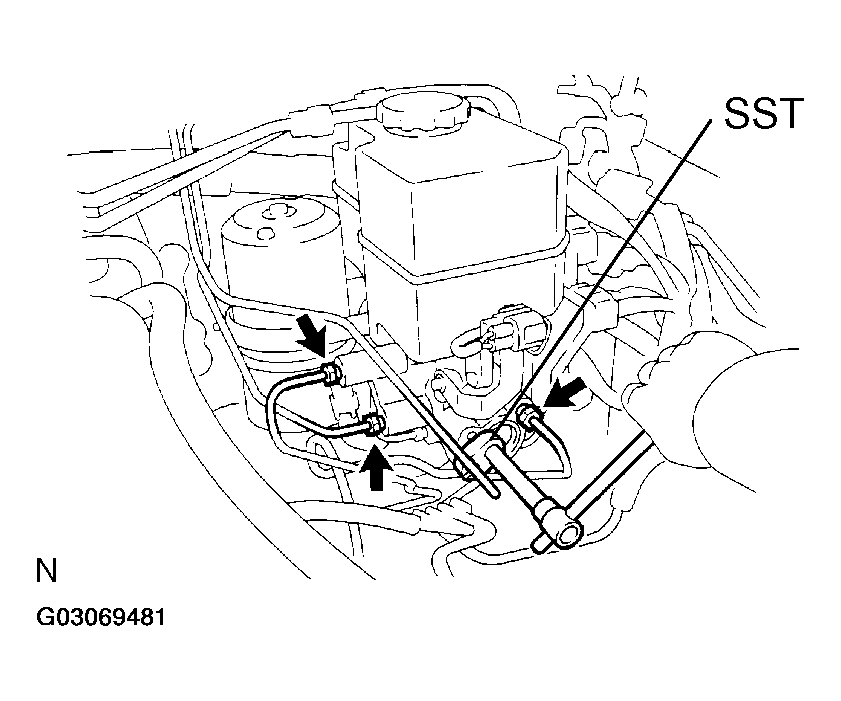

- w/ ABS & TRAC & VSC only: DISCONNECT BRAKE LINES
Using SST, disconnect the 4 brake lines.
SST 09023-00101
Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
- REMOVE CLIP AND CLEVIS PIN
- REMOVE HYDRAULIC BRAKE BOOSTER ASSEMBLY

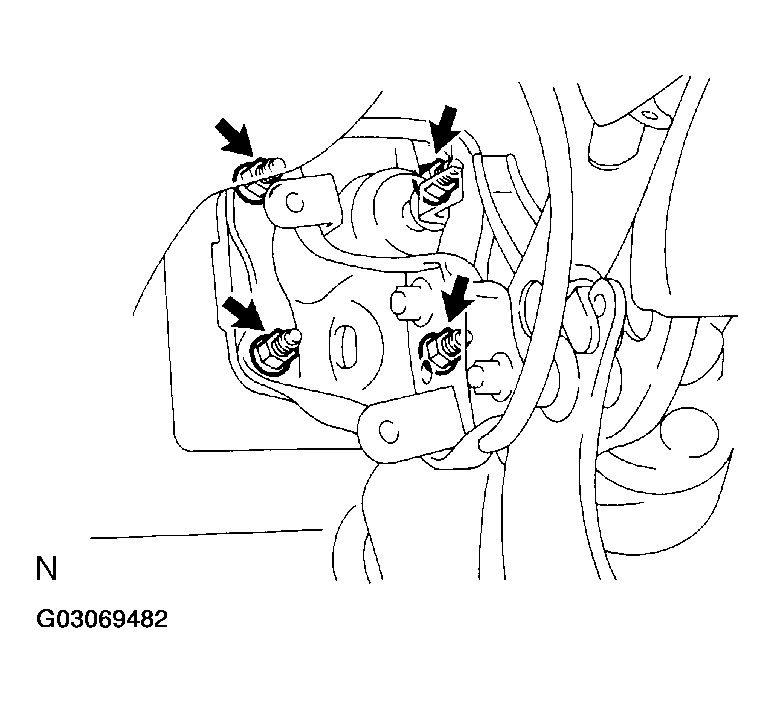

- Remove the 4 booster installation nuts.
Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
- Remove the booster assembly and gasket.
- Remove the 4 booster installation nuts.
