Seat Belt PRETENSIONER (Hatchback): Installation

NOTE:

Never use seat a belt pretensioner from another vehicle. When replacing parts, replace them with new parts.
Make sure that the front seat outer belt is installed with the specified torque.
If the front seat outer belt has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front seat outer belt with a new one.
When installing the front seat outer belt, take care that the wiring does not interfere with other parts and is not pinched between other parts.

3-door Vehicle:
INSTALL RETRACTOR OF FRONT SEAT OUTER BELT
1. Install the retractor of the front seat outer belt with the 2 bolts.
  Torque:

  Upper bolt: 4.7 N.m (48 kgf.cm, 42 in.lbf)

  Lower bolt: 41 N.m (420 kgf.cm, 30 ft.lbf)
2. Connect the pretensioner connector, as shown in the illustration.

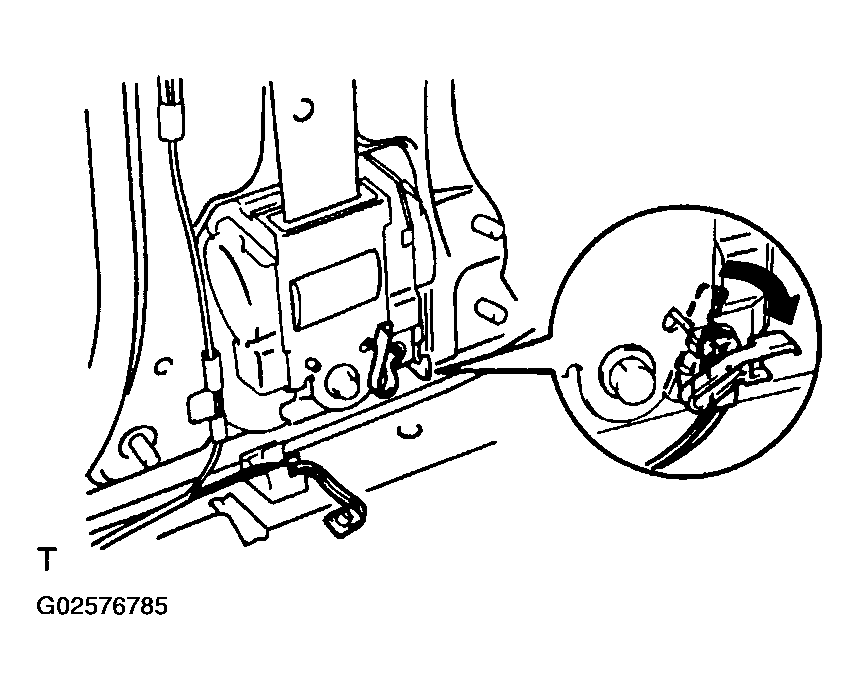

  Fig 1: Connecting Pretensioner Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the floor reinforcement to the body with the 4 bolts and 2 nuts.
4. Install the front seat outer belt floor anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
5. Install the floor anchor cover.
6. Install the front seat outer belt shoulder anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
3-door Vehicle:
3-door Vehicle: INSTALL FRONT QUARTER TRIM

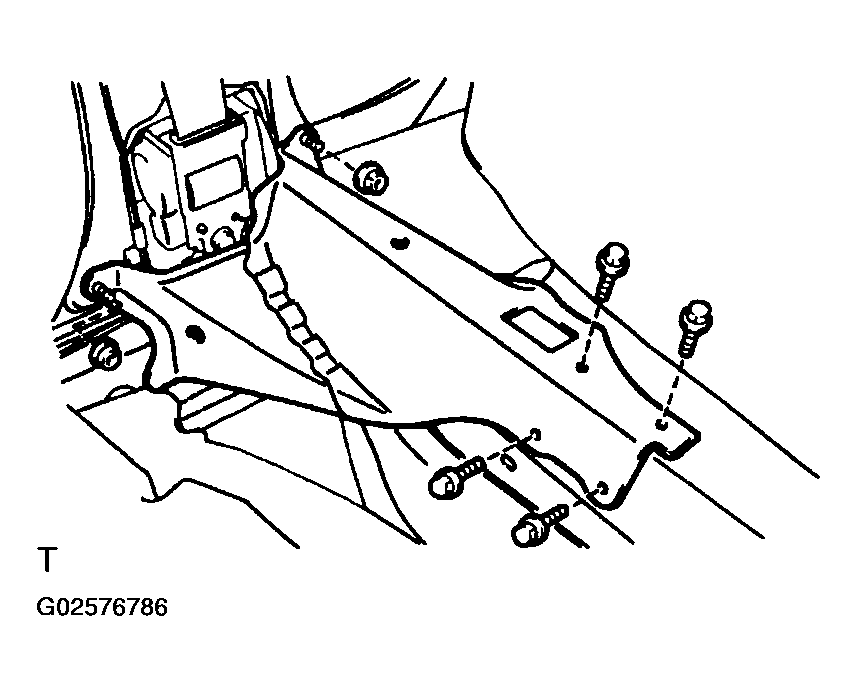

Fig 2: Installing Floor Reinforcement To Body With Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3-door Vehicle:
INSTALL FRONT DOOR OPENING TRIM
5-door Vehicle:
INSTALL RETRACTOR OF FRONT SEAT OUTER BELT
1. Install the retractor of the front seat outer belt with the 2 bolts.
  Torque:

  Upper bolt: 4.7 N.m (48 kgf.cm, 42 in.lbf)

  Lower bolt: 41 N.m (420 kgf.cm, 30 ft.lbf)
2. Connect the pretensioner connector, as shown in the illustration.
3. Install the front seat outer belt floor anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
4. Install the floor anchor cover.
5. Install the front seat outer belt shoulder anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
6. Install the seat belt anchor cover cap.

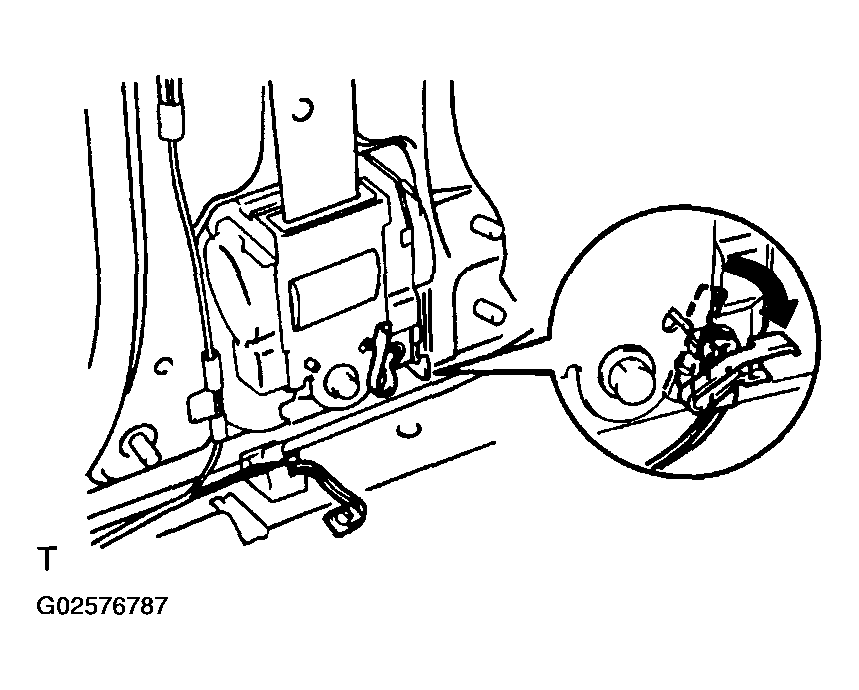

Fig 3: Connecting Pretensioner Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5-door Vehicle:
INSTALL CENTER PILLAR LOWER GARNISH
5-door Vehicle: INSTALL REAR DOOR SCUFF PLATE
INSTALL REAR SEAT (See INSTALLATION )
INSTALL PACKAGE TRAY TRIM PANEL
INSTALL FRONT DOOR SCUFF PLATE
