Rear Seat (Hatchback): Installation

Install the child restraint anchor bracket with the 4 bolts.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

Fig 1: Installing Child Restraint Anchor Bracket With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear seatback hinge with the bolt.

   Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

2. Use the same manner described above to the other side.

Fig 2: Installing Rear Seatback Hinge With Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Push the front portion of the seat cushion assembly to install it.
   NOTE: Confirm that the seat cushion assembly is installed firmly.
2. Install the 2 bolts.

   Torque: 31 N.m (316 kgf.cm, 22 ft.lbf)

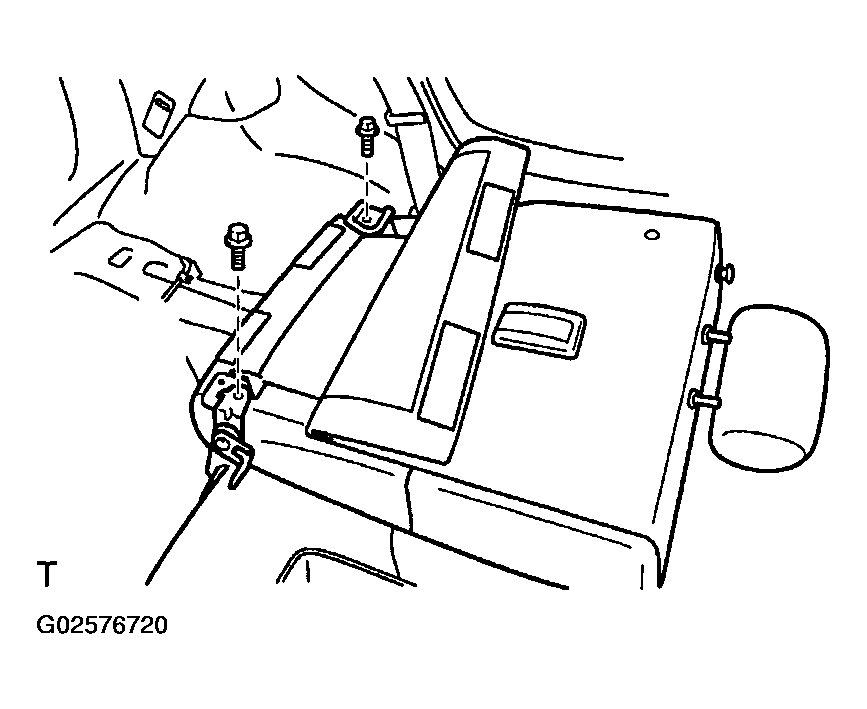

Fig 3: Installing Bolts Of Seat Cushion Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the seatback assembly with the 2 bolts.

   Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

   Fig 4: Installing Seatback Assembly With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Affix the seatback assembly to the floor carpet with the 2 clips.
3. Install the other using the same procedures described above.

Fig 5: Affixing Seatback Assembly To Floor Carpet With Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
