Seat Belt PRETENSIONER (Hatchback): Inspection

PRETENSIONER IS NOT ACTIVATED
1. Perform a diagnostic system check (see PRE-CHECK ).
2. Perform a visual check which includes the following items with the front seat outer belt removed from the vehicle.
  - Check the front quarter trim and center pillar lower garnish for cuts, cracks or marked discoloration.
  - Check for cuts and cracks in wire harness, and for chipping in connectors.

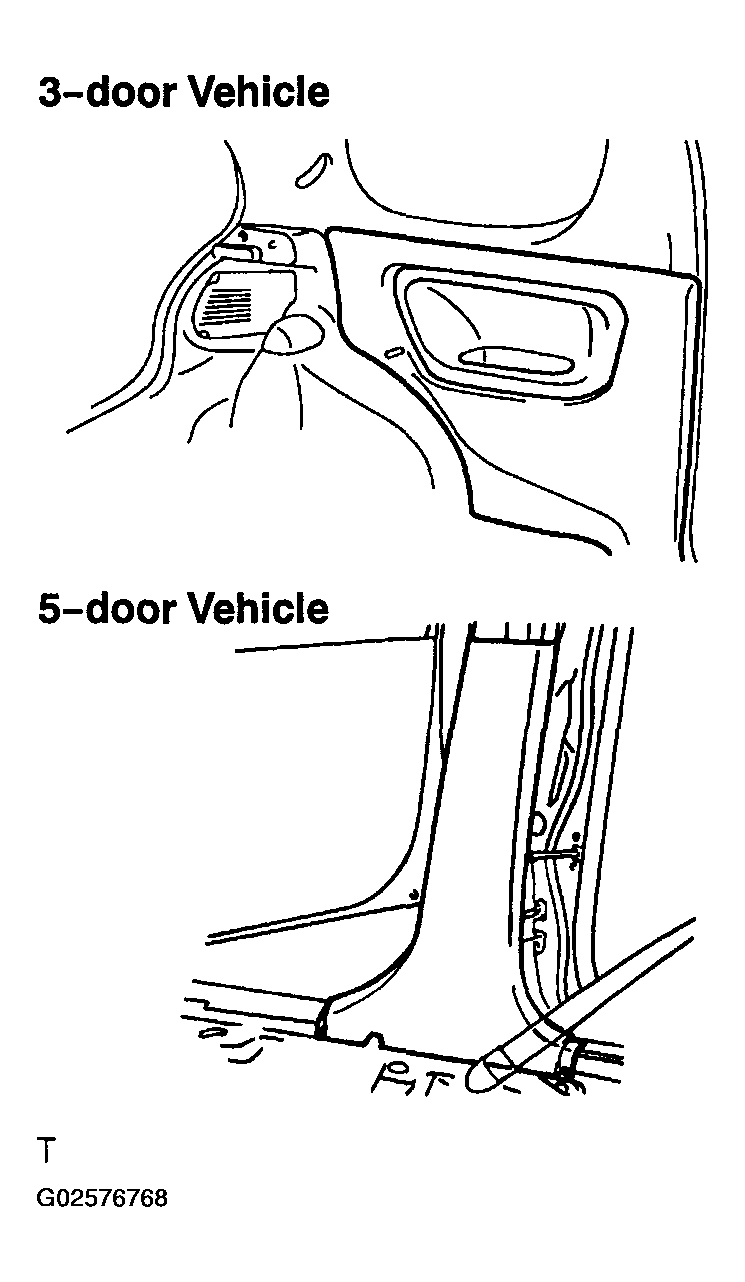

    Fig 1: Locating Front Quarter Trim
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Check for deformation of the quarter panel or center pillar.

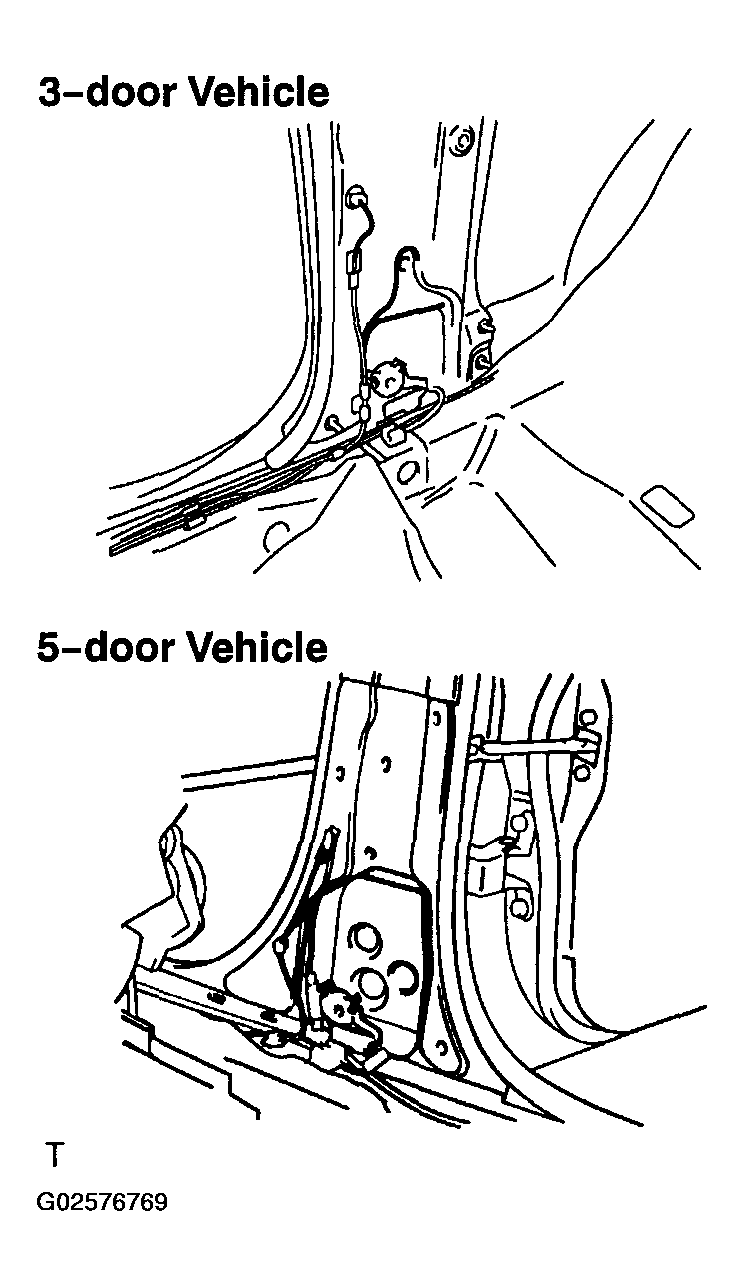

    Fig 2: Locating Quarter Panel Or Center Pillar
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Check for cuts and minute cracks in wire harness or marked discoloration on the front seat outer belt.
CAUTION: For removal and installation of the front seat outer belt, see REMOVAL and INSTALLATION .

Be sure to follow the correct procedure.
PRETENSIONER IS ACTIVATED
1. Perform a diagnostic system check (see PRE-CHECK ).

  Fig 3: Checking Cuts And Minute Cracks In Wire Harness Or Marked Discoloration On Front Seat Outer Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Perform a visual check which includes the following items with the front seat outer belt removed from the vehicle.
  - Check for deformation of the quarter panel or center pillar.
  - Check for damage on the connector and wire harness.
Fig 4: Locating Quarter Panel Or Center Pillar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
