Front Passenger Airbag Assembly: Removal

NOTE:
  • If the wiring connector of the SRS is disconnected and the ignition switch is in ON position, DTCs will be recorded.
  • Never use the airbag parts from another vehicle. When replacing parts, replace them with new parts.
NOTE: For step 2 to 7, refer to REMOVAL .
  1. DISCONNECT AIRBAG CONNECTOR
    1. Remove the glove compartment door.
    2. Remove the connector cover from the lower instrument panel.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    3. Disconnect the front passenger airbag connector.
  2. REMOVE CLUSTER FINISH PANEL
  3. REMOVE COMBINATION METER
  4. REMOVE FRONT PILLER GARNISHES
  5. REMOVE NO. 1 AND NO. 2 SPEAKER PANEL
  6. REMOVE CENTER CLUSTER FINISH PANEL
  7. REMOVE INSTRUMENT PANEL

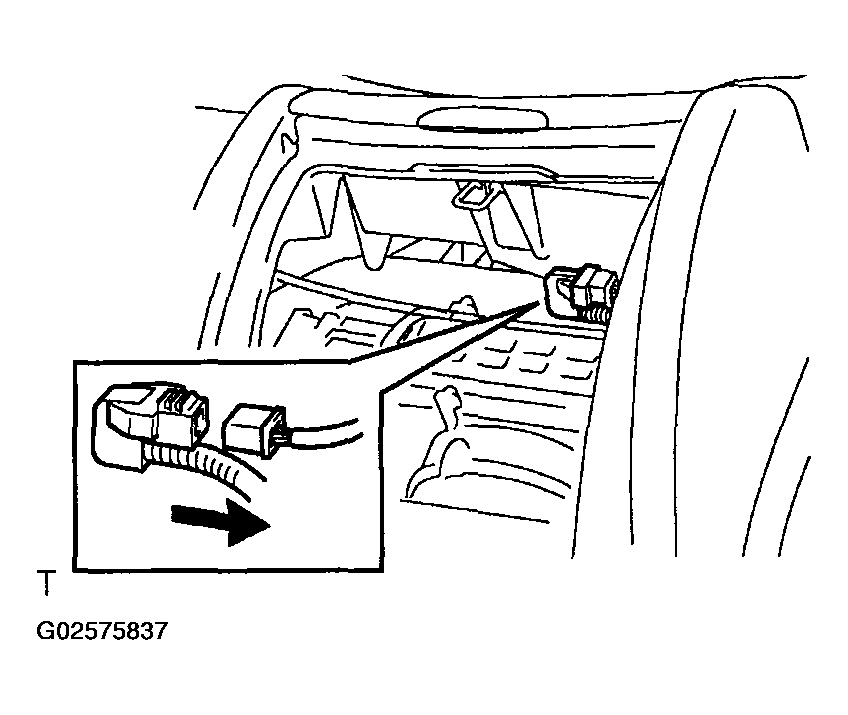

    Fig 1: Removing Airbag Connector
    G02575837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
    1. Remove the 2 nuts and pry up the 6 clips.
    2. Remove the front passenger airbag assembly.
    CAUTION:
    • Do not store the front passenger airbag assembly with the airbag deployment side facing downward.
    • Never disassemble the front passenger airbag assembly.

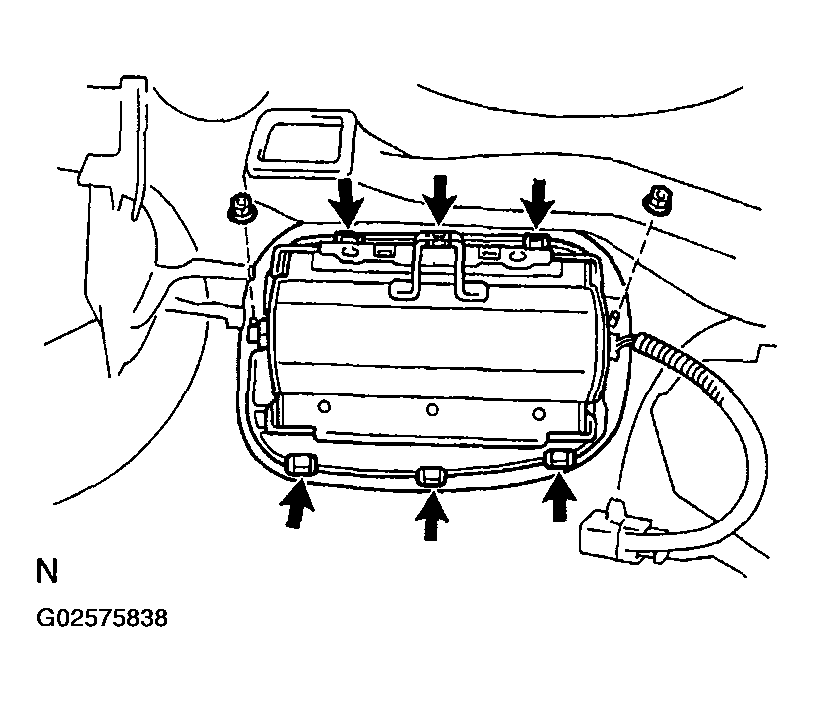

    Fig 2: Removing Front Passenger Airbag Assembly
    G02575838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
