Instrument Panel: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE
    1. Insert a screwdriver between the front door scuff plate and body to pry the scuff plate out.
      NOTE: Tape the screwdriver tip before use.
    2. Remove the other using the same procedures described above.
    Fig 1: Removing Front Door Scuff Plate
    G02576614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT PILLAR GARNISHES
    1. Insert a screwdriver between the front pillar garnish and body to pry the garnish out.
      NOTE: Tape the screwdriver tip before use.
    2. Remove the other using the same procedures described above.
    Fig 2: Locating Front Pillar Garnishes
    G02576615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COWL SIDE TRIM BOARD
    1. Remove the clip.
    2. Insert a screwdriver between the cowl side trim board and body to pry the trim board out.
      NOTE: Tape the screwdriver tip before use.
    3. Remove the other using the same procedures described above.
  4. REMOVE STEERING WHEEL PAD (See  REMOVAL  )
    Fig 3: Removing Cowl Side Trim Board
    G02576616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STEERING WHEEL (See  REMOVAL  )
  6. REMOVE COLUMN UPPER AND LOWER COVER (See  REMOVAL  )
  7. REMOVE SPIRAL CABLE (See  REMOVAL  )
  8. REMOVE WIPER AND WASHER SWITCH
  9. REMOVE LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH
  10. REMOVE PANEL

    Remove the clip and panel.

  11. REMOVE NO.1 SPEAKER PANEL AND NO. 2 SPEAKER PANEL
    1. Remove the No. 2 speaker panel as shown in the illustration.
    2. Remove the other using the same procedures described above.
    Fig 4: Removing Speaker Panel
    G02576617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE GLOVE COMPARTMENT DOOR
    1. Open the glove compartment door.
    2. Push both sides in and pull off the glove compartment door.

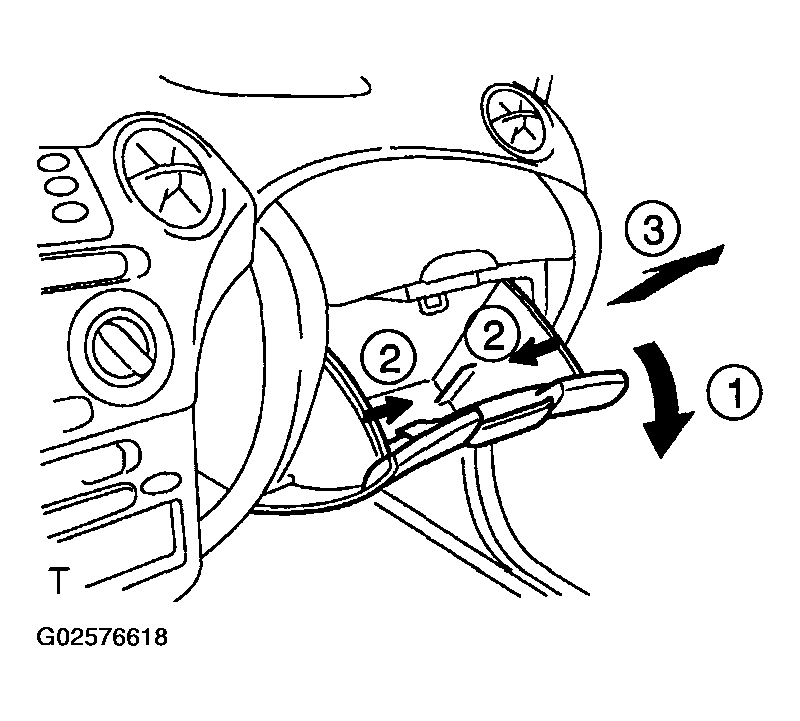

    Fig 5: Removing Glove Compartment Door
    G02576618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE UPPER CLUSTER FINISH PANEL
    1. Using a screwdriver, remove the upper cluster finish panel as shown in the illustration.
      NOTE: Tape the screwdriver tip before use.
    2. Disconnect the connector.
    Fig 6: Locating Upper Cluster Finish Panel
    G02576619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE METER
    1. Remove the 2 screws.
    2. Disconnect the connectors, then remove the meter.
    Fig 7: Removing Screws Of Meter
    G02576620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CLUSTER FINISH PANEL
    1. Remove the 2 knobs.
    2. Remove the 2 screws.
    3. Using a screwdriver, remove the cluster finish panel.
      NOTE: Tape the screwdriver tip before use.
    4. Disconnect the connectors.
    5. w/ Multi-display:

      Remove the 2 screws and multi-display.

    6. w/o Multi-display:

      Remove the 2 screws stereo opening cover.

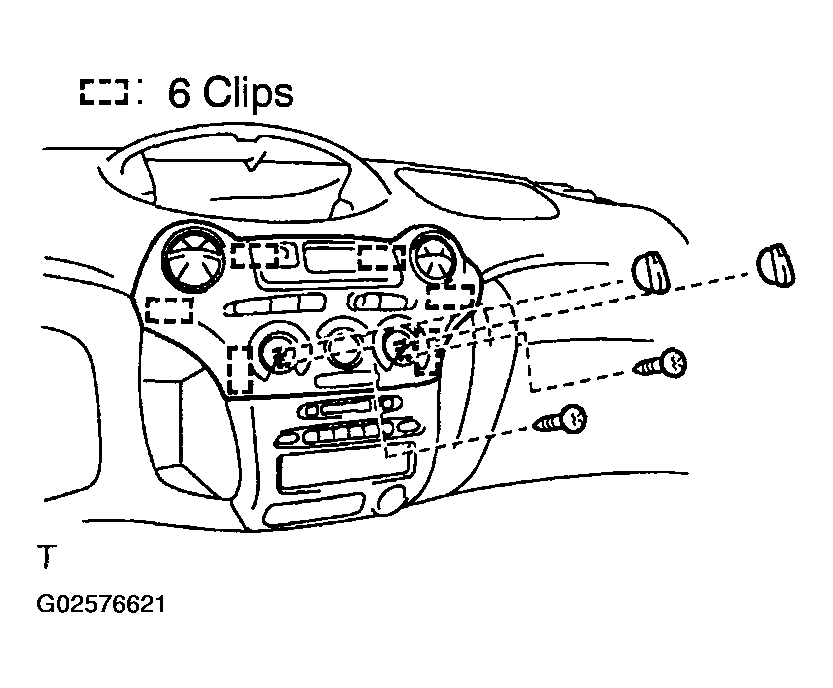

    Fig 8: Removing Screw Of Cluster Finish Panel
    G02576621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE INSTRUMENT PANEL
    1. Remove the bolt holding the front passenger airbag assembly to the body.

      Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

      NOTE:
      • Work must be started more than 90 seconds after the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

        (The SRS is equipped with a back-up power source. If work is started within 90 seconds from disconnecting the negative (-) terminal cable of the battery, the SRS may deploy.)

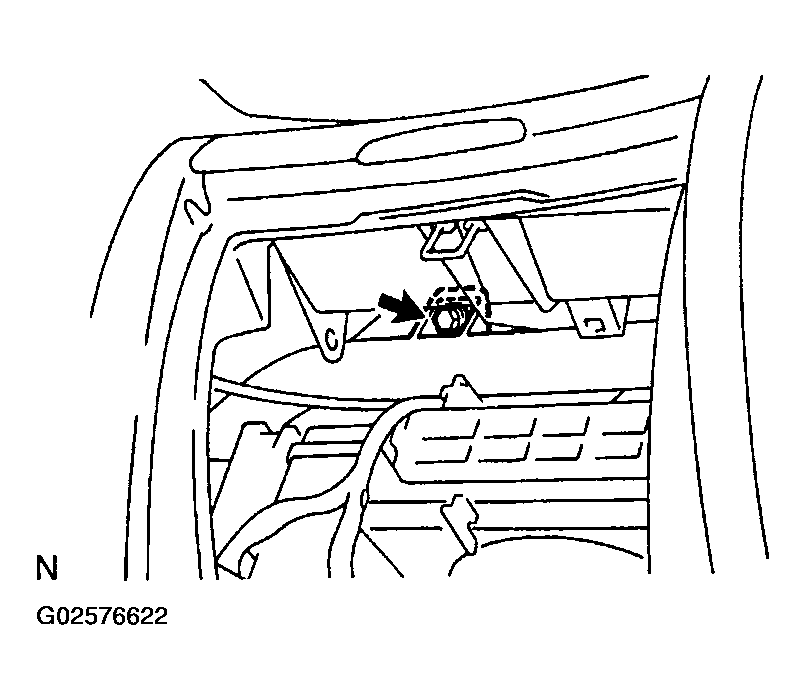

      Fig 9: Removing Bolt Holding Front Passenger Airbag Assembly To Body
      G02576622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the connector cover from the lower instrument panel.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    3. Disconnect the passenger airbag connector.
    4. Remove the screws and instrument panel as shown in the installation below.

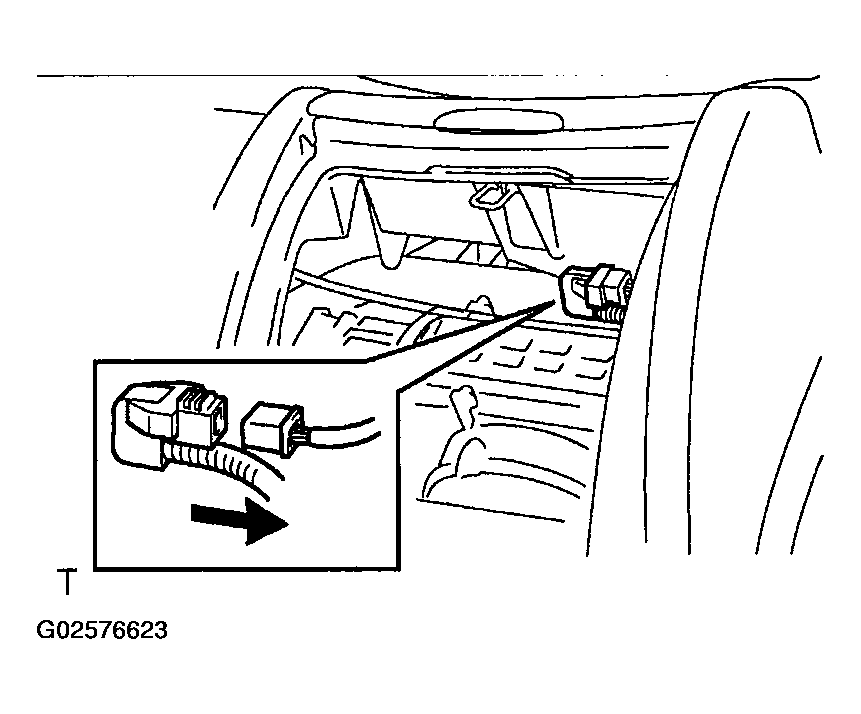

    Fig 10: Removing Screws Of Instrument Panel
    G02576623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

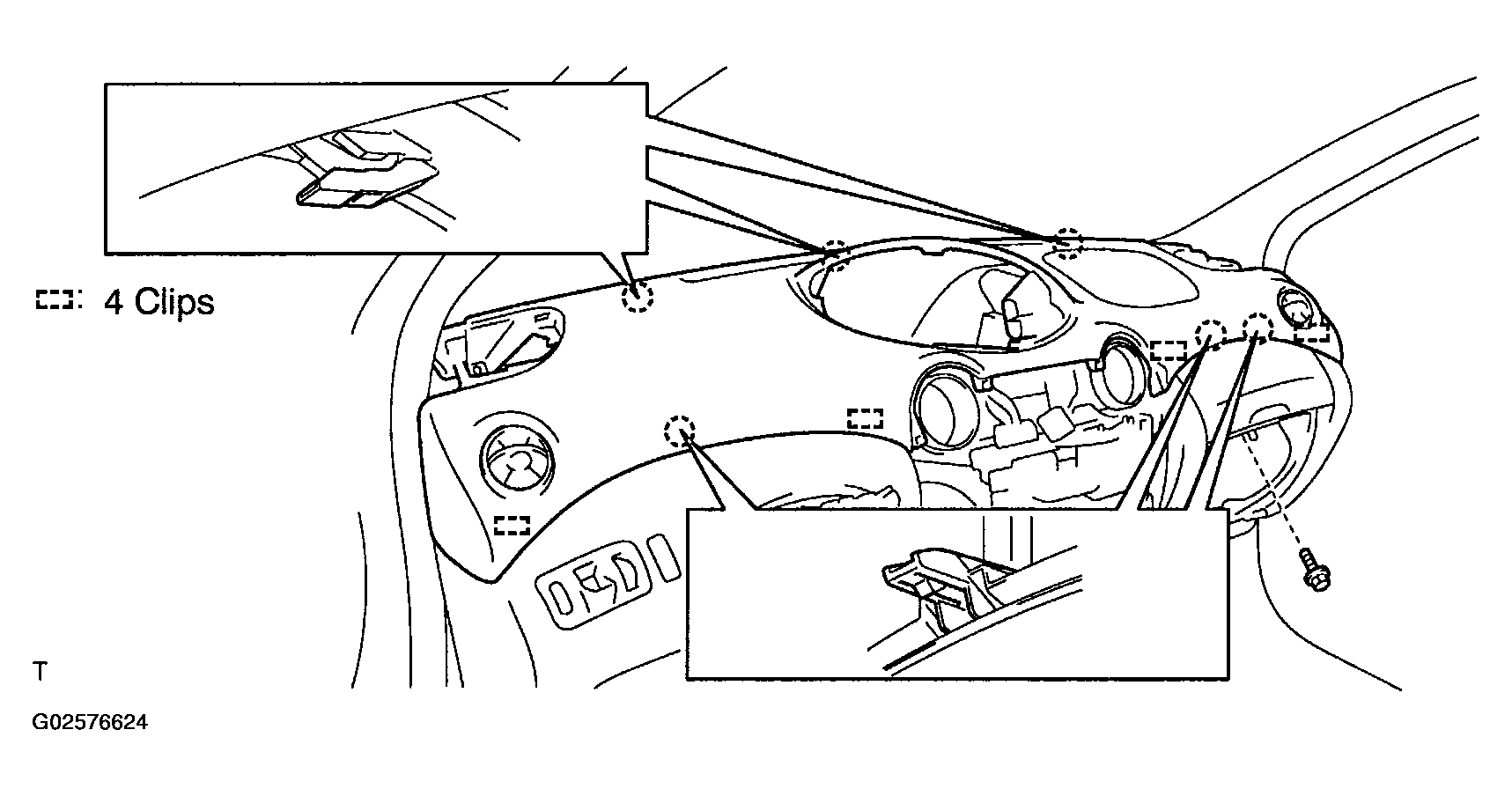

    Fig 11: Removing Screws Of Instrument Panel
    G02576624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE DEFROSTER NOZZLE
  18. REMOVE FRONT ASH RECEPTACLE BOX
  19. REMOVE HEATER CONTROL ASSEMBLY (See  REMOVAL  )

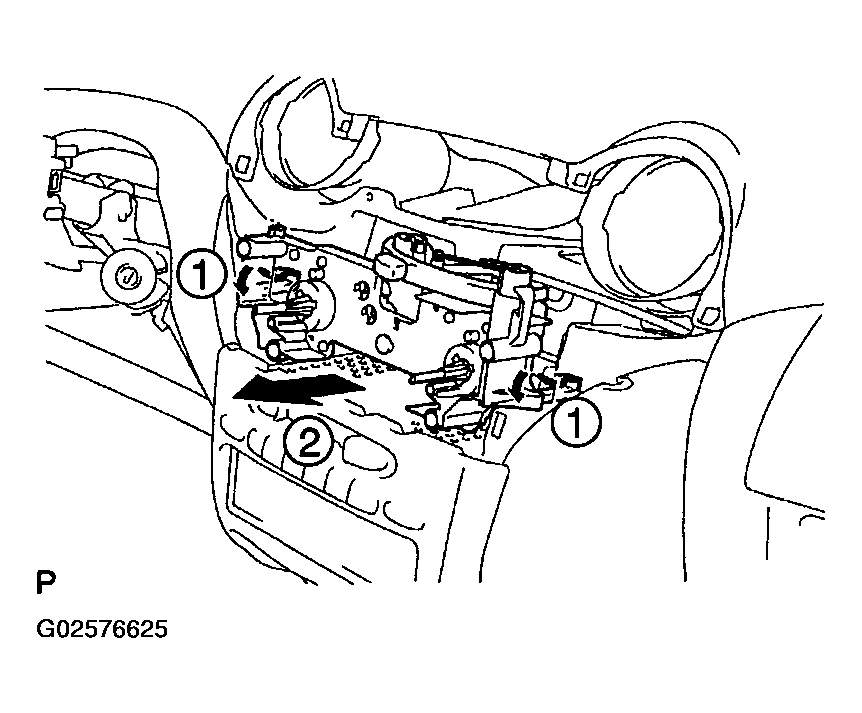

    Fig 12: Identifying Heater Control Assembly
    G02576625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE RADIO ASSEMBLY
    1. Remove the 4 screws.
    2. Disconnect the connectors, then remove the radio assembly.
  21. REMOVE LOWER INSTRUMENT PANEL
    1. Remove the hood lock release lever.
    2. Remove the screws, bolts and nuts.
    3. Disconnect the connectors.
    4. Remove the lower instrument panel.

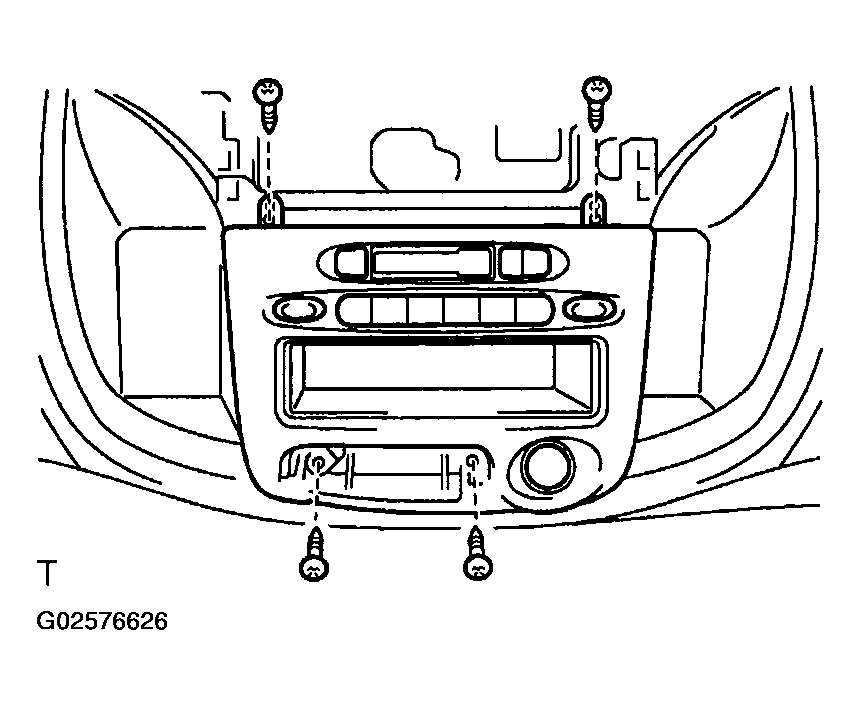

      Fig 13: Removing Screw Of Radio Assembly
      G02576626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

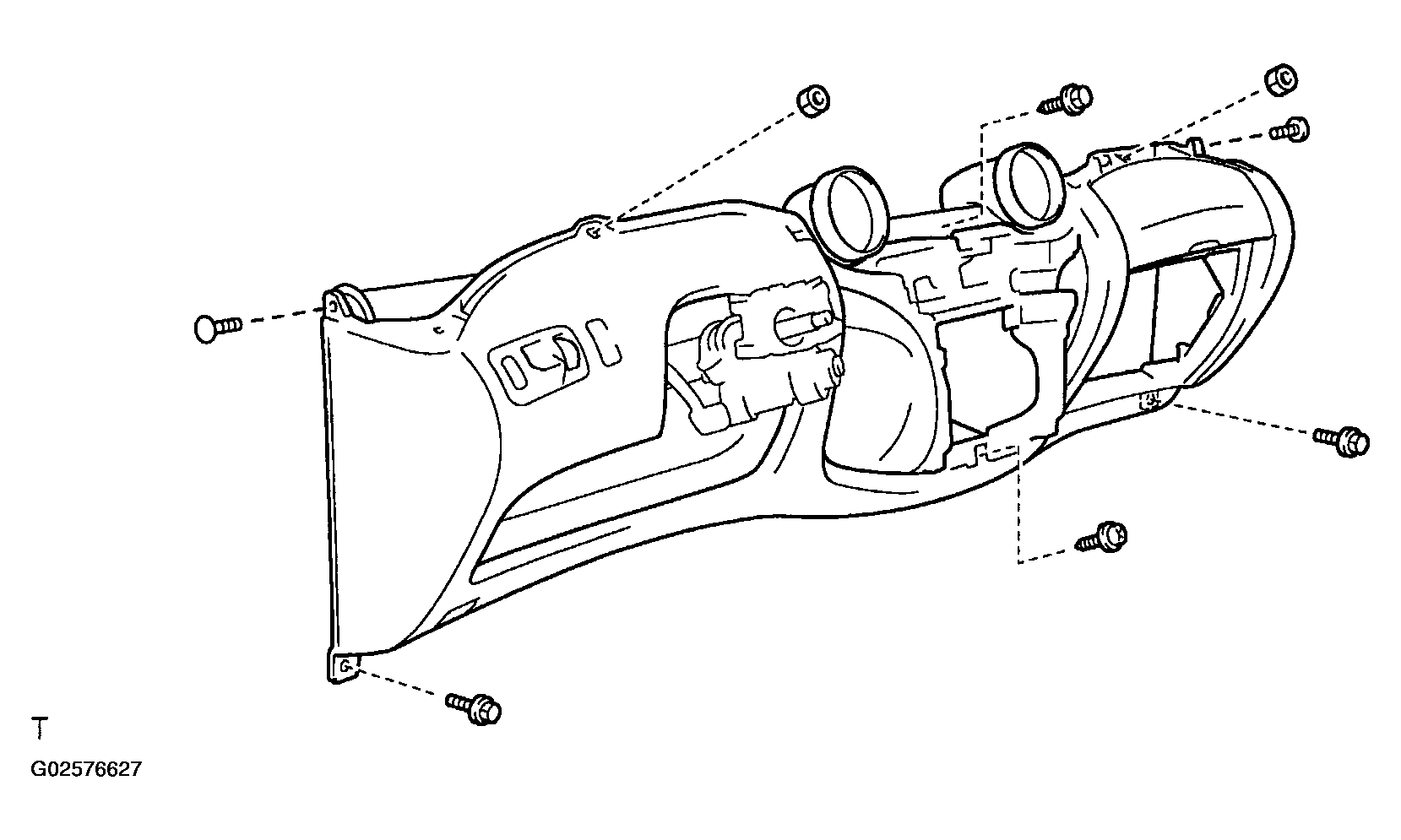

    Fig 14: Removing Screw Of Lower Instrument Panel
    G02576627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE LOWER PAD INSERT

    Remove the bolt, 2 nuts and lower pad insert.

  23. REMOVE STEERING COLUMN (See  REMOVAL  )
  24. REMOVE REAR CONSOLE BOX
    1. Remove the shifting hole cover.
    2. Disconnect the connector of the base switch.
    3. Remove the console carpet.
    4. Remove the screw and rear console box.
  25. REMOVE INSTRUMENT PANEL TO FLOOR BRACE

    Remove the bolt and nut, then remove the instrument panel to floor brace.

    Fig 15: Removing Bolts Of Instrument Panel To Floor Brace
    G02576628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REINFORCEMENT
    1. Remove the 6 bolts.
    2. Disengage the wire harness clamps.
    3. Remove the reinforcement.
      NOTE: Be careful not to damage the body and wire harness.

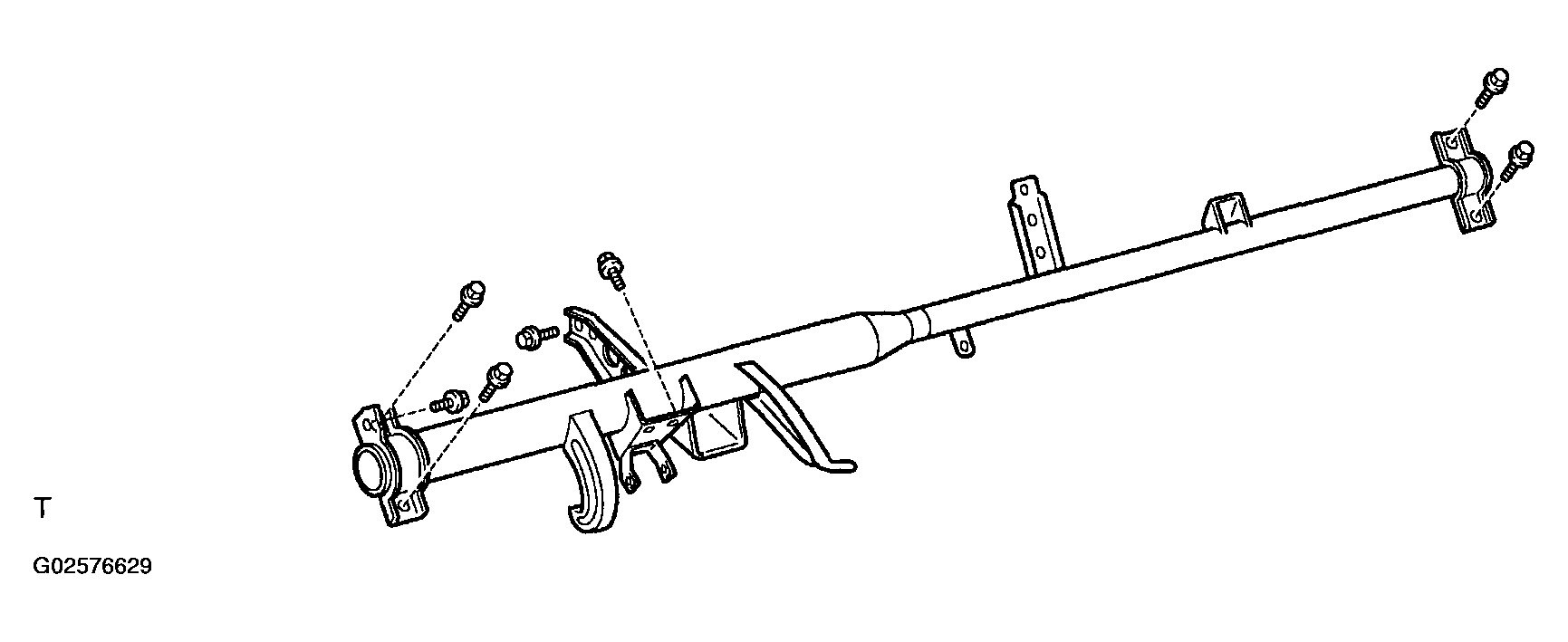

      Fig 16: Removing Bolts Of Reinforcement
      G02576629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the screw and door lock control.
    5. Remove the screw and wireless door lock control.
