Heater Control Assembly On-Vehicle Inspection: Removal

  1. REMOVE CLUSTER FINISH PANEL (Integration panel)
    1. Using pliers, pull out the 2 knobs.
      NOTE: Cover the knobs with a cloth, when pulling the knobs.
    2. Remove the 2 screws.
    3. Using a screwdriver, release the 6 fitting clips and pull out the cluster finish panel, then disconnect the connectors.
    Fig 1: Removing Cluster Finish Panel
    G02576311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Tape the screwdriver tip before use.
  2. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
  3. REMOVE CLUSTER PANEL (Combination meter)
  4. REMOVE COMBINATION METER
  5. DISCONNECT HEATER CONTROL CABLES

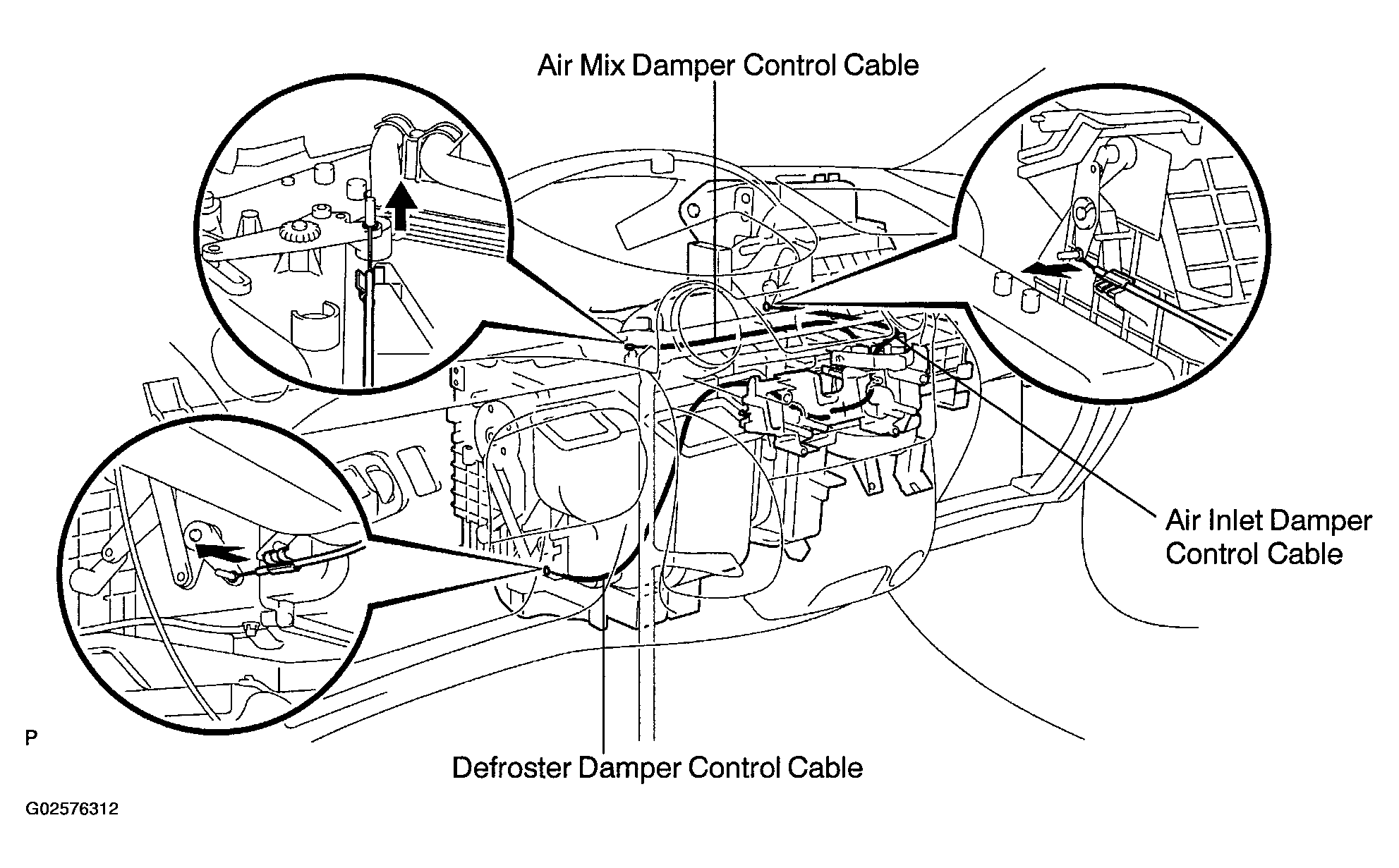

    Fig 2: Disconnecting Heater Control Cables
    G02576312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HEATER CONTROL ASSEMBLY

    Release the 2 claws and pull out the heater control assembly.

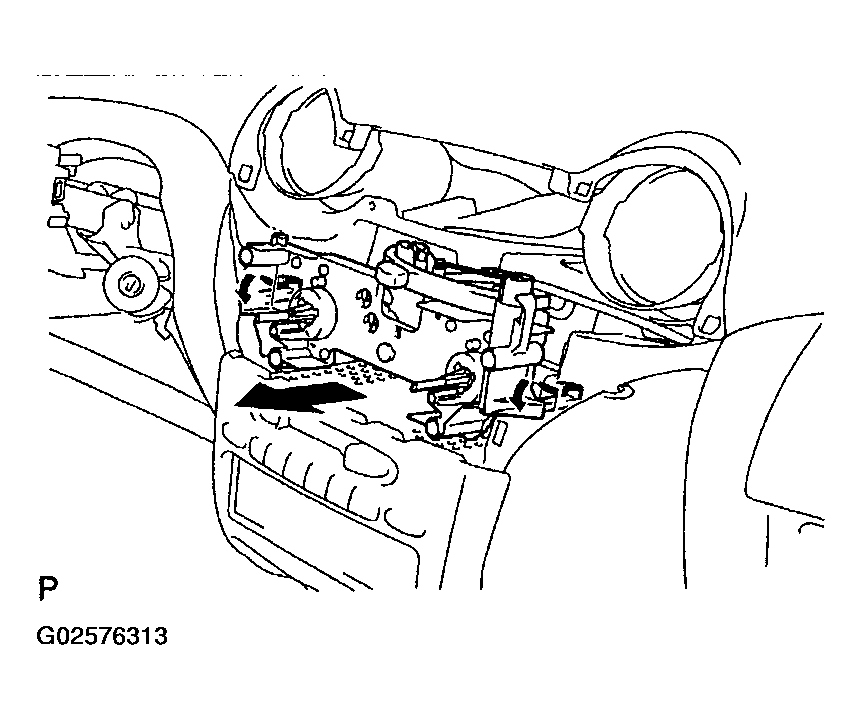

    Fig 3: Removing Heater Control Assembly
    G02576313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
